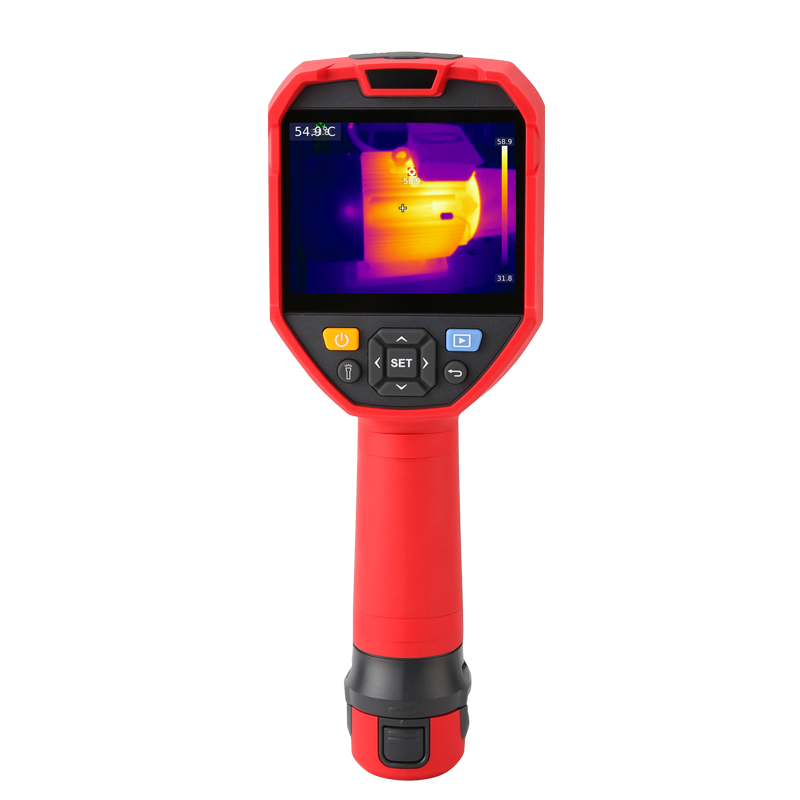

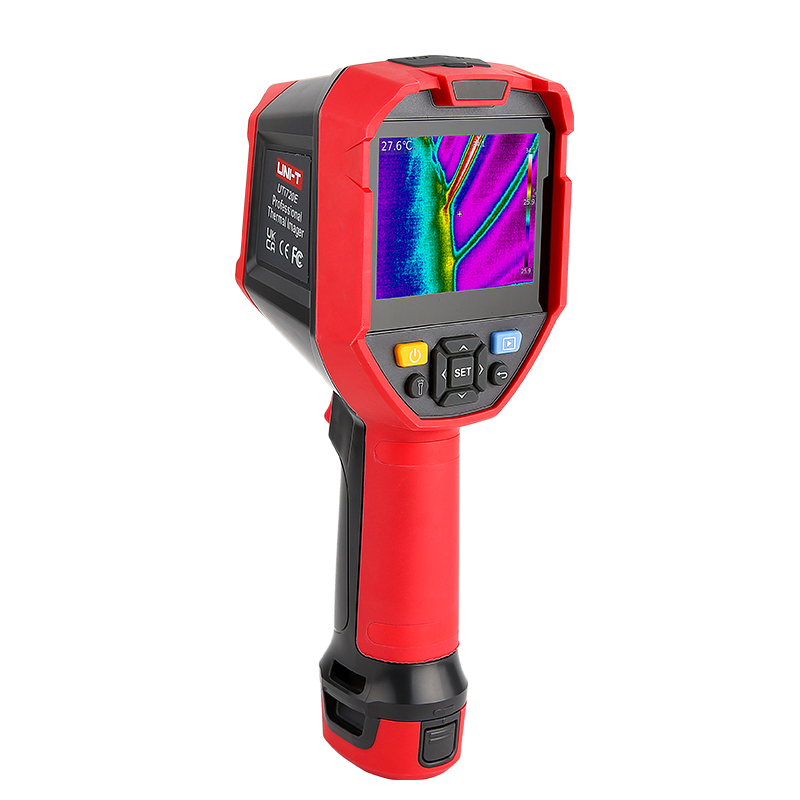

UTi720E is an advanced thermal camera with Wi-Fi capability. Its large 3.5” IPS display screen can clearly display 256×192 thermal resolution 2MP visual camera, or a blended image of both. It can measure temperature from -20℃ to 550℃. UTi720E’s 5200mAh detachable battery pack is convenient for easy and quick battery change, allowing continuously work for long periods of time.
Features:
3.5” IPS display screen (640×480 Pixels)
IR resolution: 256×192
Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022 ℉
Auto alarm for high/low temperature
Auto tracking for hot spot/cold spot
On screen analyzer : 5 Points/1 Line/3 Rectangles/3 Circles
Image capture
Digital camera resolution: 2MP
Digital zoom: 2x, 4x
Image modes: Thermal,Visual image,Fusion,PIP
Color palettes: 7 (White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
Isotherm (Auto/Ratio/Below/Above/Section/Manual)
LED flashlight
Wi-Fi connection through Mobile App
QR Code – photo management
PC software: analysis and real-time image projection
5200mAh replaceable battery pack (Type-C rechargeable)
1/4”tripod mounting hole
IP54
2m drop proof
Applications:
PCBA inspection, motor inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection etc.
