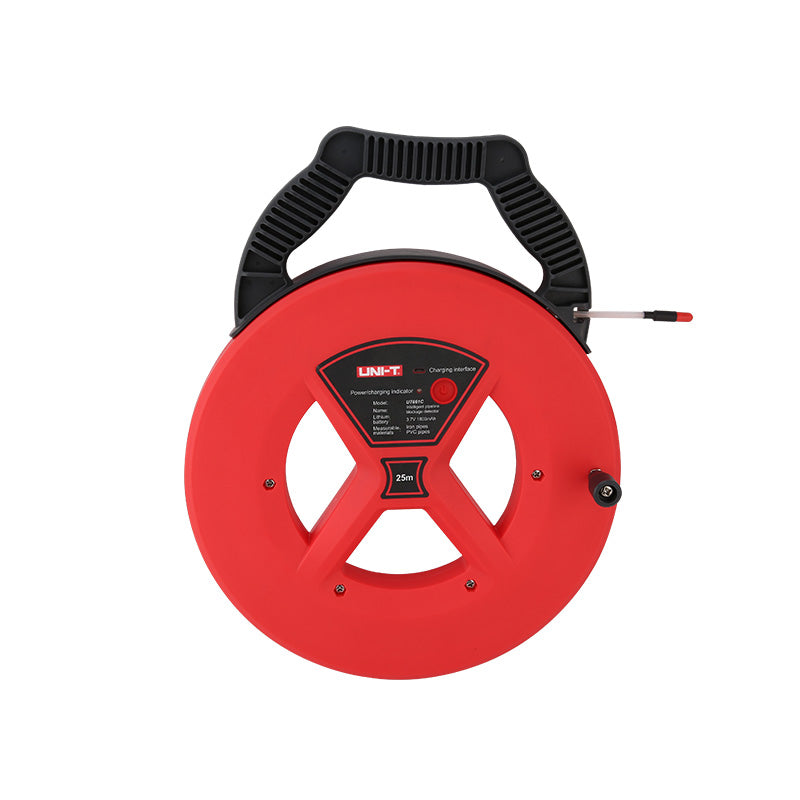

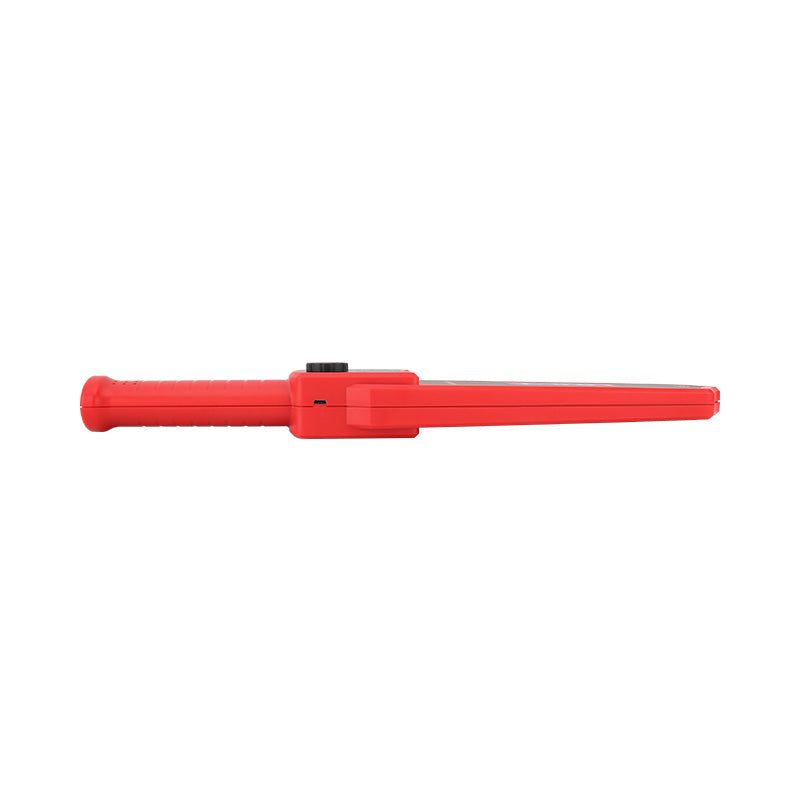

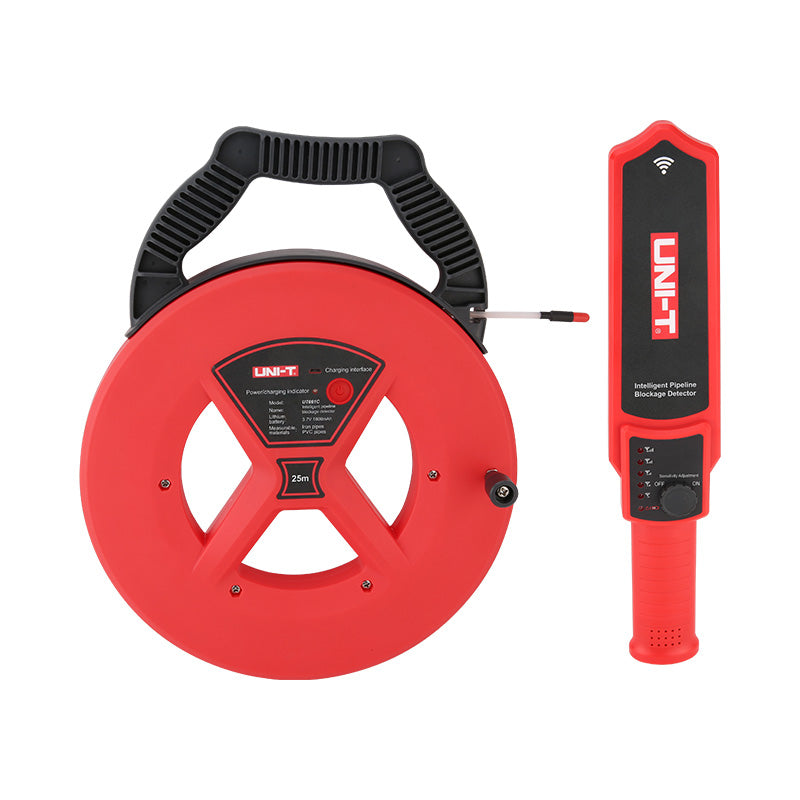

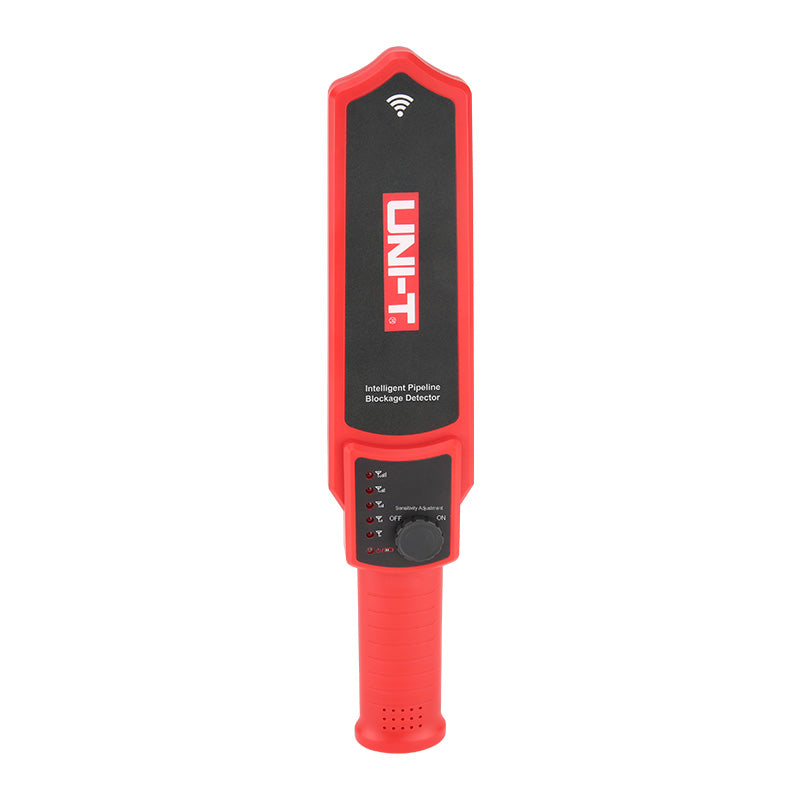

The UNI-T UT661D is a professional pipe blockage detector designed to locate clogs in metal and PVC pipes up to 35 meters long and 50 cm deep. It features an IP67 waterproof probe, adjustable sensitivity, and both audible (buzzer) and visual (flash) indicators for precise, rapid, and accurate blockage detection in pipelines.
Key Specifications for UT661D:
Pipeline Detection Length: Up to 35 meters.
Maximum Detection Depth: 50 cm.
Pipe Materials: Suitable for steel, iron, and PVC.
Probe Waterproof Grade: IP67.
Power Supply: Transmitter (working current 230~310mA); Receiver (standby <40mA, max 150~450mA).
Operating Temperature/Humidity: -20°C~60°C, 10~80%RH.
Signals: Integrated buzzer (93dB at 1cm, 75dB at 0.5m) and flashing LED.
Weight: Transmitter approx. 1.42 kg; Receiver approx. 0.26 kg.
Battery Life: Approximately 10 hours.
Key Features:
Adjustable Sensitivity: The receiver sensitivity can be adjusted to narrow down the exact location of the clog.
Signaling: Uses both sound and light to indicate the blockage.
Retractable Wire: Features a mechanism to easily retract the signal wire
