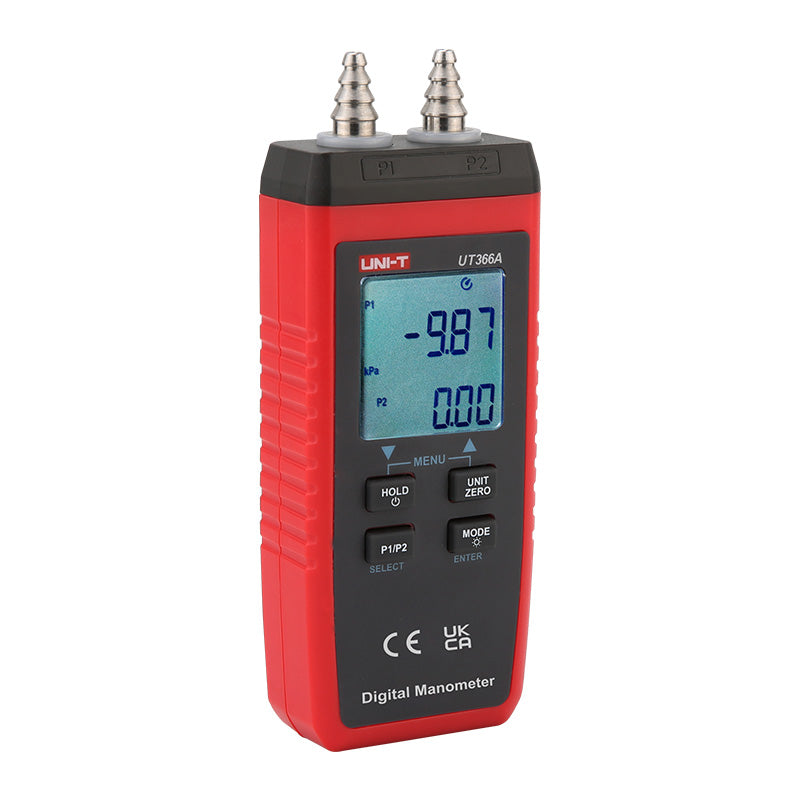

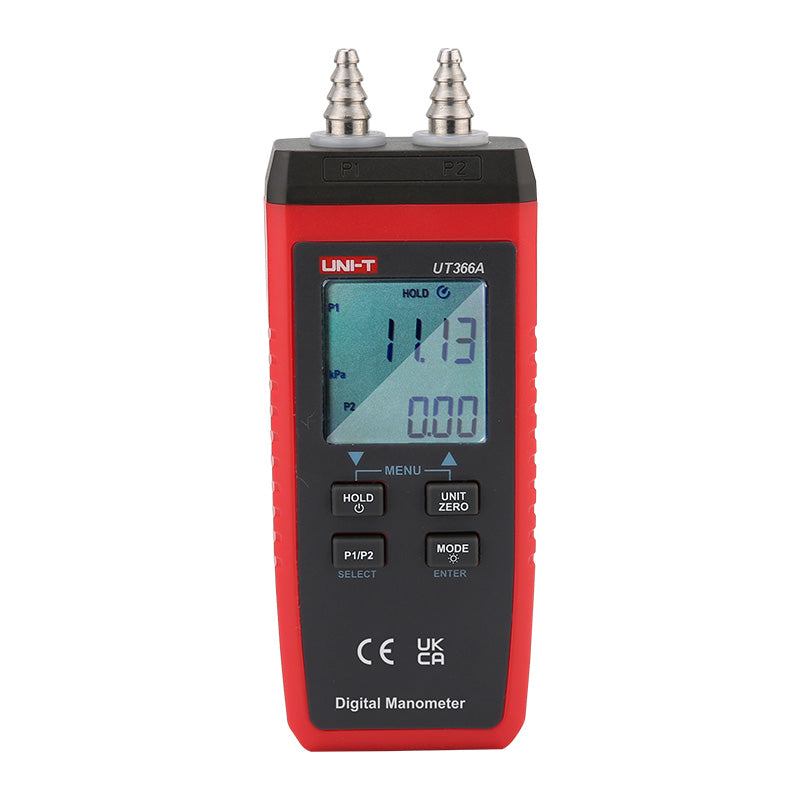

The UNI-T UT366A is a compact, handheld digital manometer designed for measuring gauge and differential pressure (P1/P2) in HVAC, industrial, and plumbing applications, with a range of ±15 kPa (±2.175 psi), ±0.5% FS accuracy, and optional pitot tube wind speed measurement. Key features include 12 selectable units, LED pressure indicators, and data hold/MAX/MIN modes.
Key Technical Specifications:
Measurement Range: ±15.00 kPa / ±150.0 mbar / ±0.150 bar / ±2.175 psi / ±112.5 mmHg / ±60.29 inH₂O.
Accuracy: ±0.5% FS (@25°C)
Units of Measurement: kPa, mbar, bar, psi, mmHg, inH₂O, inHg, ozin², kgcm², ftH₂O, mmH₂O, hPa, m/s, fpm.
Resolution: 0.01 kPa, 0.1 mbar, 0.001 psi, 0.001 bar
LED Indication: Green for positive pressure, Red for negative pressure
Data Management: Data hold, MAX/MIN/AVG modes, and internal storage
Display: FSTN LCD with white backlight
Power: Auto power off (5 minutes), low battery indication.
