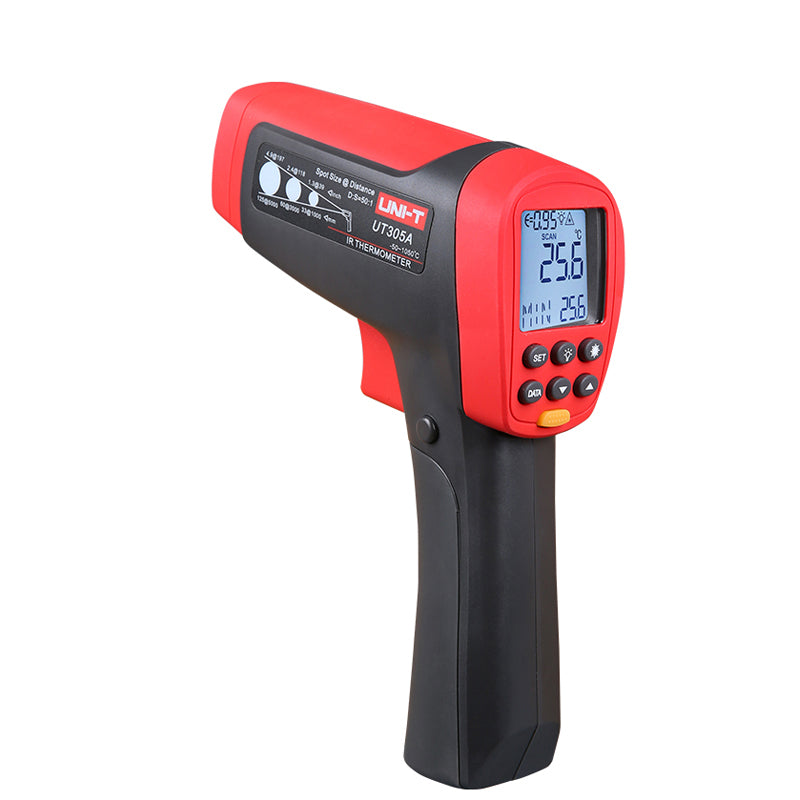

The UNI-T UT305A is a professional, high-precision infrared thermometer designed for industrial use, featuring a -50°C to 1050°C range (-58°F to 1922°F), 50:1 D:S ratio, and ±1.8°C accuracy. It includes USB data transmission, 99-set data logging, adjustable emissivity, and rapid 250ms response time, suitable for HVAC and electrical maintenance.
Key Technical Specifications (UT305A):
Temperature Range: -50°C to 1050°C (-58°F to 1922°F).
Accuracy: ±1.8°C or ±1.8% of reading.
Distance to Spot Ratio (D:S): 50:1.
Resolution: 0.1°C (0.1°F).
Emissivity: 0.10 ~ 1.0 Adjustable.
Response Time: 250ms (95% of reading).
Features & Functionality:
Data Storage: 99 sets.
Interface: USB for data transmission to PC.
Laser: Class 2 (II) laser, 630nm ~ 670nm, <1mW.
Modes: MAX, MIN, DIFF, AVG.
Display: LCD with backlight (33mm x 38mm).
Power: 9V Battery (6F22) or USB power.
