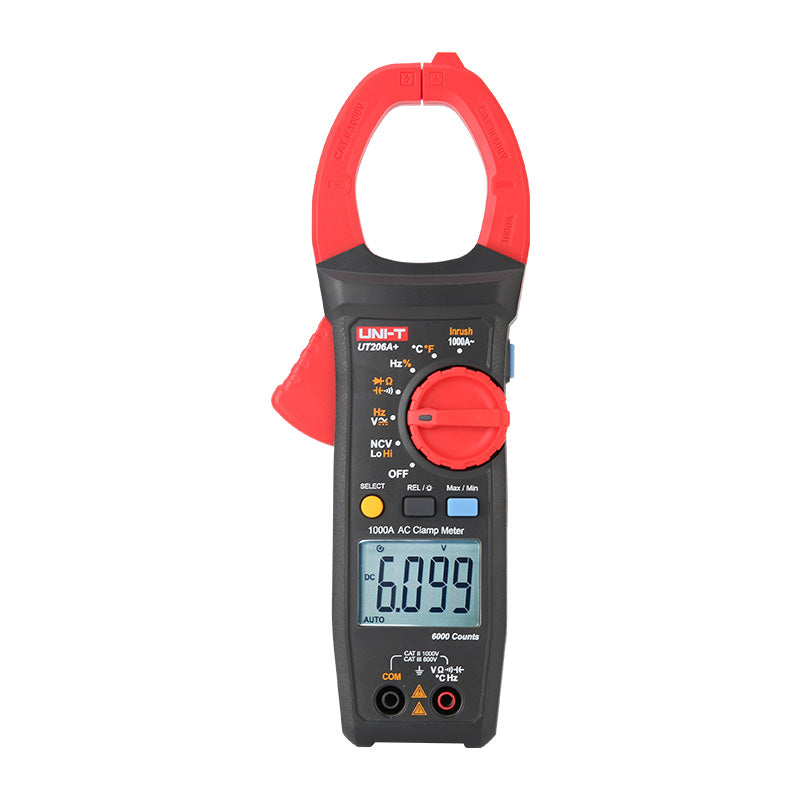

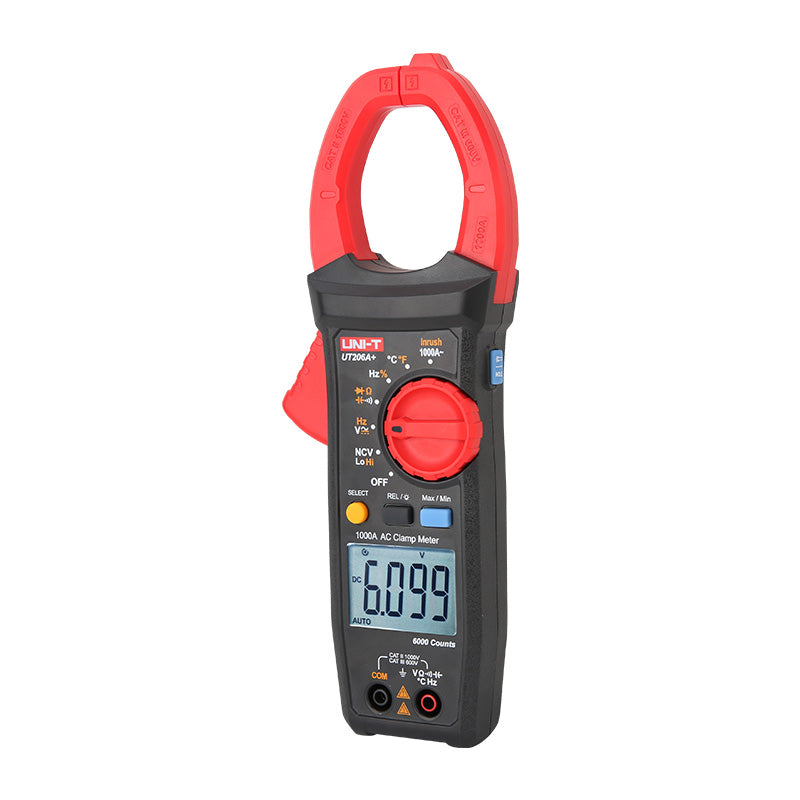

1000A AC Clamp Current Meter Ammeter 1000V Voltmeter Voltage Frequency (UT205A+/Ut206A+)

The UNI-T UT205A+ is a 1000A AC digital clamp meter with a 45mm jaw opening, featuring true RMS, 4000-count display, and CAT II 1000V/CAT III 600V safety rating. It measures 1000V AC/DC voltage, 40MΩ resistance, and 40mF capacitance, with added functionality for frequency, duty cycle, continuity, diode tests, and backlight/flashlight.

Key Specifications & Features:
AC Current (A): 1000A ±(1.5%+5)
AC Voltage (V): 1000V ±(1.0%+2)
DC Voltage (V): 1000V ±(0.7%+3)
Capacitance (F): 40mF ±(4%+5)
Frequency (Hz): 10Hz~10MHz ±(0.1%+4)
Jaw Opening: 45mm
Display Count: 4099
Safety Rating: CAT II 1000V/CAT III 600V

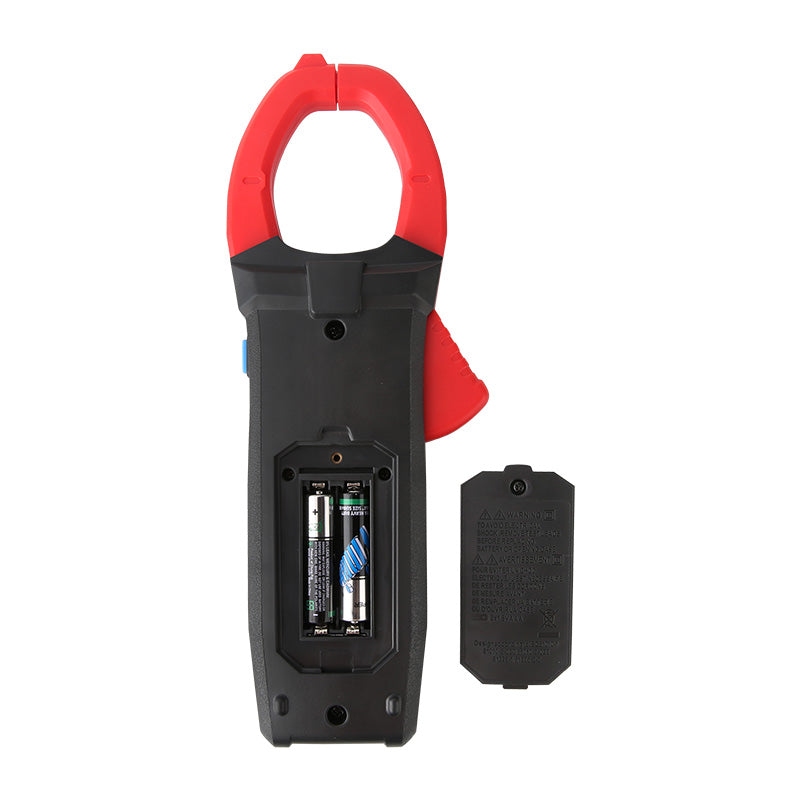

Power: 2 x AAA 1.5V batteries
Key Functions: Auto range, True RMS, MAX/MIN, Data Hold, Relative Mode, Continuity, Diode, Duty Cycle, NCV.
