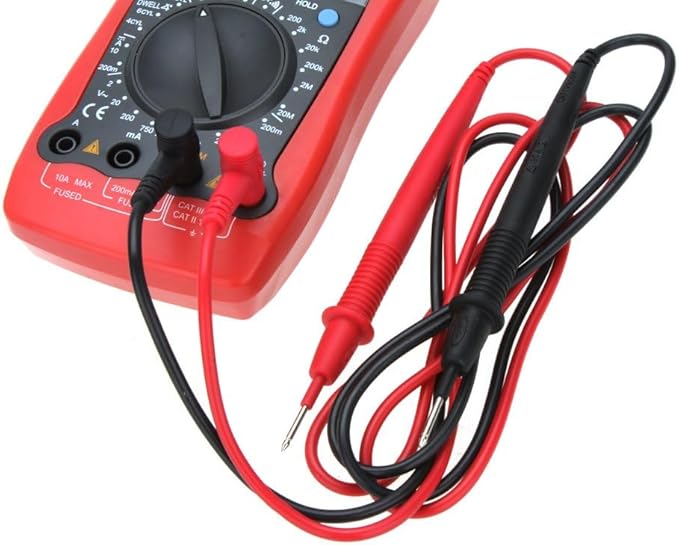

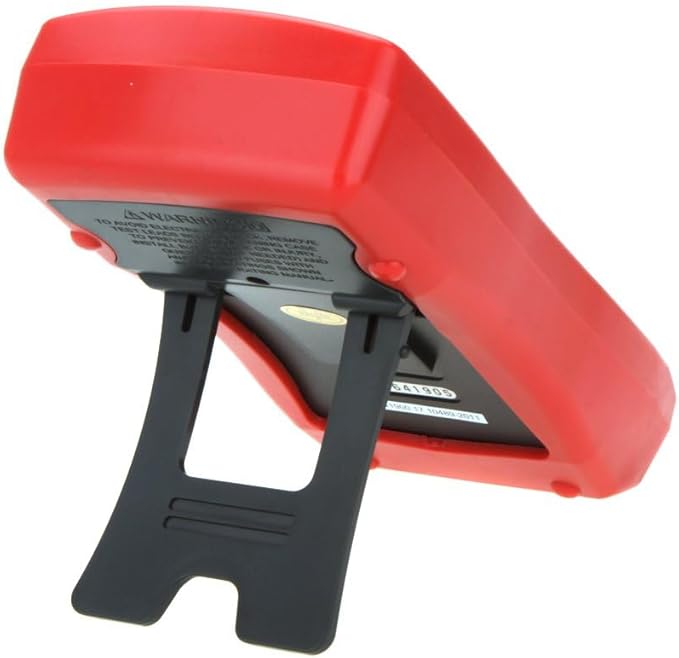

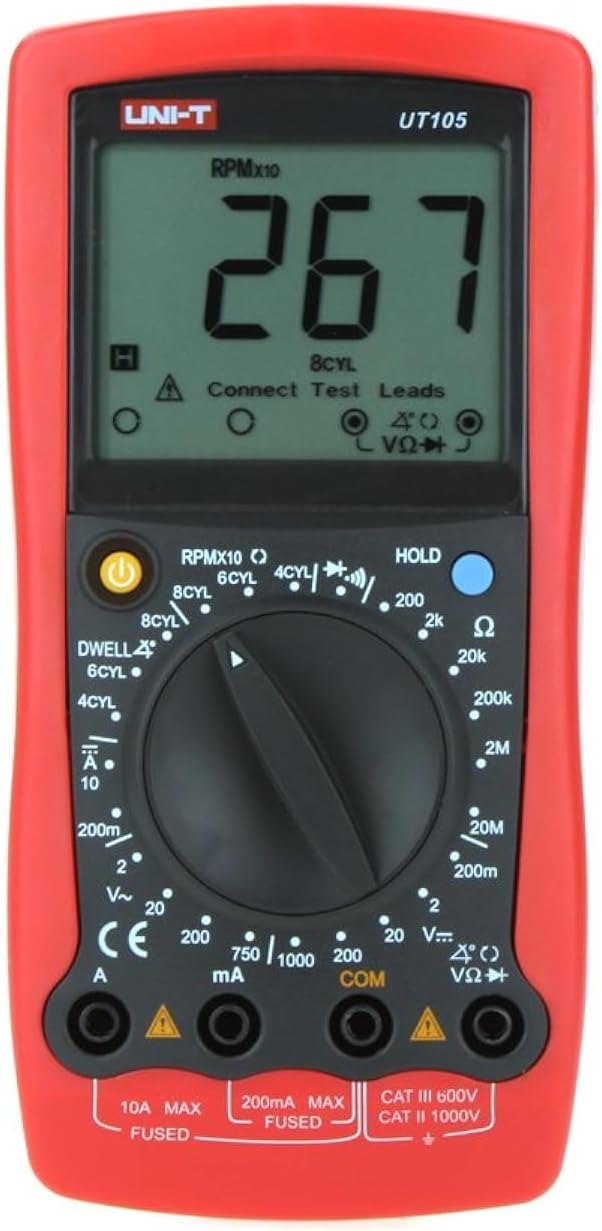

UNI-T UT105 Automobile Multimeter

The UNI-T UT105 is a 3½ digit handheld, battery-powered digital automotive multimeter with a 1999-count LCD screen (60x54 mm). It features 1000V DC/750V AC voltage, 10A DC current, 20MΩ resistance, and specialized automotive diagnostics including dwell angle and RPM (x10).

Key Specifications:
DC Voltage: 200mV / 2V / 20V / 200V / 1000V (Accuracy: ±0.5%+5).
AC Voltage: 2V / 20V / 200V / 750V (Accuracy: ±0.8%+5).
DC Current: 200mA / 10A (Accuracy: ±0.8%+5).
Resistance: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ (Accuracy: ±0.8%+5).

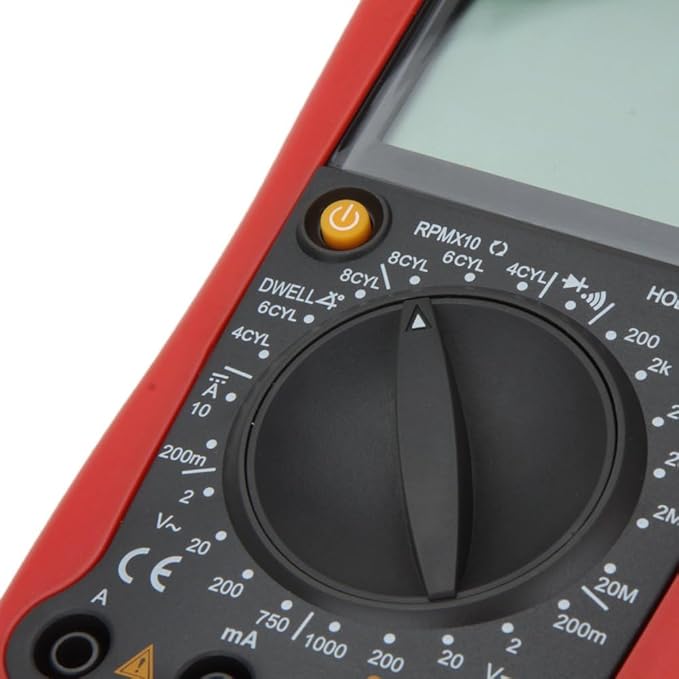

Dwell/Tach: 4CYL / 6CYL / 8CYL (Accuracy: ±3%+5).

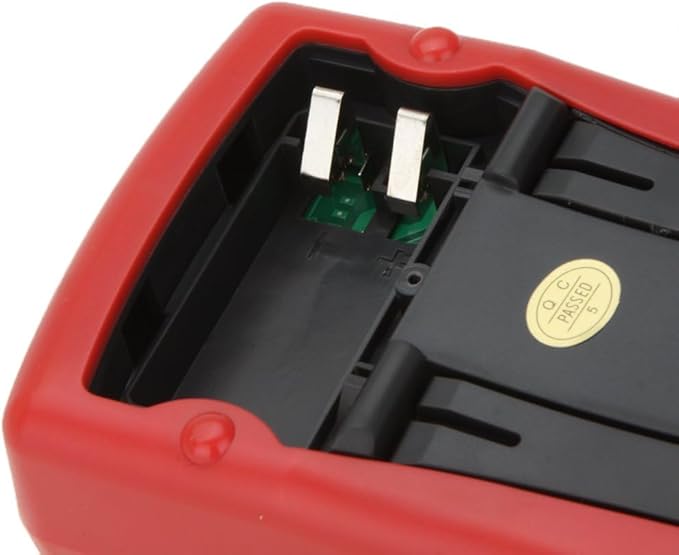

Safety/General: Input impedance 10MΩ, 9V battery (6F22) power.

Features & Dimensions:
Dimensions: 179 x 88 x 39 mm.
Weight: 351 g.
Functions: Diode test, continuity buzzer, low battery display, and data hold.
Applications: Ideal for troubleshooting automotive electrical systems, engines, and batteries.
