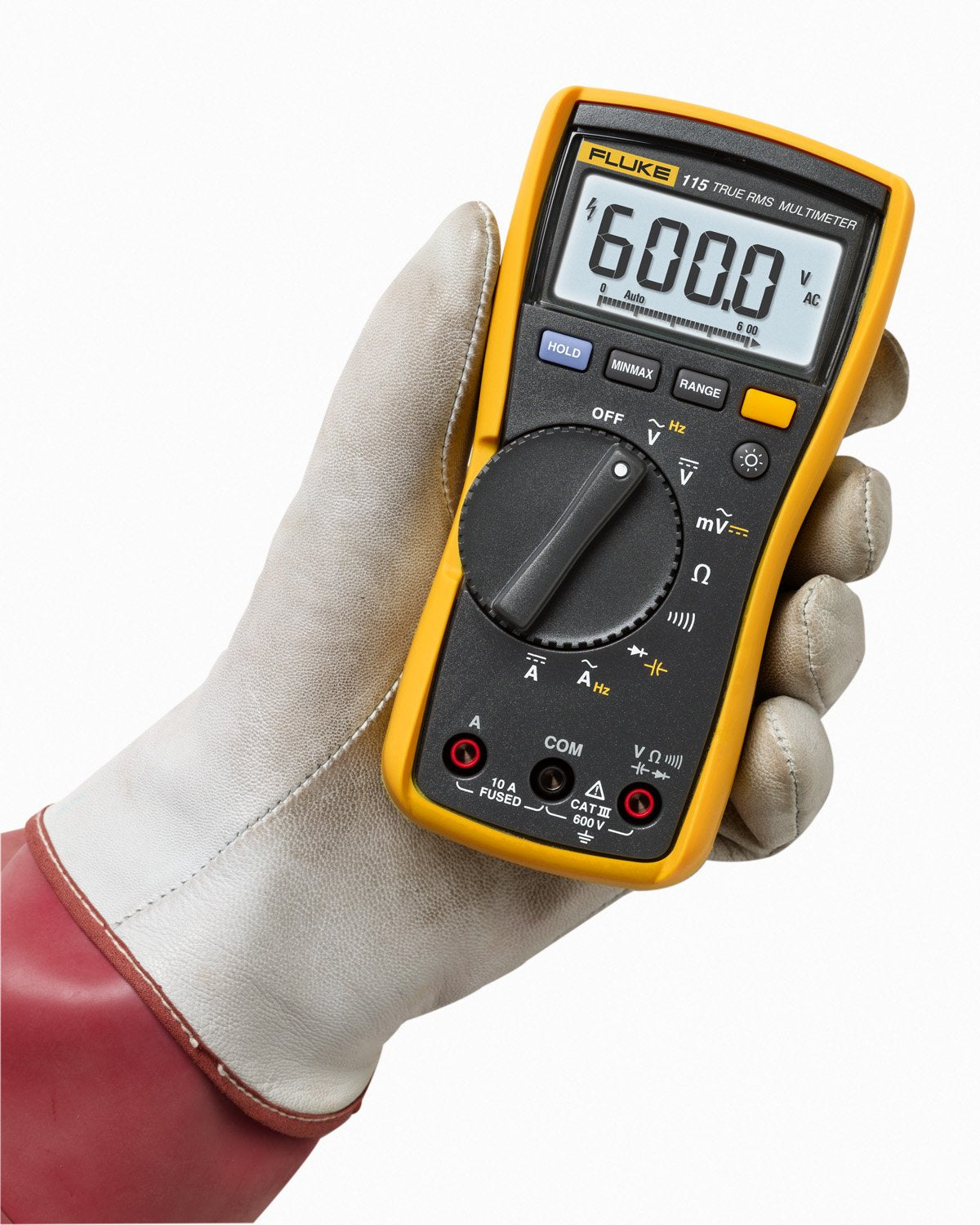

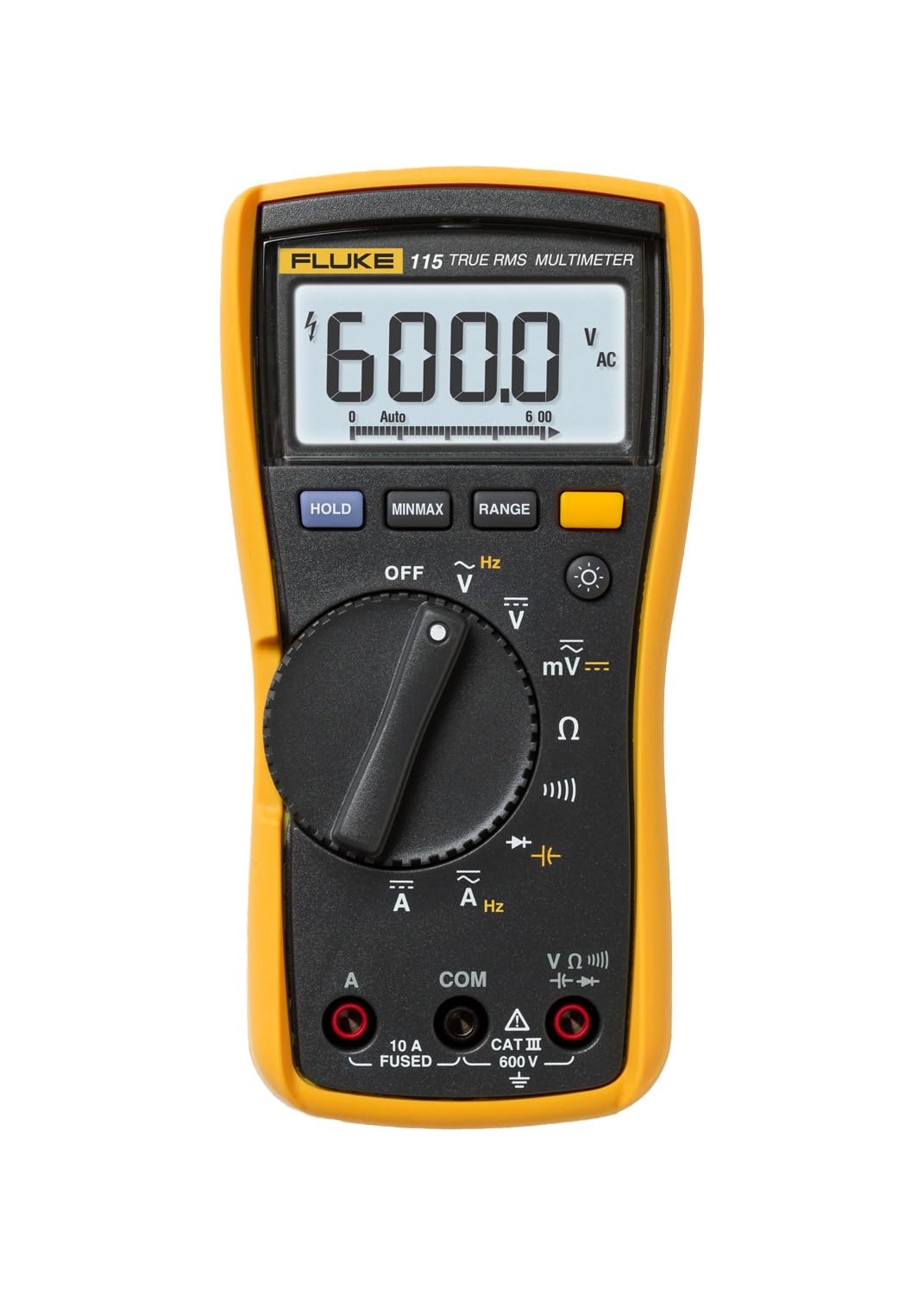

The Fluke 115 is a compact, True-RMS digital multimeter for electricians, featuring a 600V/10A range, 6000-count display, and measuring Volts (AC/DC), Amps (AC/DC), Resistance (up to 40MΩ), Capacitance (up to 1000μF), and Frequency, with Min/Max/Avg recording, Auto-V/LoZ for ghost voltage filtering, and CAT III 600V safety rating, ideal for field service, HVAC, and general electrical work.
Key Specifications:
Voltage: 600V AC/DC (True-RMS).
Current: 10A AC/DC (with 11A fuse for Amp input).
Resistance: Up to 40MΩ (600Ω to 6MΩ ranges).
Capacitance: Up to 1000µF (from 100nF range).
Frequency: Up to 50kHz (AC) / 5kHz (AC current).
Display: 6000-count digital, 33-segment analog bar graph.
Resolution: 0.001V, 0.001A, 0.1Ω, etc..
Features: True-RMS, Min/Max/Avg, Auto-V/LoZ (low impedance mode), Continuity/Diode Test, Display Hold, Backlit display.
Safety Rating: CAT III 600V.
Battery: 9V, approx. 400-hour life.
Dimensions: 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in).
Applications:
General electrical troubleshooting.
HVAC (with temperature probe accessory).
Field service.
Utility work.
