Terminal Connectors Lever operated Connectors SPL series

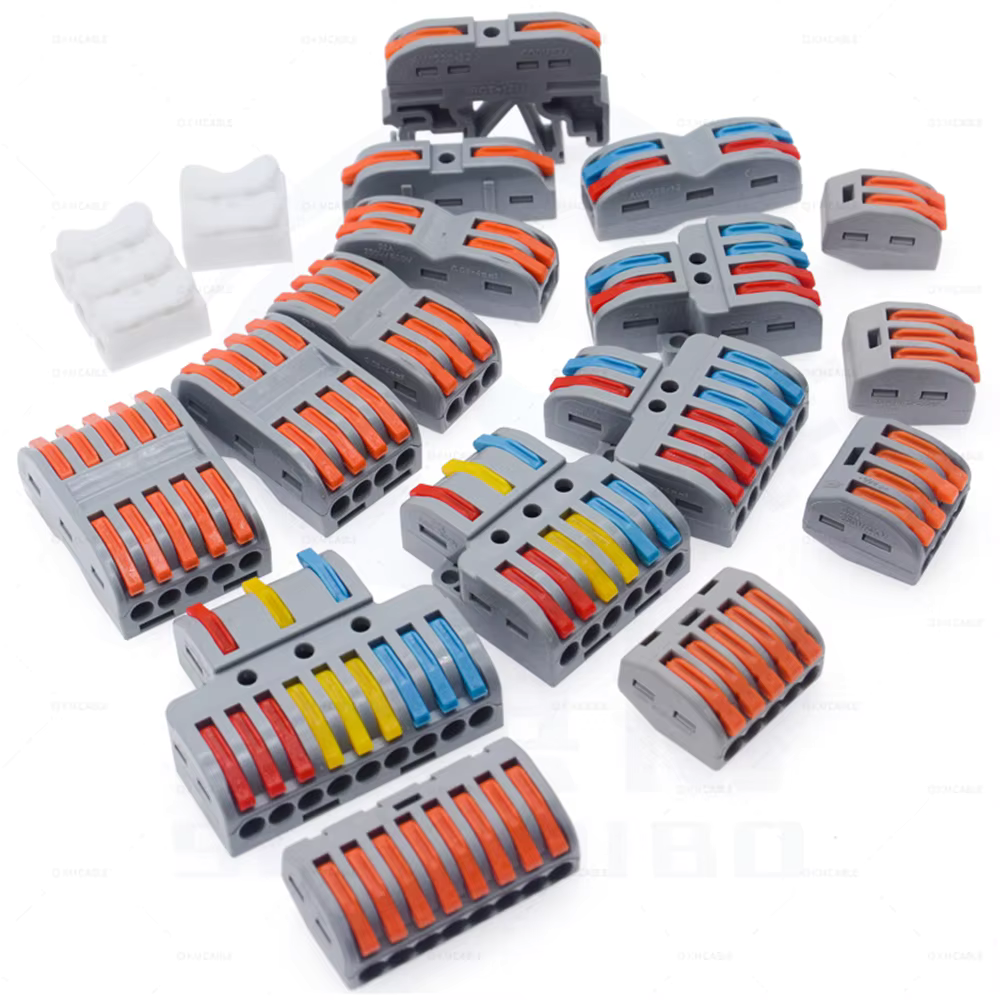

The PCT series connectors (often referred to as PCT-21x or SPL series) are compact, lever-operated wire connectors designed for quick, tool-free splicing of solid, stranded, and flexible wires. They are commonly used in electrical, lighting, and machinery applications due to their high-conductivity copper interiors and flame-retardant housings.

Key General Specifications (Series Wide):
Rated Current: 32A
Rated Voltage: 250V to 450V (varies by specific model and manufacturer)
Operating Temperature: Generally -20°C to +85°C, with some rated up to 105°C
Wire Range: 0.08–4 mm² (solid/hard), 0.08–2.5 mm² (flexible/soft)
Strip Length: 9mm – 12mm
Material: Flame-retardant Nylon (PA66) housing with copper conductive strips
Model-Specific Specifications
1. PCT-111 (Single Pole/One-in-One-out)
Type: 1-Way, Single-Pole Connector
Voltage: 250V–400V
Current: 24A–32A
Wire Capacity: 0.2–4 mm²
Features: Often used as a DIN-rail mountable, pass-through connector.

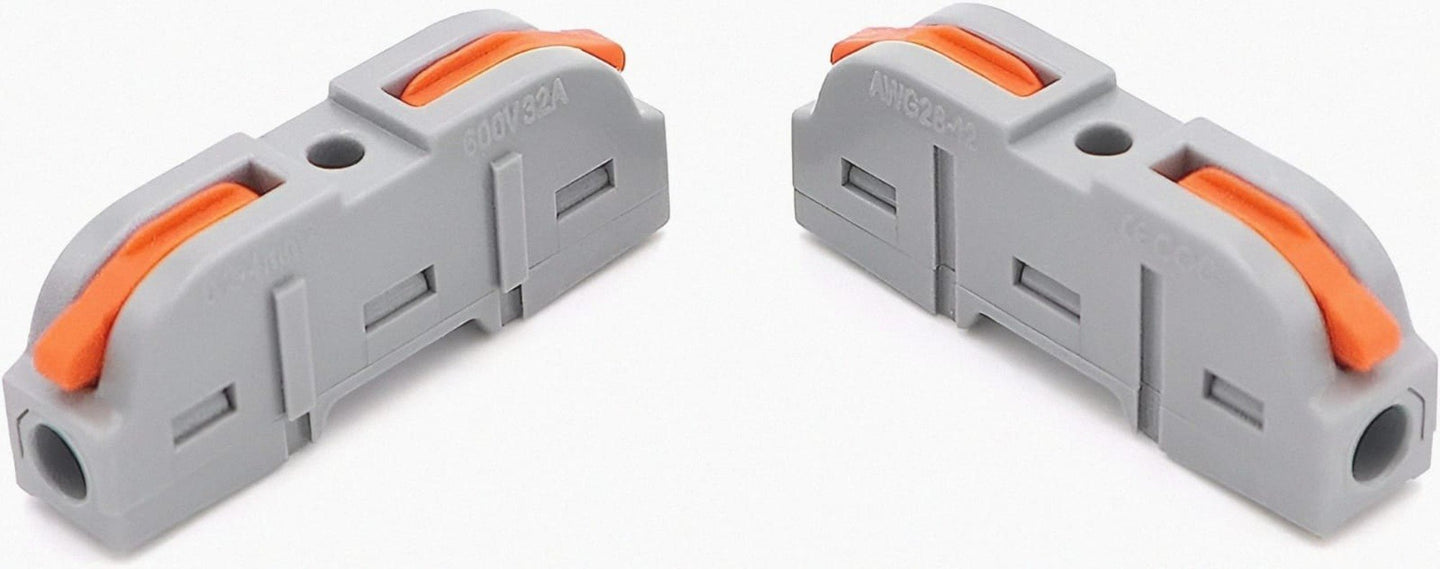

2. PCT-211 (Single Pole - Alternative)
Type: 1-Way (Often listed as a single-pole rail-type connector)
Voltage: 400V–600V
Current: 32A
Wire Capacity: 0.2–4 mm²

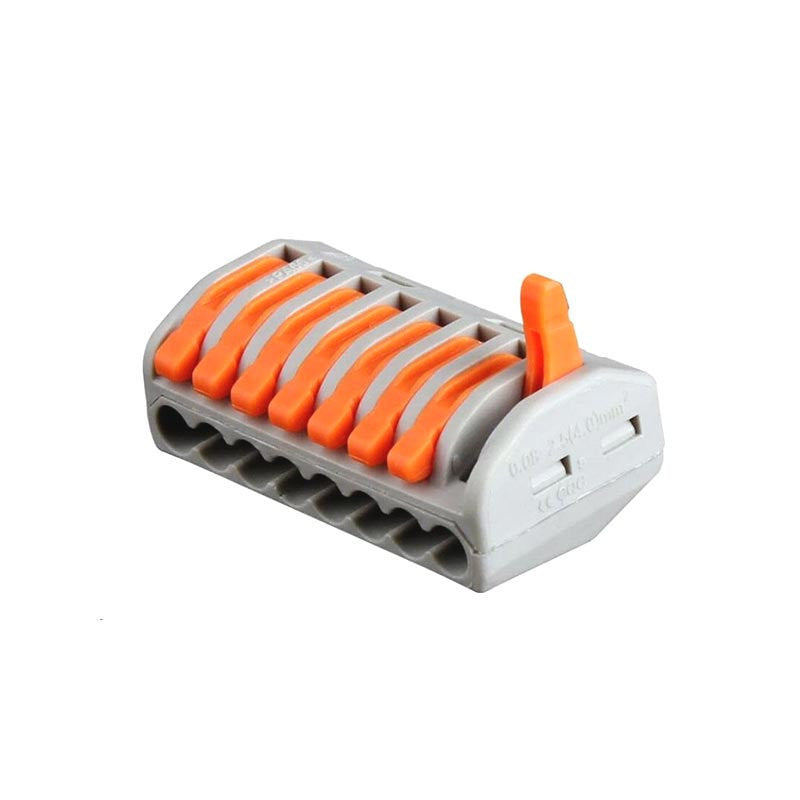

3. PCT-218 (8-Pole / 8-Way)
Type: 8-Pole Connector (1-in, 7-out or multi-point)
Voltage: 250V–450V (4KV Rated Impulse Voltage)
Current: 32A
Power Handling: Up to 7kW
Dimensions: Approximately 41 x 21 x 14.5 mm
Weight: ~10g
Summary of Key Features
Tool-Free: Uses a spring lever mechanism to lock wires securely.
Reusability: Wires can be removed and replaced.
Compatibility: Supports solid (0.08–4mm²) and stranded/flexible wires (0.08–2.5mm²).
Safety: V0 Flame Retardant material.
