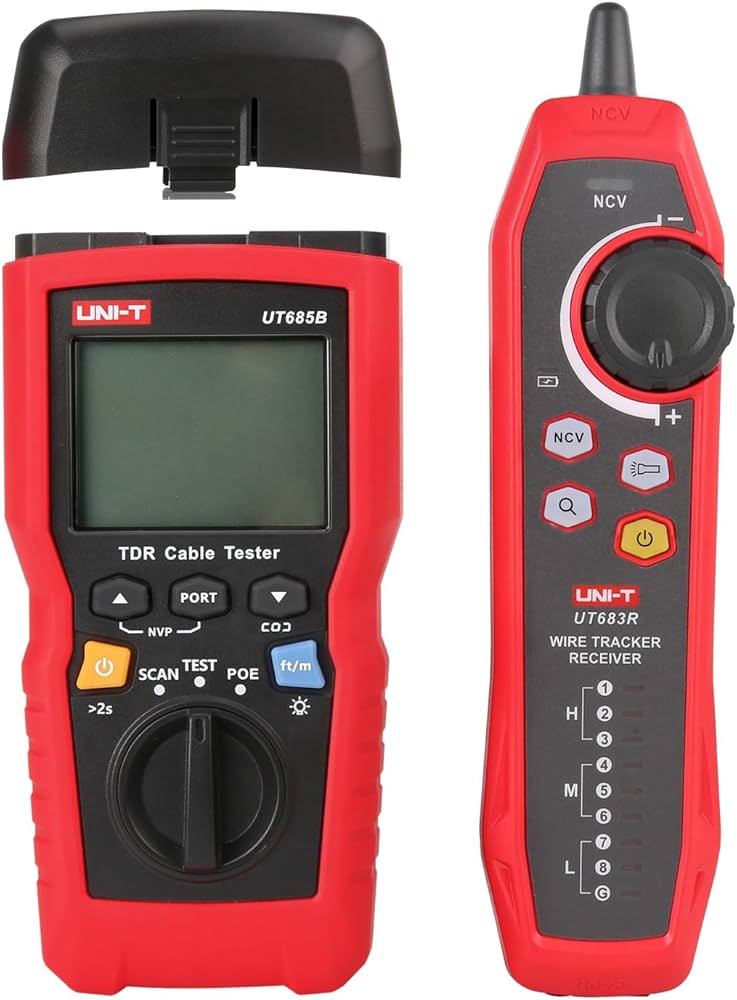

The UNI-T UT685B KIT is a comprehensive 500-meter handheld TDR cable tester designed for RJ45, RJ11, and coaxial cable testing, featuring a 2.8-inch display, 0.33m resolution, PoE identification (802.3AF/AT), and 70V DC input protection.
The kit includes a receiver for wire tracing/mapping and is ideal for cable, voice, and data network troubleshooting.
Key Technical Specifications Cable Types: Twisted pair (UTP, FTP, SSTP) and Coaxial cables (50Ω, 75Ω, 93Ω).TDR Technology: No blind spot testing.Maximum Length Range: 500 meters.Resolution: 0.33 meters.Accuracy: 0.6m or 4% .PoE Detection: Identifies 802.3AF/AT standards and voltage.Input Protection: (70VDC).Display: 2.8-inch backlit LCD screen.
Power Source: 3x AA batteries. Features and Kit Components Functions: Cable length measurement, wire mapping, digital hunt/tone tracing, PoE voltage testing.Interface: Graphical user interface.

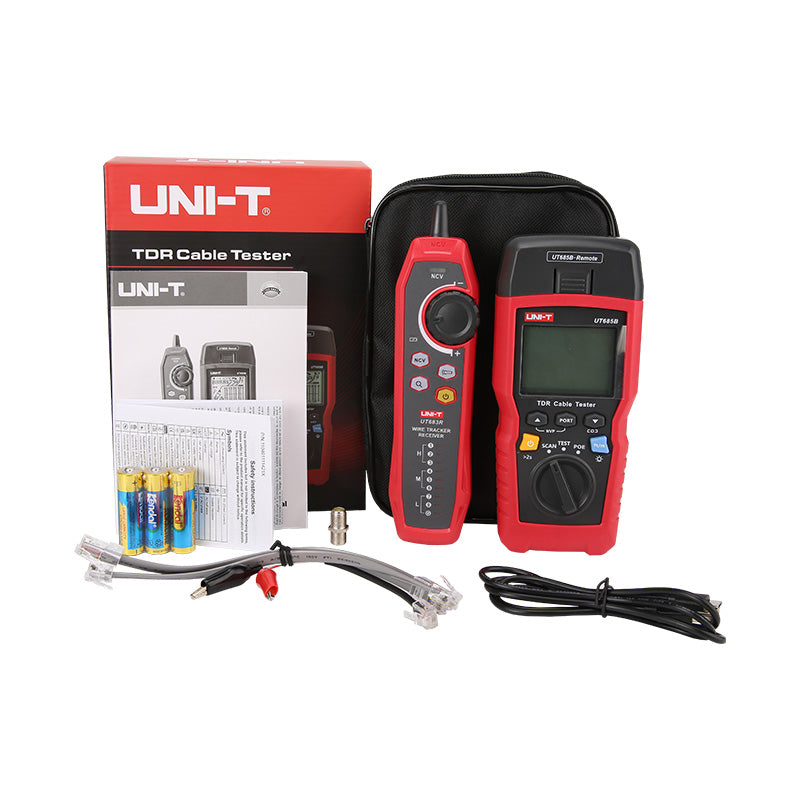

Kit Includes: Main tester (UT685B), receiver (tracking probe), RJ45 adapter cable, RJ11 adapter cable, RJ11 to alligator clip adapter.Certifications: CE, UKCA, RoHS. Physical Properties Weight: Approx. 0.5kg - 0.8kg.Dimensions: Tester: 181 x 80 x 39 mm; Receiver: 197 x 48 x 34 mm.
