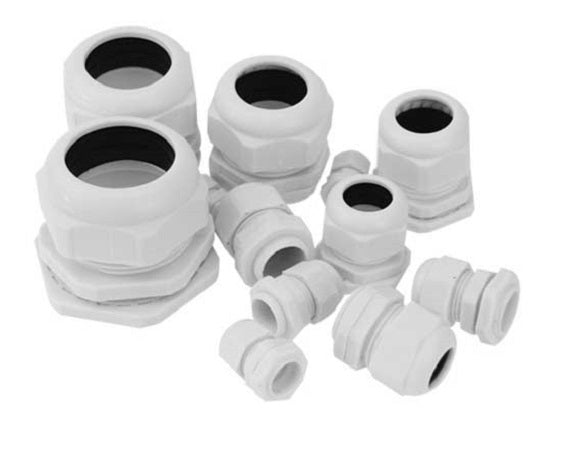

PG (Panzergewinde) cable glands are German-standard threaded fittings (PG7-PG48) designed for securing cables and ensuring environmental protection (IP68/IP69K) in electrical enclosures. Typically made of nylon PA66 or nickel-plated brass, they offer high tensile strength, wide clamping ranges, and excellent resistance to water, oil, and dust.
Key Technical SpecificationsThread Type:
DIN 40430 PG Thread (Panzergewinde).Sizes: Common sizes include PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42.Protection Rating: Generally IP68 (watertight), with some rated IP69K.Material:Plastic: Polyamide 6 (Nylon PA66).Metal: Nickel-plated brass or Stainless Steel.Seals: NBR (Nitrile rubber) or EPDM.Working Temperature: -40°C to +100°C (static) or -20°C to +80°C (dynamic).Applications: Automation, Electrical Panels, Junction Boxes, Machinery.
Features and BenefitsSuperior Strain Relief:
The claws and seals are designed to hold cables firmly, preventing tension on electrical terminals.
Chemical Resistance: Resistant to salt water, weak acids, alcohol, and grease.
Versatility: Suitable for unarmored cables and machinery.
Easy Installation: Includes locknut and surface seal.
