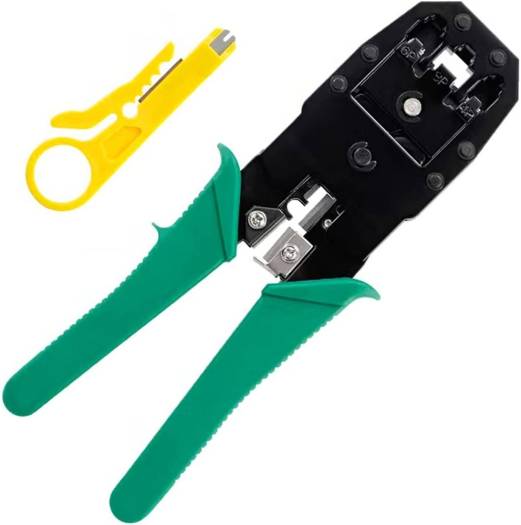

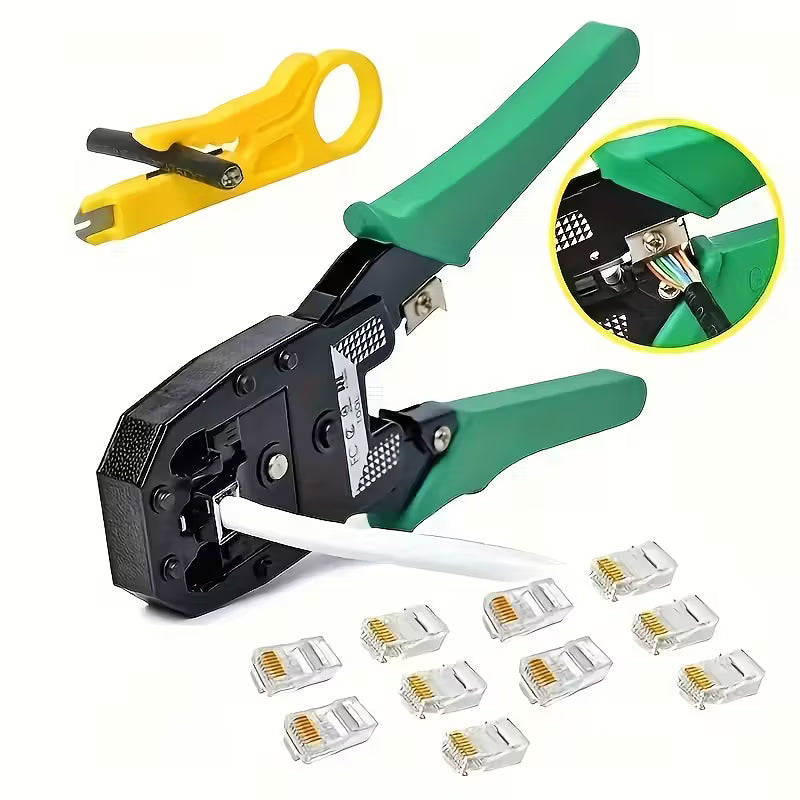

The OB-315 is a versatile 3-in-1 networking crimping tool designed for cutting, stripping, and crimping RJ45 (8P8C), RJ12 (6P6C), and RJ11 (4P4C) modular connectors. It features durable, high-quality steel construction with a magnetic head, an ergonomic plastic handle, and a built-in wire cutter/stripper.
Key Technical Specifications:
Model: OB-315
Supported Connectors: RJ45 (8P8C), RJ11 (6P4C/6P6C), and RJ12 (6P6C)
Functions: Cuts, Strips, and Crimps cable
Material: Hardened magnetic steel jaws, plastic handles
Weight: Approx. 0.29 kg - 0.35 kg
Length: Approximately 8 inches
Features: Integrated wire cutter, jacket stripper, coil spring for self-opening
Primary Uses:
Suitable for Cat5 and Cat5e cables
Ideal for creating network (LAN) and telephone patch cables
Used for crimping 4, 6, or 8-pole modular connectors
