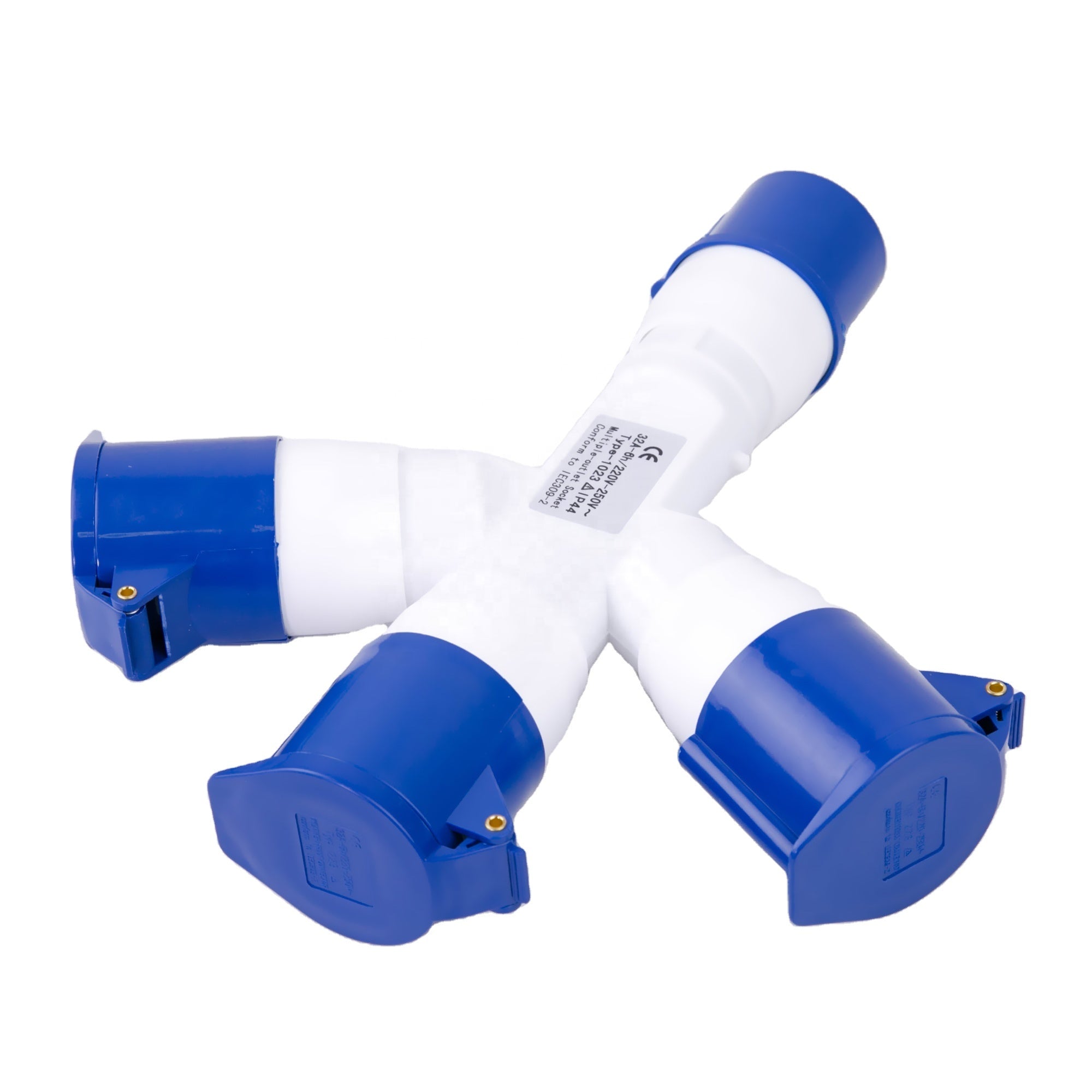

The industrial 1023 specification typically refers to a 32 Amp, 3-way, 3-pin (2P+E) Industrial Multiple Outlet Socket designed for heavy-duty, single-phase power distribution. This unit allows for one 32A input to be split into three, making it ideal for industrial, construction, and workshop environments.
Technical Specifications for Industrial 1023 Multiplug Socket:
Model/Type: 1023 / TICS1023 / 32A 3-Way Multiple Socket
Input/Output Configuration: 1x 32A 2P+E Input and 3x 32A 2P+E Output (1 in 3 out)
Rated Current: 32 Ampere (32A)
Voltage: 200V - 250V AC (Standard 230V Single Phase)
Configuration: 2 Pole + Earth (3-pin)
Clock Position: 6h
Protection Rating: IP44 (Splashproof)
Material: High-impact, flame-retardant polyamide (PA6) or rubber
Dimensions: Approx. 226mm x 220mm x 85mm
Frequency: 50/60 Hz
Compliance: IEC/EN 60309-1, IEC/EN 60309-2 (Industrial standard)
Key Features and Applications:
Safety: Specifically designed to be robust with high-impact resistance for harsh environments.
Applications: Commonly used in construction sites, industrial factories, shipyards, workshops, and for portable power distribution.
Reliability: Features nickel-plated brass contacts for consistent conductivity.
Usage: Used to connect electrical devices and consumers to low-voltage, high-current power sources.
