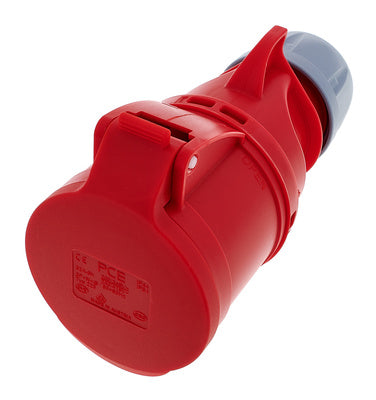

The AM225 (often referred to as 225-6 or HT-225 in industrial catalogs) is a 32 Amp, 5-pin (3P+N+E) industrial mobile socket designed for high-power, three-phase applications, typically adhering to CEE-standard regulations (IEC 60309).
Key specifications for this socket include:
Electrical Specifications:
Rated Current: 32 Ampere
Rated Voltage: 400V (200/346V - 240/415V)
Number of Poles: 5 (3-pole + Neutral + Earth)
Frequency: 50+60 Hz
Clock Position: 6h (standard earth position)
Rated Short Circuit Current: According to mounted protection
Surge Voltage Resistance: 8kV
Physical & Environmental Specifications
Protection Rating: IP44 (splash-proof) or IP67 (watertight, depending on specific variant/manufacturer)
Material: Polyamide 6 (high-quality, heat-resistant engineering plastic)
Contact Material: Brass or Copper-Zinc alloy (often nickel-plated for corrosion resistance)
Color Identification: Red (indicates 380V-415V 3-phase)
Operating Temperature: -5°C to +65°C
Cable Gland/Entry: Generally accepts cable diameters from 17mm to 36mm.
Key Features:
Connection Technology: Screw terminals
Durability: High mechanical strength, UV ray resistance, and impact resistance
Design: Ergonomic, with improved cable protection and grip
Standards: Approved under EN60309-1 and EN60309-2.
Common applications include industrial buildings, generators, electrical boards, and construction sites.
