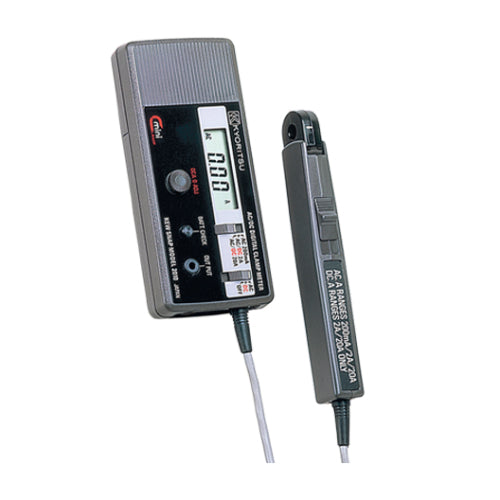

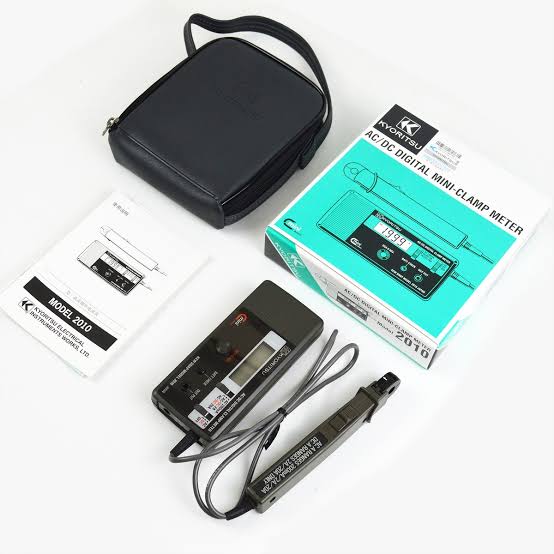

High sensitivity, miniature AC/DC clamp meter 0.1mA minimum resolution for AC current and 1mA minimum resolution for DC current Output terminal for recorder connection
Never make current measurement on a circuit above 60V AC/DC as the instrument is designed for use on low voltage circuits only.
AC A: 200mA/2/20A ±1%rdg±2dgt [50/60Hz] (200mA) ±1.5%rdg±8dgt [40Hz to 2kHz] (200mA) ±1%rdg±2dgt [50/60Hz] (2A) ±2.5%rdg±10dgt [40Hz to 2kHz] (2/20A)
DC A: 2/20A ±1%rdg±2dgt (2A) ±1.5%rdg±4dgt (20A)
Conductor size : Ø7.5mm max. Frequency response : DC, 40Hz to 2kHz Output Recorder : DC200mV against AC200mA/2/20A DC200mV against DC2/20A Power source : 6LR61(9V) × 1 or AC Adapter
