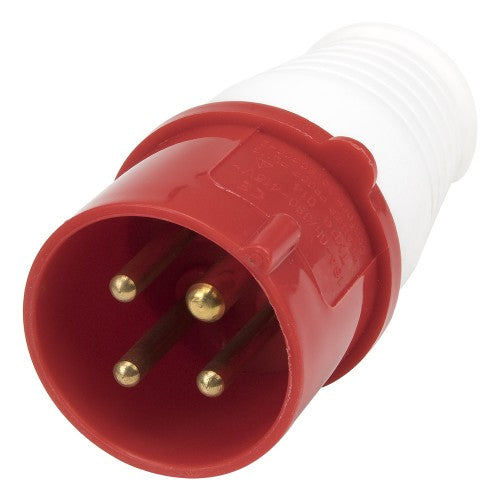

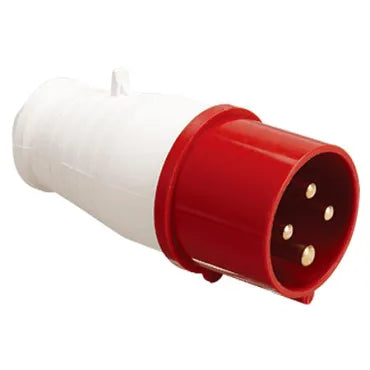

The AM-014 (or BEM-014/CM1-014) is a 16-ampere, 4-pin (3P+E) industrial power plug designed for three-phase systems, typically rated for 380-415V. These plugs are commonly used in construction, agriculture, and industrial settings for machinery.
Key Specifications for AM-014 (16A 4-Pin):
Model/Type: AM-014 / CM1-014 / BEM-014 (16A 3P+E)
Rated Current: 16A
Rated Voltage: 380-415V (Red color coding for 3-phase)
Number of Poles: 4 Pin (3 Pole + Earth, 3P+E)
IP Rating: IP44 (Splashproof, moisture-proof, dust-proof)
Earth Contact Position: 6h
Material: High-strength flame-retardant engineering materials (often PA66)
Conductive Material: 5.00mm large brass post
Cable Cross-section: 1-2.5 mm²
Color: Red + Grey
Dimensions: Approximately 125x53x53mm
Features and Application:
Environment: Suitable for, industrial, agricultural, and outdoor use.
Performance: High reliability, long service life, and anti-corrosion.
Usage: Free hanging, easy to connect with corresponding 16A 4-pin industrial sockets (e.g., CM1-114, CM1-314).
