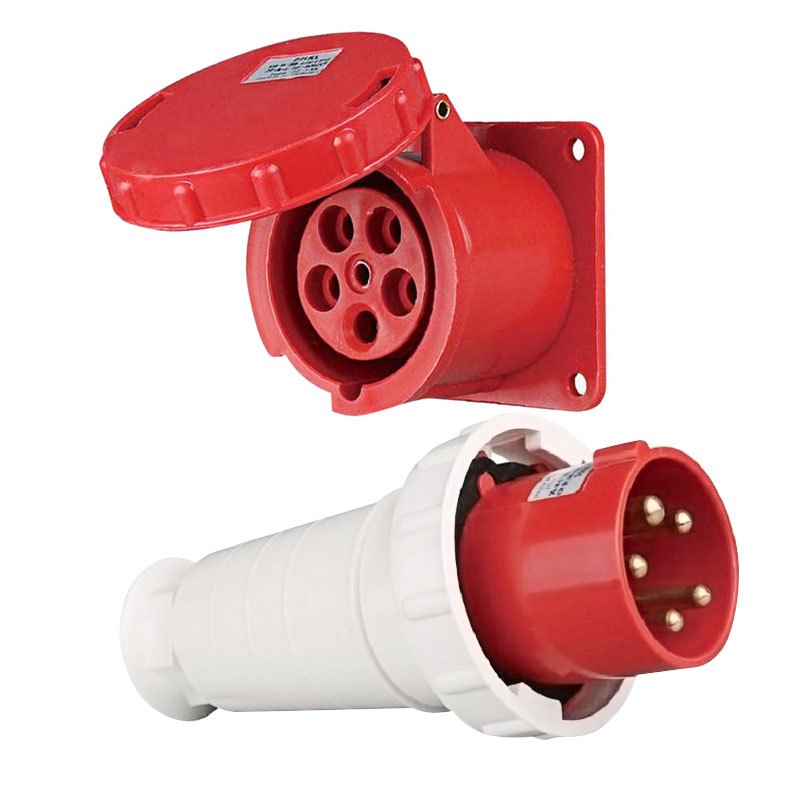

AM-035 industrial plugs are heavy-duty, watertight connectors designed for 3-phase power applications, typically conforming to the IEC 60309 standard. They are commonly used in industrial, construction, and generator applications.
Key Specifications (Common for AM-035/035-6/TICS-035):
Rated Current: 63 A
Rated Voltage: 380–415V AC (Red color code)
Number of Poles: 5 (3P+N+E, or 3 Phase + Neutral + Earth)
Clock Hour Position: 6h
Protection Rating: IP67 (Watertight) or IP44 (Splashproof) depending on specific manufacturer variants
Housing Material: High-quality, durable plastic (PA6/PA66)
Contacts: Nickel-plated brass for corrosion resistance
Cable Diameter Range: 14.5–36 mm (approximate)
Connection Type: Screwed terminals
Ambient Temperature Range: -25°C to +40°C or up to 65°C, depending on manufacturer.
Key Features:
Robust Construction: Designed for high mechanical strength and UV resistance.
Cable Gland: Features a gland nut for secure cable entry.
Standards: Conforms to EN60309-1 and EN60309-2.
These plugs are widely used in heavy-duty environments due to their high reliability and safety standards.
