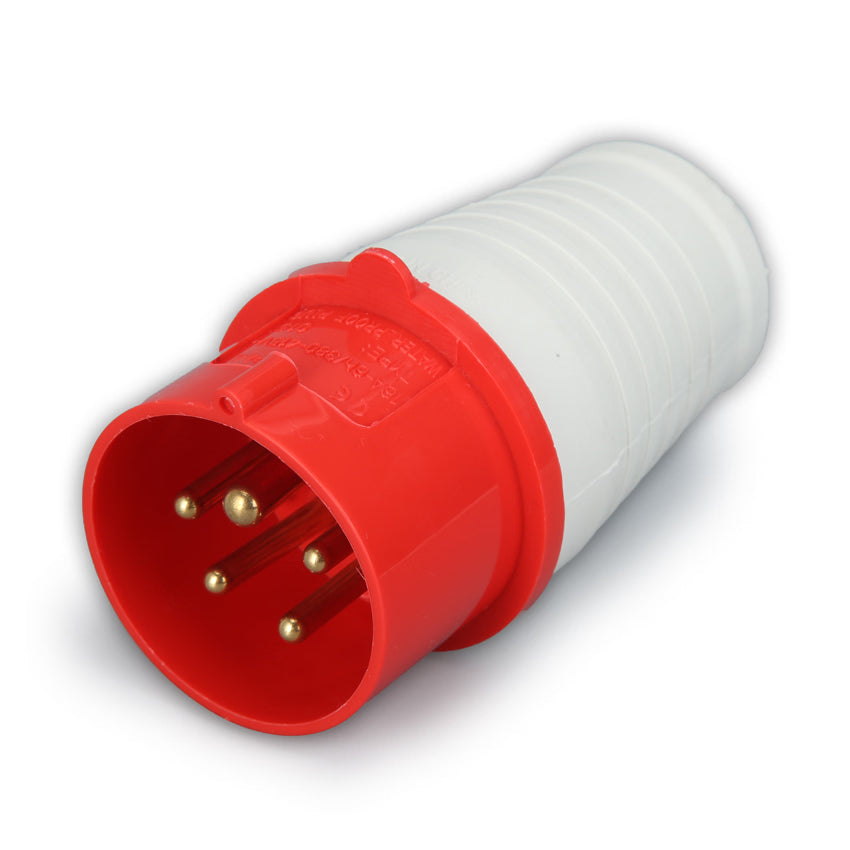

The "AM-015" is a common type of CEE-standard 16A 5-pin (3P+N+PE) industrial plug, often used in 3-phase, red-colored, 380-415V applications.
Key Specifications (AM-015)
Model No.: 015 / 015-6 / EN-015
Rated Current: 16 Amps
Voltage: 380–415 V~ (3 Phase)
Number of Poles/Pins: 5-pin (3P+N+PE)
Earth Clock Position: 6h
Color Code: Red (indicates 380-415V)
IP Rating (Protection): IP44 or IP54 (splashproof/dust-resistant)
Material: High-grade Polypropylene (PA66)
Contact Material: Brass/Copper-Zinc (CuZn)
Connection System: Screw terminals
Cable Entry: Gland nut/Cable gland
Plug Type: Straight
Key Features
Industrial Application: Designed for 3-phase machinery, workshops, construction sites, and agricultural, chemical, or mining environments.
Durability: High impact resistance and designed for harsh conditions.
Safety: Features a locking mechanism (often a rubber sealing gland) to prevent the plug from loosening.
