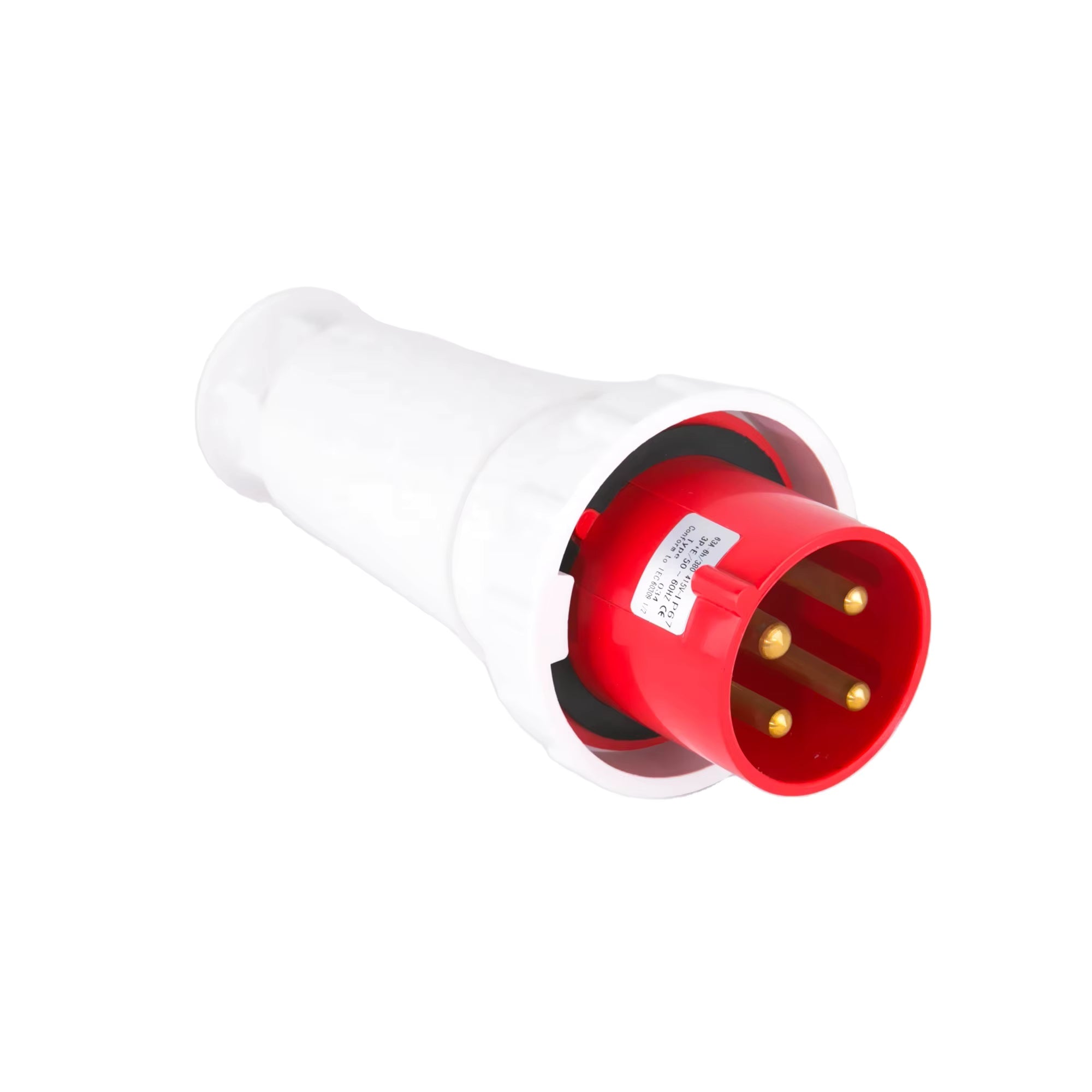

The AM-034 industrial plug is a heavy-duty, 4-pin CEE connector, typically designed for 3-phase power, high-amperage applications, and harsh environments. It is often rated for 63A, featuring a 3P+E (3 poles + Earth) configuration.
Key Specifications (Common for AM-034/034-7 variants):
Model/Type: AM-034 (often corresponds to 63A 3P+E or 4-pin)
Rated Current: 63A
Number of Poles: 4 (3 Pole + Earth / 3P+E)
Voltage: 380-415V AC (Red color coding for 3-phase)
IP Protection Rating: Usually IP67 (watertight/dustproof) or IP44
Earth Contact Position: 6h or 7h
Material: Durable thermoplastic (PA66), impact/heat resistant
Standards: EN60309-1, EN60309-2 (IEC 60309)
Connection Method: Screw terminals
Cable Cross-section: Typically 6-16 mm².
Common Applications:
Industrial, construction, and agricultural machinery
Generator connections
Heavy-duty workshops
