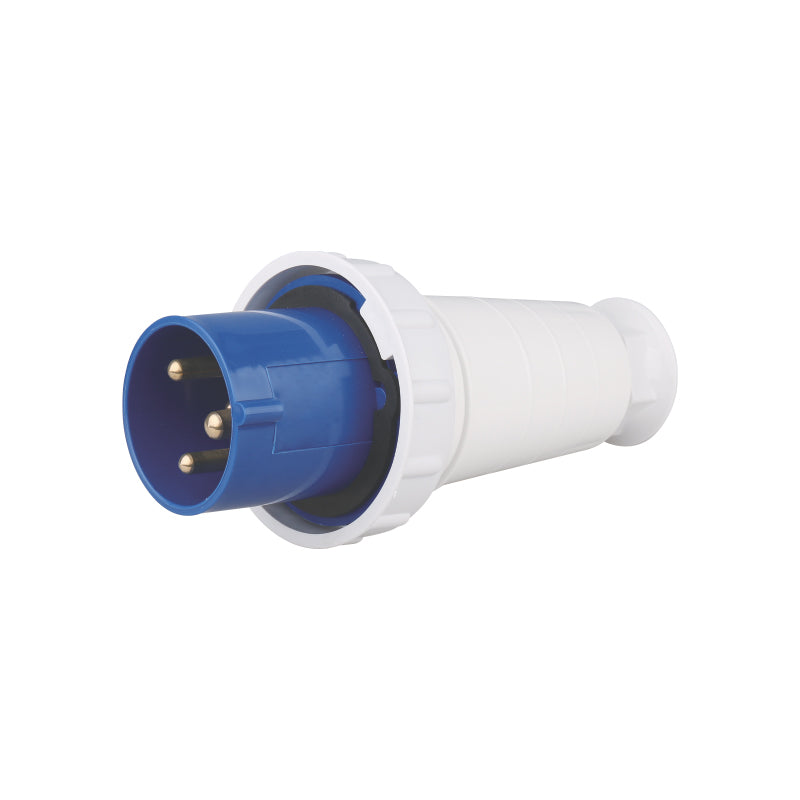

The AM-033 (CM1-033 or PCE 033-6) is a 63 Amp, 3-pole (2P+E) industrial plug designed for single-phase, high-current applications. It is typically colored blue to indicate a voltage rating of 200-250V.
Key Specifications:
Amperage: 63 A
Voltage: 220-240V AC (Single Phase)
Number of Poles: 3 (2 Pins + Earth)
Earth Clock Position: 6h (bottom position)
IP Rating: Generally IP67 (Watertight/Underwater capable), though some variations (like EN-033) may be IP44.
Cable Entry: Gland nut
Cable Size: 6-16 mm²
Material: PA66 (Plastic/Nylon)
Contacts: Brass, often Nickel-plated
Connection Type: Screw/Frame terminals.
Key Features:
Protection: High level of sealing against water and dust (IP67).
Safety: Designed to prevent incorrect voltage/amperage connections (IEC 60309 standards).
Use Case: Suitable for industrial, mining, and outdoor high-power equipment.
