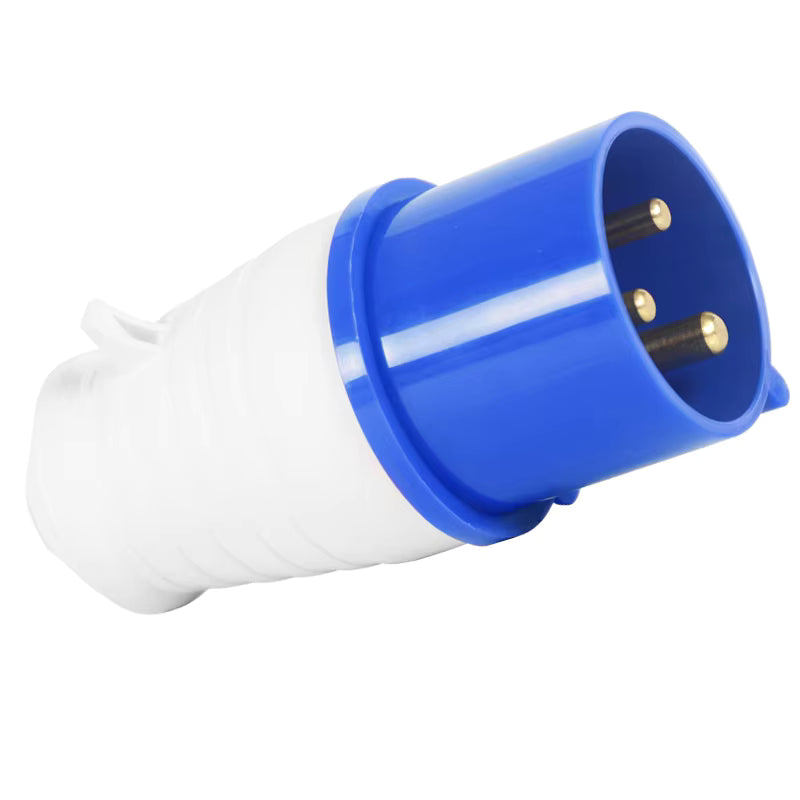

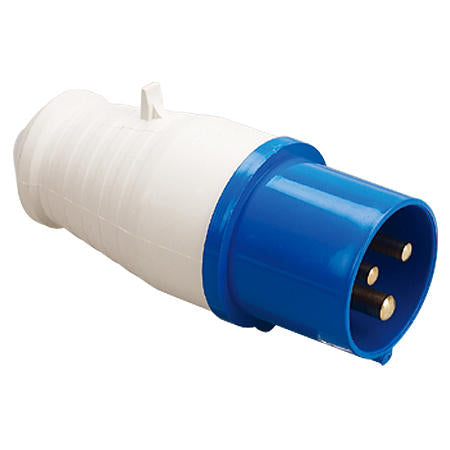

The AM-023 (or simply 023) is a commonly used, 32-ampere industrial plug, typically designed for single-phase, heavy-duty electrical connections in environments like construction sites, workshops, and for machinery. It operates within the IEC 60309 standard and is generally color-coded blue to signify 220-250V usage.
Key Specifications
Model Number: 023 / AM-023
Rated Current: 32 Ampere (32A)
Rated Voltage: 220-250V AC, Single Phase (1P+N+E or 2P+E)
Configuration: 3 Pin (2P+E, 2 Poles + Earth)
IP Rating: IP44 (Splash-proof/Waterproof)
Earth Position: 6h (6 o'clock position)
Material: High-performance Engineering Plastic (PA66/Nylon/ABS) and Brass
Cable Cross-section: 2.5–6 mm²
Operating Temp: -25°C to 40°C
Common Features
Safety Standards: Complies with IEC 60309-1 and 60309-2
Design: Durable, fire-resistant, and heat-resistant housing with rubber cable gland for secure, anti-loosening connection
Color: Blue (for 200–250V range).
Applications
These plugs are designed for high-power, industrial, and agricultural equipment, including:
Portable generators
Construction site power tools
Industrial compressors
Commercial washing machines and dryers
Caravans and motor homes
