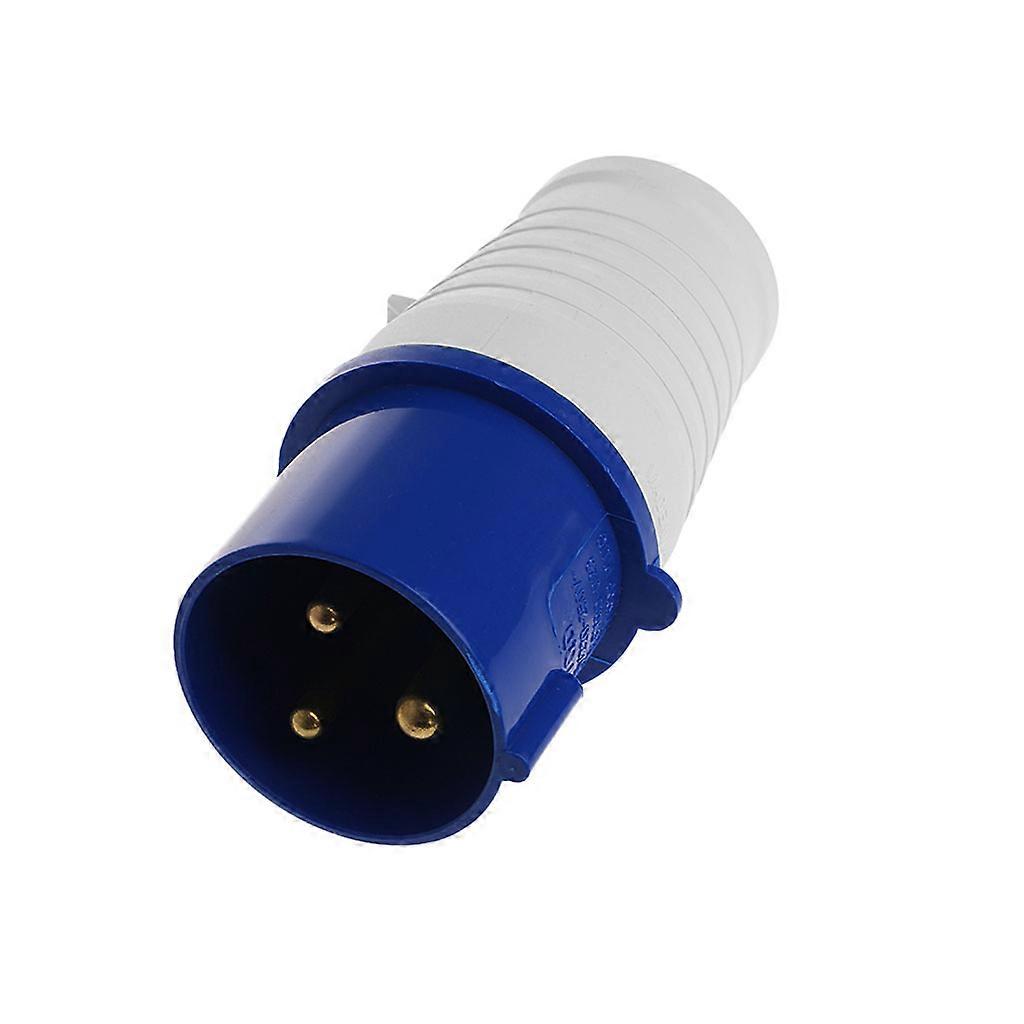

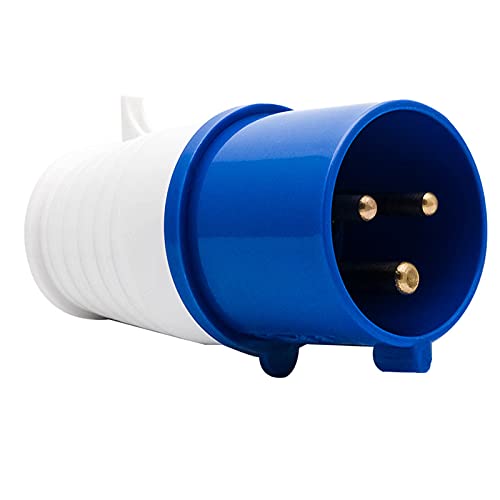

The NM-023 (often referred to as HT-023 or 023-6) is a 32A 3-pin industrial plug designed for single-phase (2P+E) connections, typically used for heavy-duty applications in construction, industrial buildings, and with generators.
Key Specifications:
Model: 023 (e.g., CM1-023, HT-023, 023-6)
Rated Current: 32 Ampere
Rated Voltage: 220-240V AC (50-60Hz)
Poles: 3-pin (2P+E / 1P+N+E)
Clock Position/Color: 6h (Blue, indicating 200-250V)
Protection Level: IP44 (splash-proof) or IP67 (watertight, depending on model)
Cable Cross-section: 2.5–6 mm²
Material: High-quality, UV-resistant plastic (PA66)
Standards: EN60309-1; EN60309-2
Physical & Design Features:
Termination: Screwed terminals
Design: Straight (cable mount)
Safety: Features strain relief and protective, durable design for high-current, heavy-duty use
Ground Contact: Positioned at 6 o'clock (6h).
