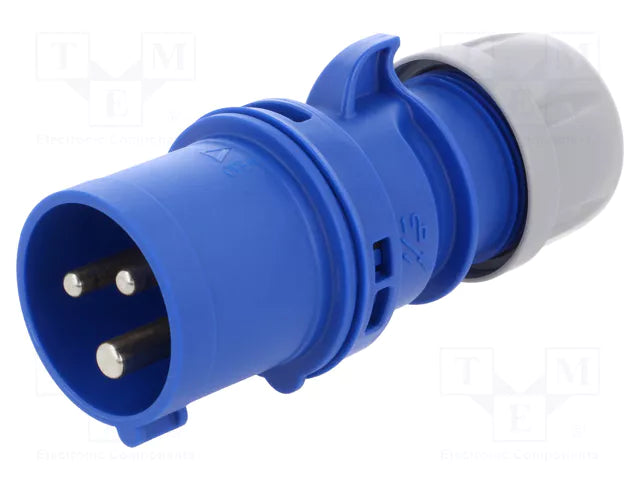

The NM-013 is a common designation for a 16A 3-pin industrial (CEE) plug, designed for single-phase applications requiring a rugged, waterproof connection.
Key Specifications for NM-013 (16A 3P) Plug:
Type: 16 Amp Industrial Plug (CEE/IEC 60309)
Configuration: 3-Pin (2P+E - 2 Pole + Earth)
Current Rating: 16A
Voltage: 230V / 250V AC (Blue)
IP Rating: IP44 (Splashproof) or higher, often with a threaded cable gland for sealing
Frequency: 50-60 Hz (6h position)
Connection Type: Screw terminals
Material: PA6 Plastic (PolyAmide 6) with brass contacts
Cable Entrance: Suitable for flexible cables with strain relief
These plugs are widely used in industrial, agricultural, and construction settings.
