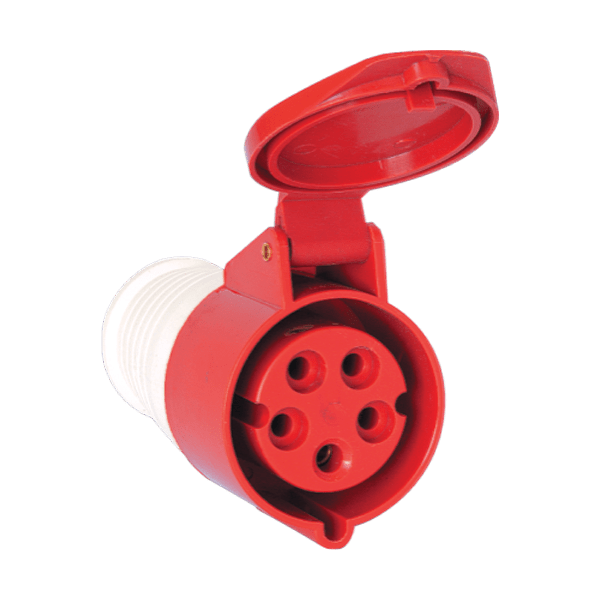

The AM235 (often listed as HT-235 or PCE 235-6) is a high-power industrial mobile socket designed for heavy-duty applications. It is typically a 63A, 5-pin red socket.
Key Specifications (Based on HT-235/PCE 235-6):
Model/Type: Mobile Industrial Socket (often 235-6H)
Rated Current: 63 A
Rated Voltage: 400 V (380-415V), 3-phase
Number of Poles: 5 (3P+N+E)
Clock Position: 6h (standard earth position)
IP Protection Rating: IP44 or IP66/IP67 (watertight/heavy-duty options)
Material: High-quality engineering plastic (PA6) with UV resistance
Connection Type: Frame terminals with screws
Cable Diameter Range: Compatible with cable clamps, typically accepting a wide range of cable sizes (e.g., 17mm-36mm)
Frequency: 50/60 Hz
Ambient Temperature: -5°C to +65°C
Standards: EN60309-1, EN60309-2.
Key Features:
Durability: Constructed with engineering plastic for high thermal stability and mechanical strength.
Contacts: Nickel-plated brass contacts with lamellar springs for consistent, reliable, and corrosion-resistant contact.
Safety: Designed with a locking ring and secure cable clamp.
Application: Suitable for industrial buildings, generators, and heavy machinery.
