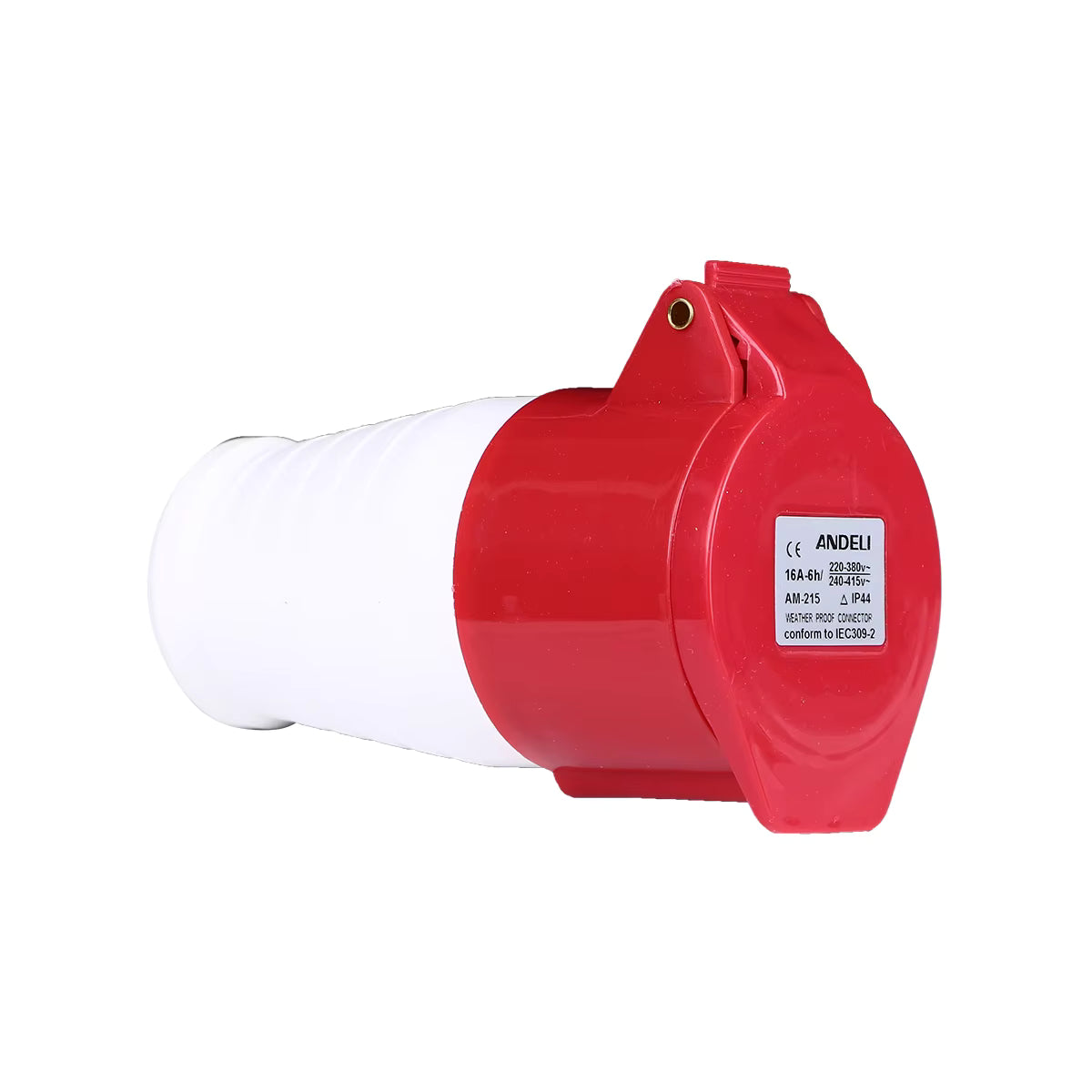

The AM215 industrial mobile socket is a 16A, 5-pin, 3-phase connector designed for high-power industrial applications, frequently specified with an IP44 rating for splash resistance or IP67 for watertight protection. These sockets adhere to IEC 60309 standards (often listed as CEE-form) and are designed for durability in harsh environments.
Key Specifications (AM215 / 16A 5-Pin Industrial Socket):
Rated Current: 16 Ampere
Rated Voltage: 380V - 415V AC (Red color coding for 3-phase)
Number of Poles: 5 poles (3P+N+E: 3 Phase + Neutral + Earth)
Protection Rating: IP44 (splash-proof) or IP67 (watertight)
Earth Contact Position: 6h
Material: High-quality engineering plastic (Polyamide 6/Nylon) with UV resistance
Contacts: Nickel-plated brass for enhanced corrosion resistance and electrical conductivity
Temperature Range: -5°C to +65°C
Standards: EN 60309-1, EN 60309-2.
Structural Features:
Design: Movable/portable female socket
Cable Connection: Features a cable gland/clamping system (often 6mm–16mm or up to 36mm for larger types)
Safety: Double earthing screws and self-extinguishing material (650°C-850°C glow-wire test)
