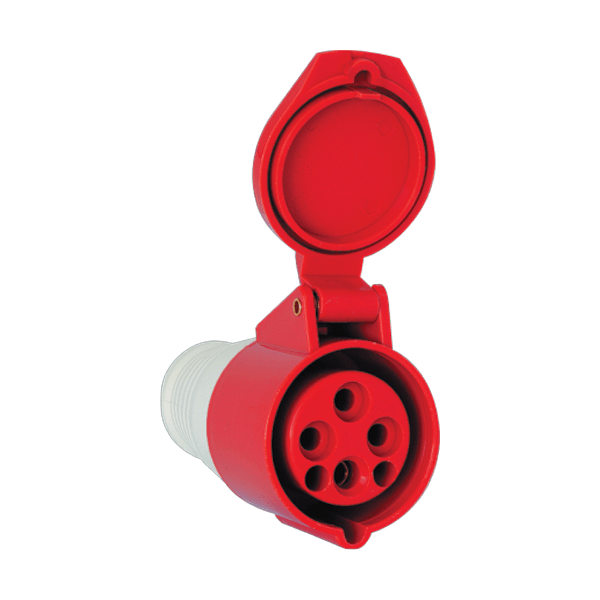

The AM224 (often labeled HT-224 or 224-6) is a 32A industrial mobile socket designed for heavy-duty, 3-phase applications. Based on standard IEC 60309, it features a red casing for 380-415V, a 3P+E (3 poles + earth) configuration, and an IP44 or IP67 protection rating.
Key Specifications (AM224/HT-224):
Model/Type: AM-224-6 / HT-224 (Mobile/Coupler)
Rated Current: 32 Amps
Rated Voltage: 380–415 V~ (Red, 3-Phase)
Number of Poles: 4 (3P+E / 3 poles + earthing sleeve)
Clock Position: 6h (earthing contact position)
IP Rating: IP44 (Splash-proof) or IP67 (Watertight)
Material: High-quality engineered plastic (Polyamide 6 or similar), often with UV resistance
Connection Type: Screw terminals
Standards: EN60309-1, EN60309-2 (IEC 60309).
Key Features:
High Reliability: Designed for extreme operating conditions with 3000 cycles of mechanical wear resistance.
Material Strength: Constructed for high thermal stability, with nickel-plated brass contacts for durability.
Secure Connection: Designed for easy installation, featuring a cable clamp and gland for secure, watertight connections (especially in IP67 versions).
Usage: Ideal for industrial, agricultural, and construction sites (generators, electrical motors).
Typical Applications:
3-phase machinery (e.g., pumps, mixers)
Industrial, construction, and agricultural sites
Mobile power distribution systems
Shipyards and industrial workshops
