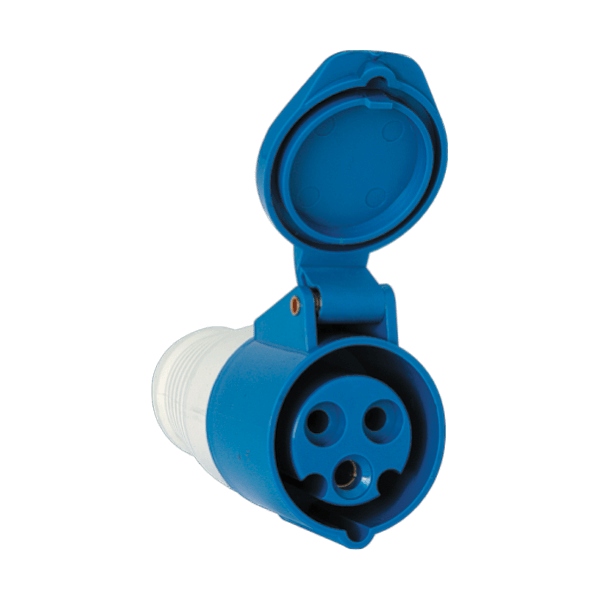

The AM223 (or HT-223/223-6) is a commonly used 32A industrial mobile (coupler) socket designed for high-power, single-phase connections in industrial, commercial, and outdoor applications. It is frequently specified for use with generators, machinery, and in workshop environments, adhering to CEE standards.
Key Technical Specifications:
Model/Type: AM-223 / 223 / 223-6
Configuration: 32 Amp, 3-Pin (1P+N+E)
Voltage: 200V - 250V AC (Blue color coding)
IP Rating: IP44 (Splash-proof/Waterproof) or IP67 (Watertight) depending on the specific variant
Frequency: 50/60 Hz
Clock Position: 6h (standard industrial orientation)
Material: Engineering plastic (Polyamide 6) or ABS, with high mechanical strength and UV resistance
Contacts: Nickel-plated brass for enhanced corrosion resistance
Features.
Connection Type: Screw terminals or screwless (TT - Technischer Termin)
Cable Management: Integrated cable clamping system/strain relief
Mounting: Mobile/Portable (Coupler)
Durability: Resistant to high temperature, impacts, and chemicals
Compliance: EN60309-1, EN60309-2.
Common Applications:
Construction Sites: Powering portable equipment
Industrial Plants: Machinery and equipment connections
Outdoor/Wet Environments: Shipyards, docks, and agricultural applications
Generators: Temporary power distribution
