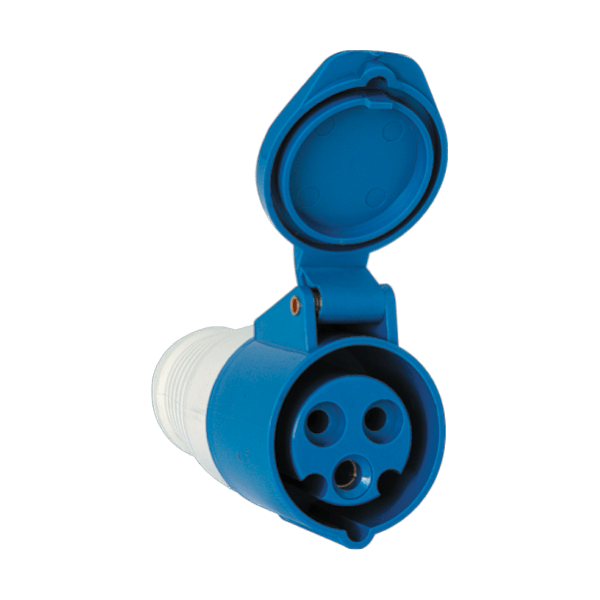

The NM223" (HT-223) is an industrial-grade, 3-pin wall socket designed for high-current, 230V applications.
Here are the detailed specifications for the 32A Industrial Socket (HT-223):
Electrical Specifications
Rated Voltage: 230 V (AC)
Rated Current: 32 A
Number of Poles: 3 (1P+N+E - Live, Neutral, Earth)
Clock Position: 6h
Surge Voltage Resistance: 8kV
Rated Frequency: 50/60 Hz
Short Circuit Current: Matches mounted protection in boards
Mechanical & Physical Specifications.
Model: HT-223 (or similar 32A industrial socket)
Installation: Surface or flush mounting, suitable for fixed or movable use
Material: High-quality UV-resistant plastic (prevents aging under sunlight)
Mechanical Wear Resistance: 3000 cycles
Cable Connection: Designed for secure, reliable, high-current connection
Environmental & Safety Standards.
IP Protection Rating: IP44 (splash-proof) or IP67 (waterproof) depending on specific model variant.
Ambient Temperature: -5°C to +65°C
Standards: EN 60309-1; EN 60309-2 (International standards for industrial plugs/sockets)
Altitude: Up to 2000m.
Applications:
Industrial buildings, workshops, and construction sites.
Generators and electrical motor connections.
Electrical distribution boards.
