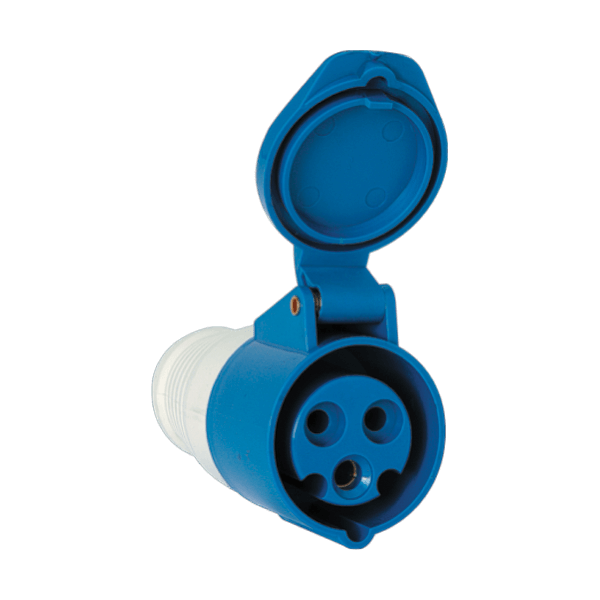

The NM213 / 213 is a 3-pin (2P+E) industrial mobile socket, designed for 16A, 230V, blue color-coded, 6h, IP44 (splash-proof) applications. It is often labeled as an industrial connector compliant with IEC 60309-2 standards.
Technical Specifications:
Model/Reference: 213 / HT-213 / 213-6
Type: Industrial Mobile Socket (Female Connector/Coupler)
Rated Current: 16A
Rated Voltage: 200–250 V~ (Blue)
Number of Poles: 3 (2P+E; 2 pole + Earth)
Earth Contact Position: 6h
Protection Rating: IP44 (Splash-proof) or IP67 (Watertight - see HTN-2131)
Connection System: Screwed Terminal
Cable Entry: Gland Nut
Material: High-quality plastic (PA6/ABS/Polyamide 6)
Contact Material: Brass or Copper-Zinc (CuZn)
Standards: EN 60309-1, EN 60309-2.
Key Features:
Environmental Protection: Suitable for industrial, agricultural, and construction sites with IP44 splash-proof rating.
UV Resistance: Designed to withstand exposure to sunlight.
Cable Compatibility: Designed for easy, reliable connection, often with a robust cable clamp.
Temperature Range: Typically operates from -5°C to +65°C
