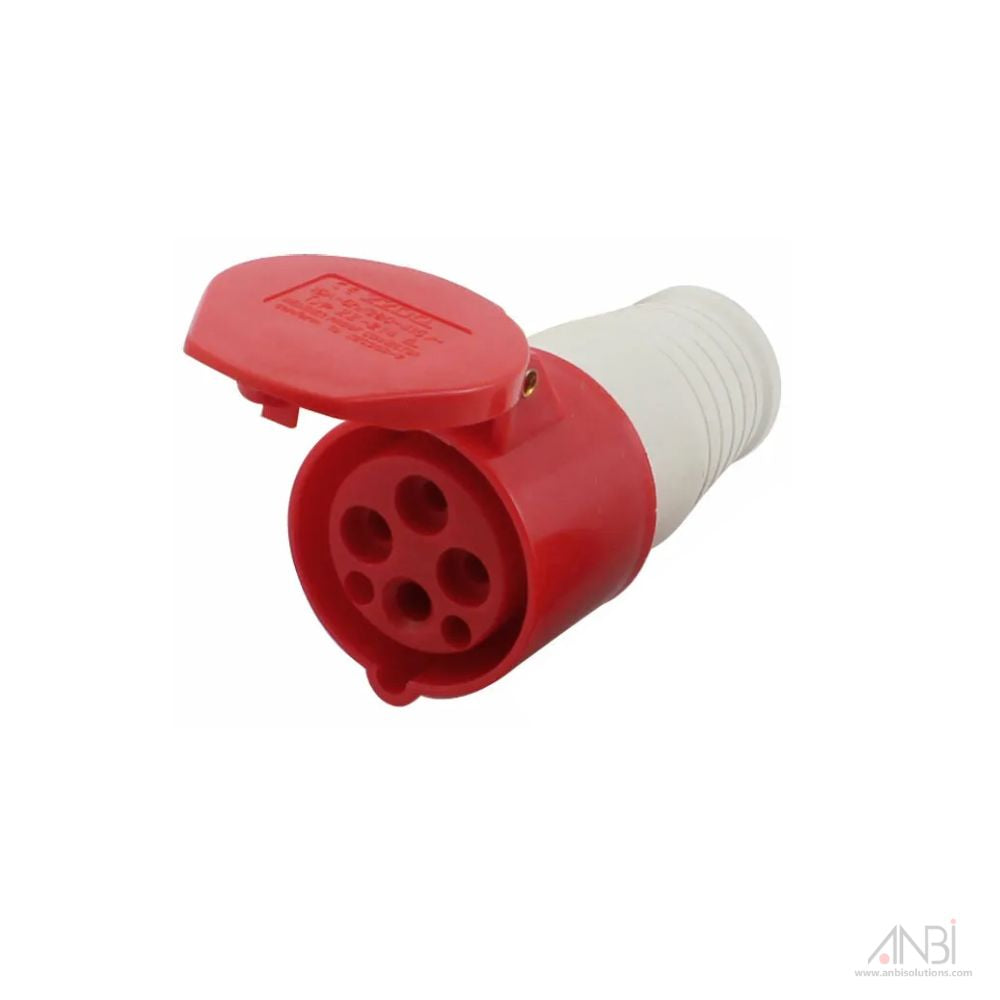

The AM244 industrial mobile socket generally corresponds to a 32 Amp, 4-pin (3P+E) connector, often designed for 380-415V, 3-phase applications, frequently featuring an IP44 rating.
Specifications:
Model/Type: Industrial Mobile Socket (Female/Coupler), often labeled HT-224 or similar 32A 4-pin configurations.
Current Rating: 32 Amp.
Number of Poles: 4 Poles (3P+E or 3 Pins + Earth).
Voltage Rating: 380 - 415V (Red color-coded for 3-phase).
IP Rating: IP44 (Splash-proof) or IP67 (Watertight).
Material: High-grade Thermoplastic/Polyamide 6 with high thermal stability and impact resistance.
Contacts: Brass or Nickel-plated brass for enhanced corrosion resistance.
Cable Diameter Capacity: Typically accepts cable diameters from 11.5mm to 36mm, depending on the manufacturer and IP rating.
Standards: Conforms to IEC 60309-1 and 60309-2.
Clock Position: 6h.
Operating Temperature: -25°C to +55°C/+65°C.
