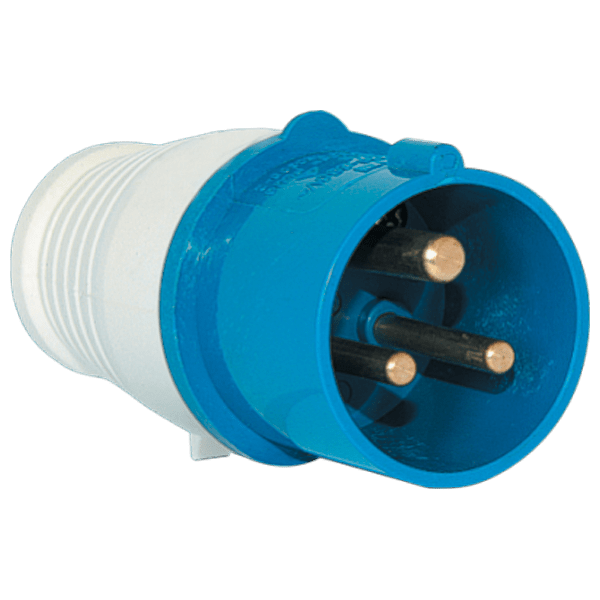

The AM-013 (often designated as 013-6 or similar) is a commonly used 3-pin (2P+E) industrial male plug, designed for single-phase, high-current, and durable outdoor/workplace applications.
Key Technical Specifications:
Plug Type: IEC 60309 / CEE Industrial Plug (Male)
Current Rating: 16 Amps
Voltage Rating: 230V – 250V AC (50/60 Hz)
Pin Configuration: 3 Pins (2 Pole + Earth / 2P+PE)
Polarization (Clock Hour Position): 6h (Earth pin at 6 o'clock)
Ingress Protection: IP44 (Splash-proof/Waterproof)
Material: High-strength, flame-retardant, and corrosion-resistant thermoplastic or nylon
Connection Method: Screw terminals
Cable Gland: Designed for cable diameters between 6mm and 15mm
Contact Material: Solid brass or copper-zinc alloy (CuZn)
Features & Usage:
Application: Widely used in construction sites, industrial factories, workshops, agriculture, and power tools.
Design: Often features "Shark" (PCE) or similar ergonomic housing for easy handling, and captive screws.
Safety: The blue color signifies 200–250V voltage, and the design protects against dust and water spray.
