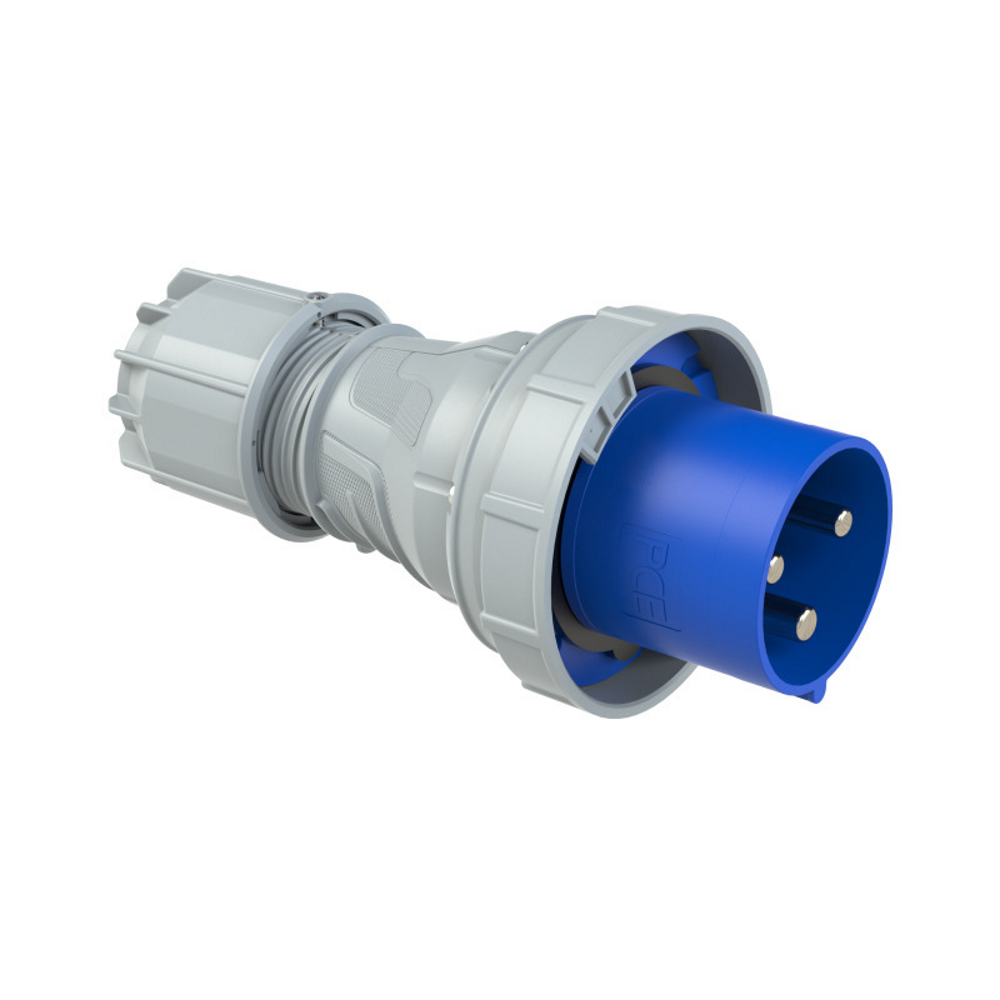

AM-043" refers to a 125A 3-pole (2P+E) CEE industrial plug, typically manufactured by PC Electric (PCE) or similar manufacturers conforming to IEC 60309 standards.
Key Specifications for PCE 043-6xs (125A 3P 6h IP67):
Article Number: 043-6xs (or 043-6)
Amperage: 125 A
Number of Poles: 3 (2P+E - 2 Pole + Earth)
Voltage: 200–250 V~ (Blue color code)
Frequency: 50+60 Hz
Clock Position: 6h
Protection Rating: IP66/IP67 (Waterproof/Watertight)
Connection Technology: Screwed terminals (frame terminals)
Cable Entry: Gland nut
Material: Plastic (PA6)
Contacts: Brass, nickel-plated
Plug Type: Straight.
Key Features:
POWER TWIST: Often features a robust, high-current design (Power Twist).
Safety: Designed for high-duty, heavy-industrial, or construction applications.
