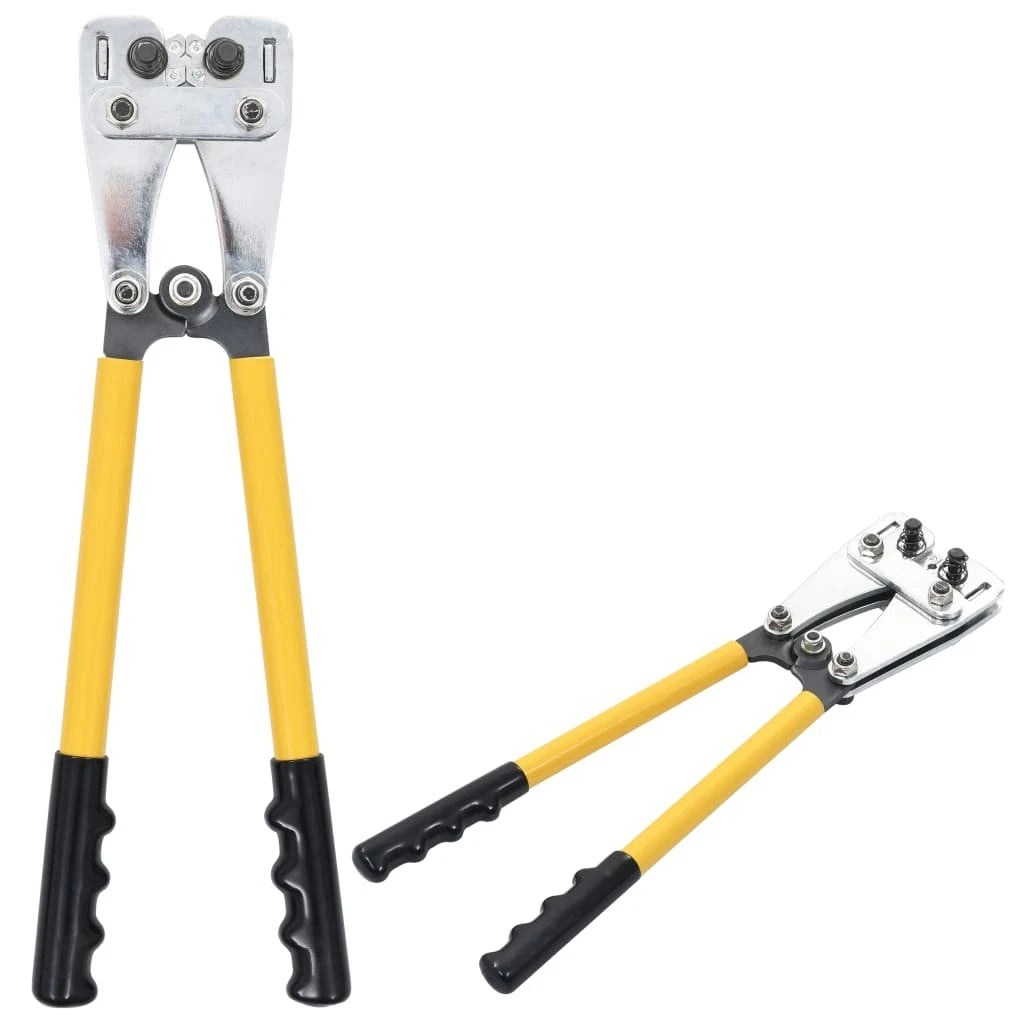

The HX-50B is a manual, heavy-duty crimping tool designed for soldering-free and standard electrical connections on copper and aluminum terminal cable lugs. It is widely used by electricians for battery cables, welding cables, and other cable crimping tasks.
Key Specifications:
Crimping Range: 6-50 mm² (equivalent to 10-0 AWG or 8-1/0 AWG).
Adjustment Levels (Settings): 6mm², 10mm², 16mm², 25mm², 35mm², 50mm².
Crimping Profile: Hexagonal rotating dies (6 pairs).
Material: Hardened #45 carbon steel (with rubber or PPE handle).
Length: Approximately 385mm - 400mm (15-16 inches).
Weight: Approximately 1.3 kg - 1.5 kg (2.9 - 3.3 lbs).
Features: Revolving dies, non-slip handles, and a high-leverage design for heavy crimping.
Product Details & Features:
Rotatable Dies: The tool features rotating dies that allow for quick and easy adjustment of the crimping size.
Mechanism: The tool uses a manual, non-ratcheting mechanism with long handles to ensure sufficient pressure for a solid crimp.
Versatility: Suitable for both, aluminum and copper terminals.
Applications: The tool is suitable for inverters, batteries, RVs, trucks, and other power mechanisms.
Construction: The tool is constructed from high-carbon steel and, according to some models, features thickened and reinforced metal plates for increased durability.
Included Components: Some versions come with a set of copper ring terminals.
