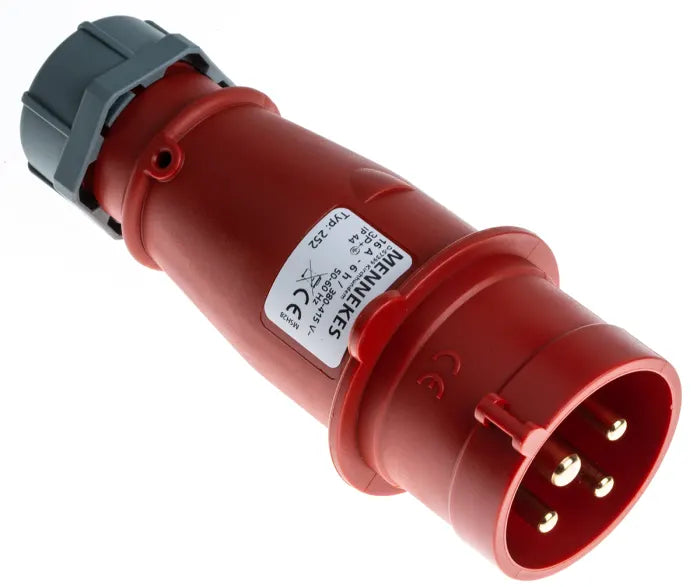

AM-044" is part of the MENNEKES AM-TOP industrial plug series, specifically corresponding to 4-pole or 4-pin configurations, usually rated for red 3-phase, 400V, or similar heavy-duty applications.
Specifications for Mennekes AM-TOP Industrial Plugs (specifically 4-pole variants based on 0.1.3, 0.1.4, 0.1.14):
Core Specifications (Typical AM-TOP 4-Pole)
Brand: MENNEKES (AM-TOP series)
Amperage: Commonly 16A or 32A
Voltage: 380–415V (Red - for 3-phase)
Poles: 4-Pole (3P+E or 3P+N+E, where 4Pin is usually 3P+E)
IP Rating: IP44 (Splash-proof) or IP67 (Watertight)
Clock Position: 6h
Material: Amaplast (Nylon 6) - highly heat resistant and impact resistant.
Technical Features:
Termination: Screw terminals
Cable Entry: Gland with sealing
Operating Temp: -25°C to +55°C
Contacts: Brass, with options for nickel-plated contacts
Design: Single-part body with integrated strain relief
Common Configurations
16A 4P 400V: 3P+E, Red, IP44 (often part no. 252 or similar)
32A 4P 400V: 3P+E, Red, IP44/IP67
