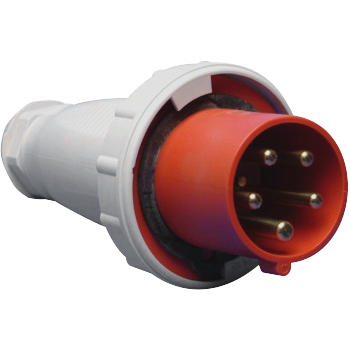

The AM-045 (often referred to as 045-6 or CM1-045) is a heavy-duty CEE industrial plug designed for high-power, three-phase applications, typically in industrial environments, construction, and with heavy machinery.
Key Specifications for AM-045 (125A 5P 6h IP67):
Rated Current: 125 A
Rated Voltage: 380-415 V~ (3P+N+E, Red)
Number of Poles: 5-pin (3 Pole + Neutral + Earth / 3P+N+E)
Clock Position: 6h
IP Protection Class: IP66/IP67 (watertight/dustproof)
Connection Technology: Screw terminals (frame terminals with screws)
Housing Material: PA6 (Polyamide) or PA66
Cable Diameter Range: 22.5 mm – 50 mm
Frequency: 50+60 Hz
Contact Material: Brass (often nickel-plated)
Weight: Approx. 1.169 kg.
Key Features:
Power Twist: Designed for secure, locking connections.
Durability: Suitable for extreme operating conditions.
Safety: Incorporates a pilot pin.
Standards: Conforms to IEC 60309-2.
