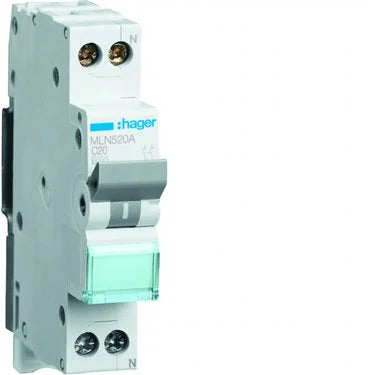

Hager Miniature Circuit Breakers (MCBs) are modular protection devices (DIN rail mount) commonly rated for 230-400V/AC with 6KA or 10KA breaking capacities. Available in 1P, 2P, 3P, and 4P configurations, they feature tripping curves B, C, or D, with current ratings from 0.5A to 125A for applications in domestic and light commercial circuits.
Tripping Curves:Type B: Quick tripping, suitable for resistive loads (lighting, heating).
Type C: Medium tripping, suitable for general lighting and appliance circuits.
Type D: Slow tripping, suitable for high inrush current loads (motors, transformers).
Mounting: DIN Rail (35mm).
IP Rating: Generally IP20, suitable for panel installation.
Endurance: Approximately 4,000 electrical cycles and 20,000 mechanical operations.

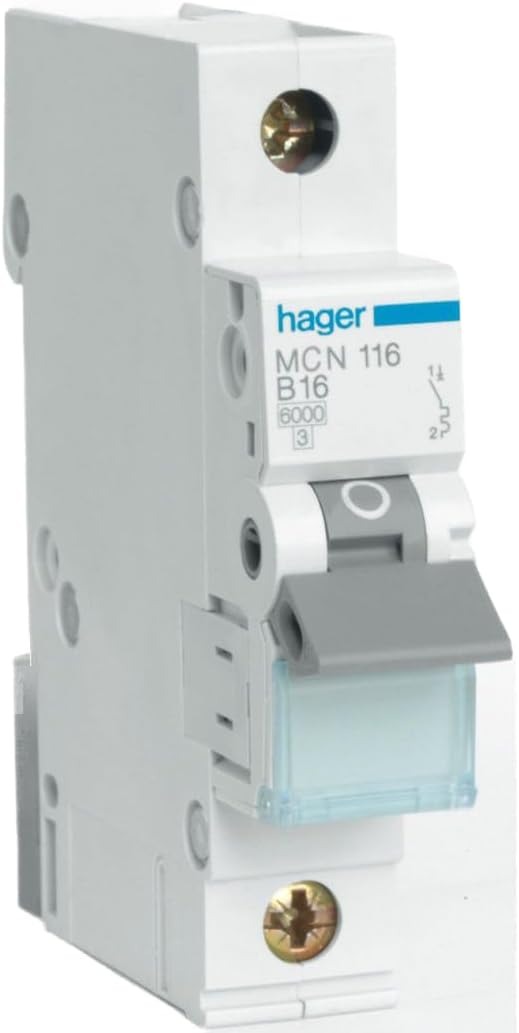

Common Model Series Hager MCN: 6kA or 10kA Type C, 1-4 Pole (e.g., MCN316).Hager MW/MU: 6kA, 1-4 Pole (e.g., MU240A).

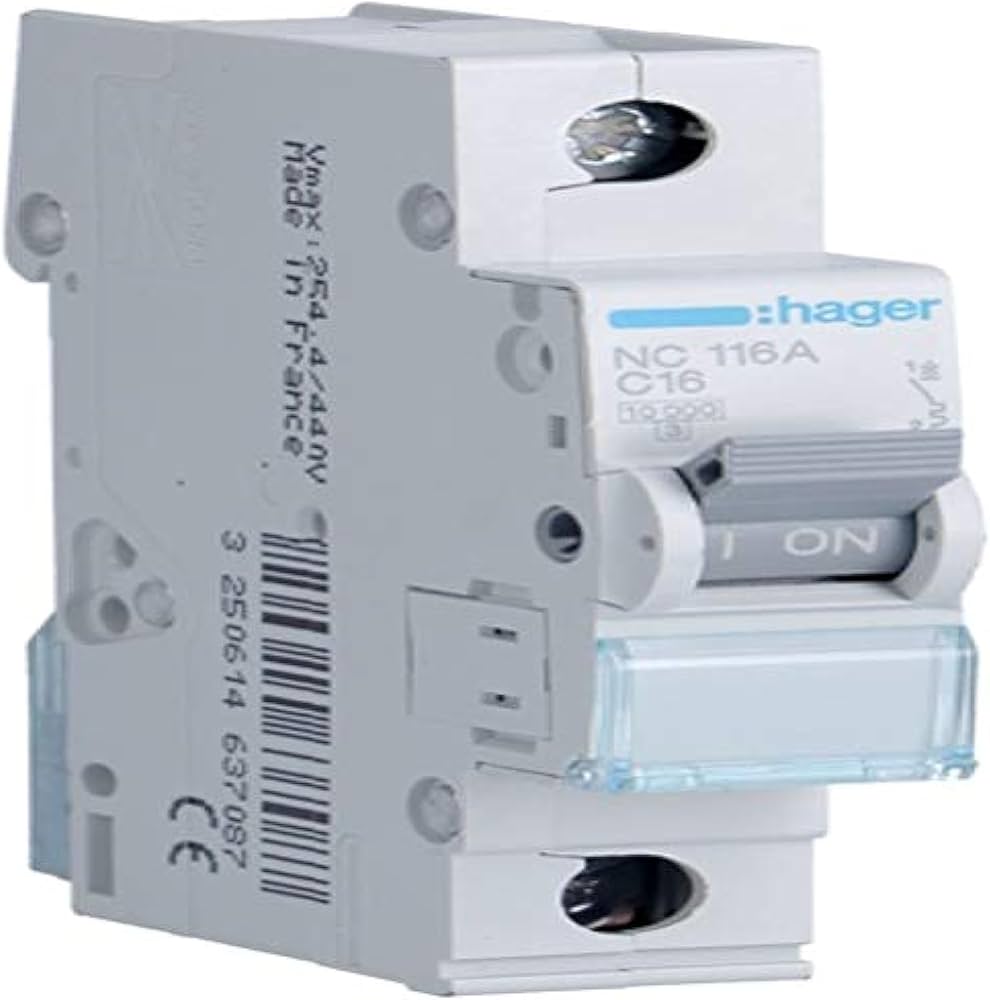

Hager NC: 10kA Single Pole/Multi-pole.
These devices are designed to comply with IEC 60898-1 and IEC 60947-2 standards.
