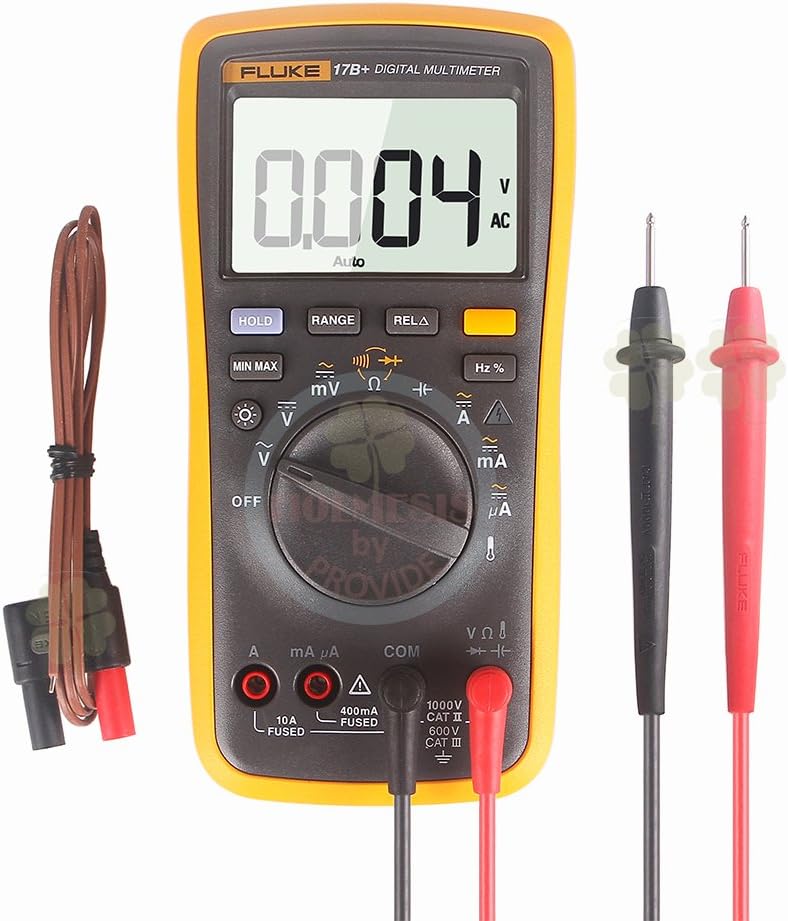

The Fluke 17B+ is a versatile digital multimeter for electricians, offering AC/DC voltage (up to 1000V), AC/DC current (up to 10A), resistance, continuity, capacitance, frequency, and temperature measurements, with a 600V Cat III safety rating, large backlit display, and data hold. Key specs include 40MΩ resistance range, 1000µF capacitance, 100kHz frequency, 10A current, and a robust design for troubleshooting electrical systems.
Key Specifications
Voltage (AC/DC): Up to 1000V
Current (AC/DC): Up to 10A
Resistance: Up to 40 MΩ
Capacitance: Up to 1000 µF (40nF - 1000µF range)
Frequency: Up to 100 kHz
Temperature: Included measurement
Safety Rating: CAT III 600V, CAT II 1000V
Display: Large, easy-to-read with bright white backlight
Features: Data Hold, Diode Test, Min/Max Mode (for most functions)
Power: Battery operated, ~500 hours life
Functions
Voltage (AC/DC)
Current (AC/DC)
Resistance
Continuity
Capacitance
Frequency
Temperature
Duty Cycle
Diode Test
Physical & Safety
Dimensions: 183 x 91 x 49.5 mm (H x W x L)
Weight: Approx. 455g
Fuse Protection: Yes (440mA & 11A fast fuses)
