Ferrule printing machines are specialized, compact, thermal transfer printers designed for wire marking, typically offering 300 dpi resolution and speeds of 25-40mm/sec.
Key specifications include handling PVC tubes (1.5-8.0mm)heat shrink tubes, and adhesive tapes, with automatic half-cutting. Popular models feature USB/Wi-Fi connectivity, internal memory, and LCD screens.
Key Technical Specifications: Printing Method: Thermal transfer (no ink required, uses ribbons).Resolution: 300 dpi (dots per inch).Printing Speed: Approx. 25mm/s to 40mm/s. (high-speed models).Tube Diameter Range: 1.5mm to 8mm(pvc) and 0.2 to 6.5mm Heat Shrink.
Tape Widths: 5,9,12,18,24,36mm varies by model.
Cutting Method: Automatic half-cut, full-cut.Display: LCD dot matrix, often backlit.Connectivity: USB 2.0, USB flash drive, or Wi-Fi (e.g., Brother PT-E850TKW).
Memory: Up to 250,000 characters or 100+ files.Power Supply: AC Adapter (100V-240V) or optional rechargeable batteries.

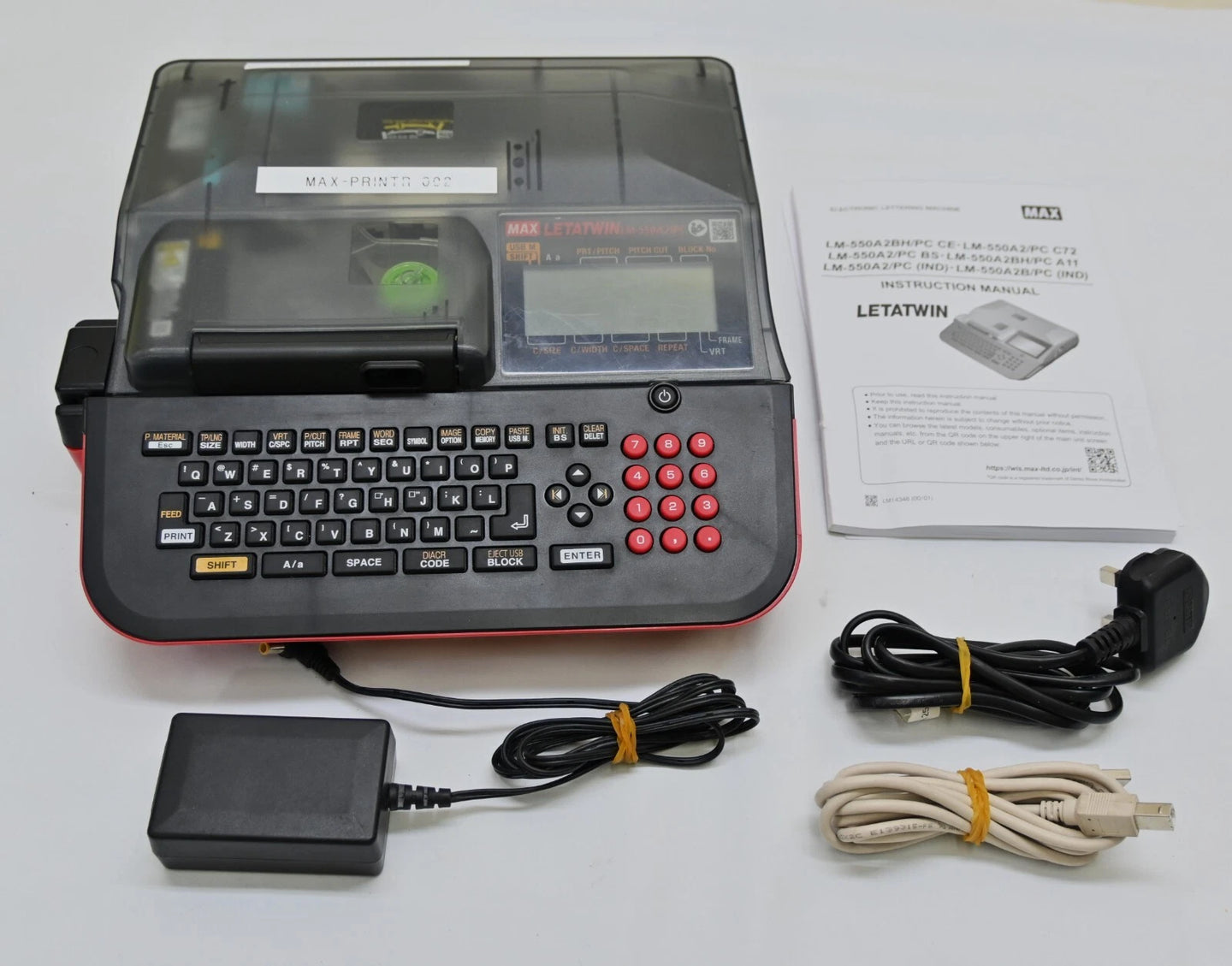

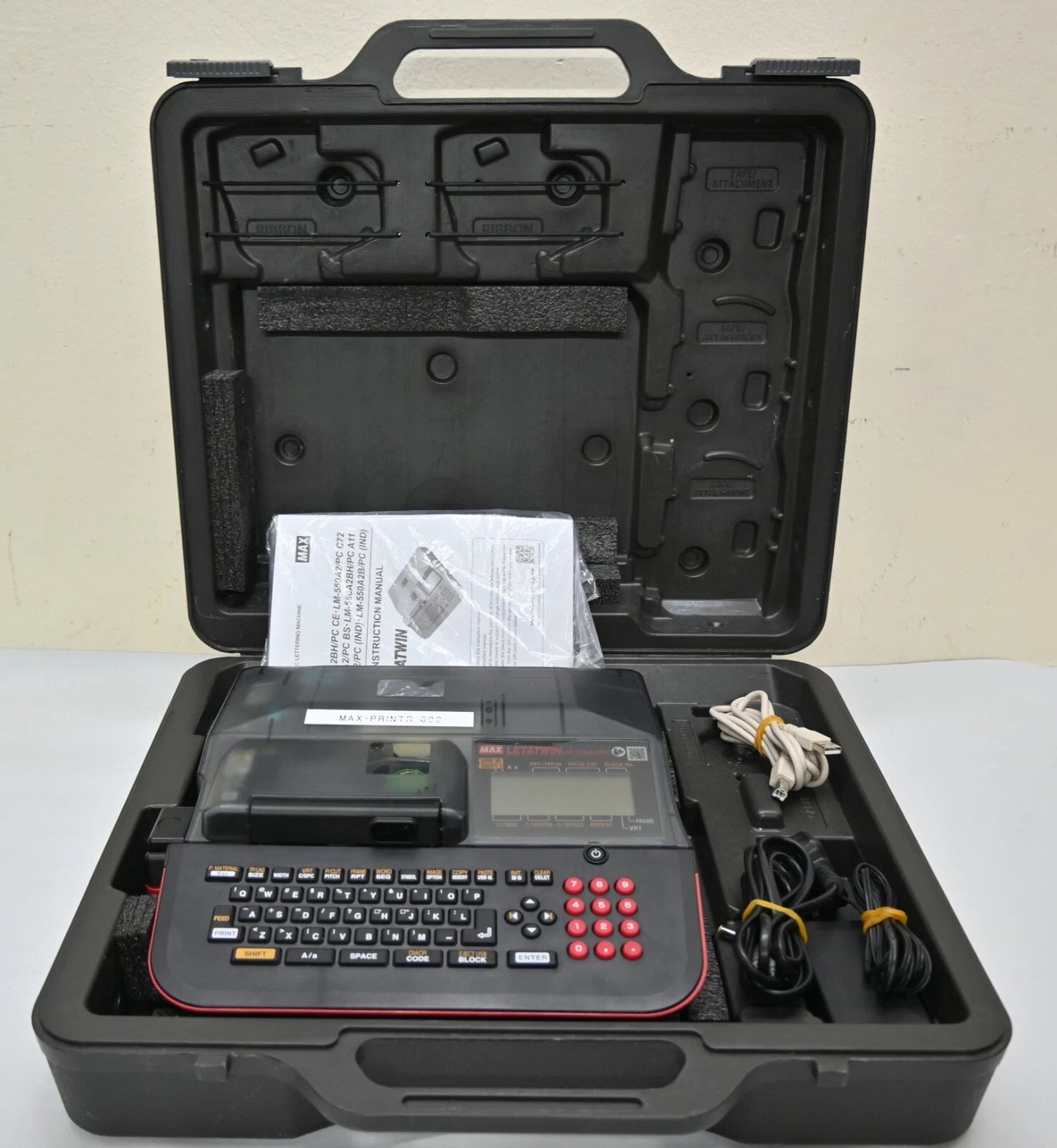

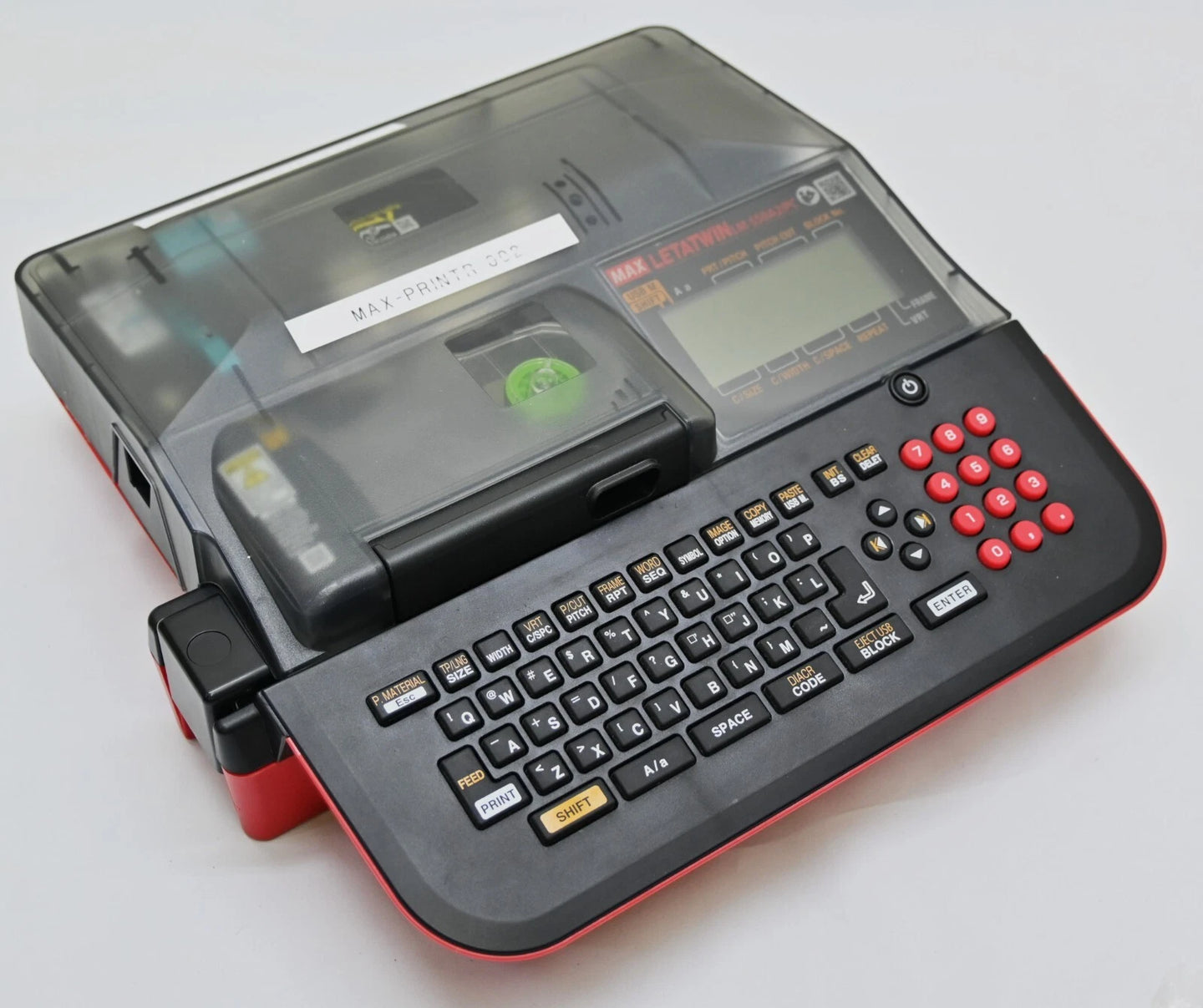

Common Models & Features: MAX Letatwin LM-550A/PC: 300 dpi, 40mm/s speed, 1.3-6mm character height.Brother PT-E850TKW: Supports up to 36mm tape, wireless LAN, automatic cutting.Canon MK-3000: 300 dpi, 160 x 64 dot LCD, 2-6mm character size.SUPVAN TP80E: 300 dpi, 40pcs/min speed, thermal transfer. Input and Operation:
Character Sizes: Typically 1.3, 2, 3, 4, or 6mm height.Input Modes: Alphanumeric, symbols, special characters.Environment: Operating temperature usually 10C-35C. These machines are essential for electrical panel building, cable management, and industrial construction, providing durable, clear, and organized identificatification.
