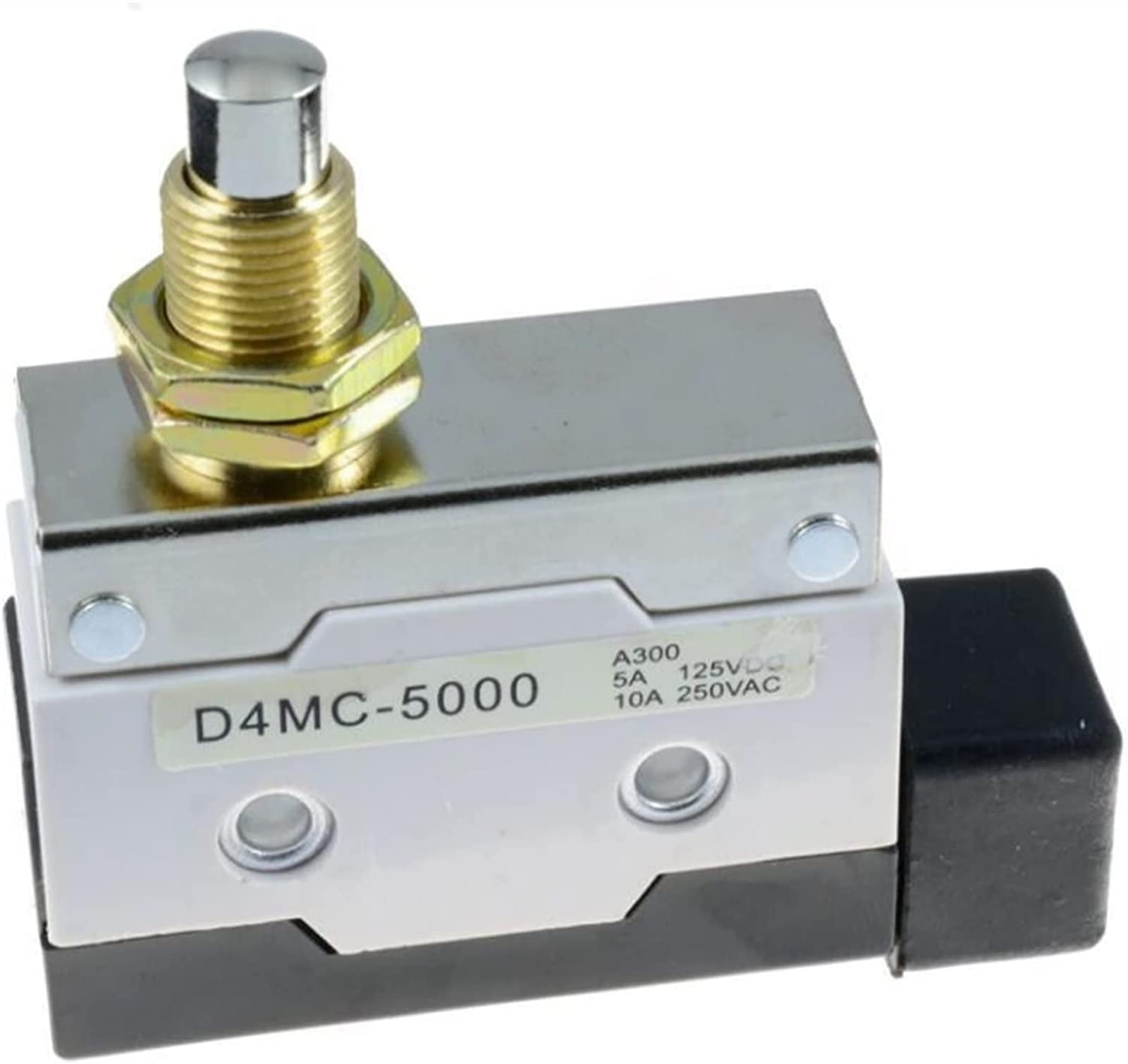

The D4MC-5000 is an enclosed limit switch with a panel mount plunger, featuring a SPDT (Single Pole Double Throw) contact form and IP67 rating for durability.
It handles 10A at 125/250 VAC, making it suitable for, amongst other things, machinery and industrial applications.
Key Specifications: Actuator Type: Panel Mount PlungerContact Configuration: SPDTCurrent Rating: 10 A (AC), 6 A (DC)Voltage Rating: 250 VAC max, 30 VDCIP Rating: IP67Operating Temperature: -10 to 80°C.
mmOvertravel (OT) Min: 5 mmMounting: Two 4.3mm mounting holes or M12 thread
Electrical Ratings (AC): Resistive Load: 10 A at 125/250 VACInductive Load: 10 A at 125/250 VAC .
The switch has a robust construction, typically featuring a metal housing and a stainless steel plunger, designed for high-precision, long-life applications.
