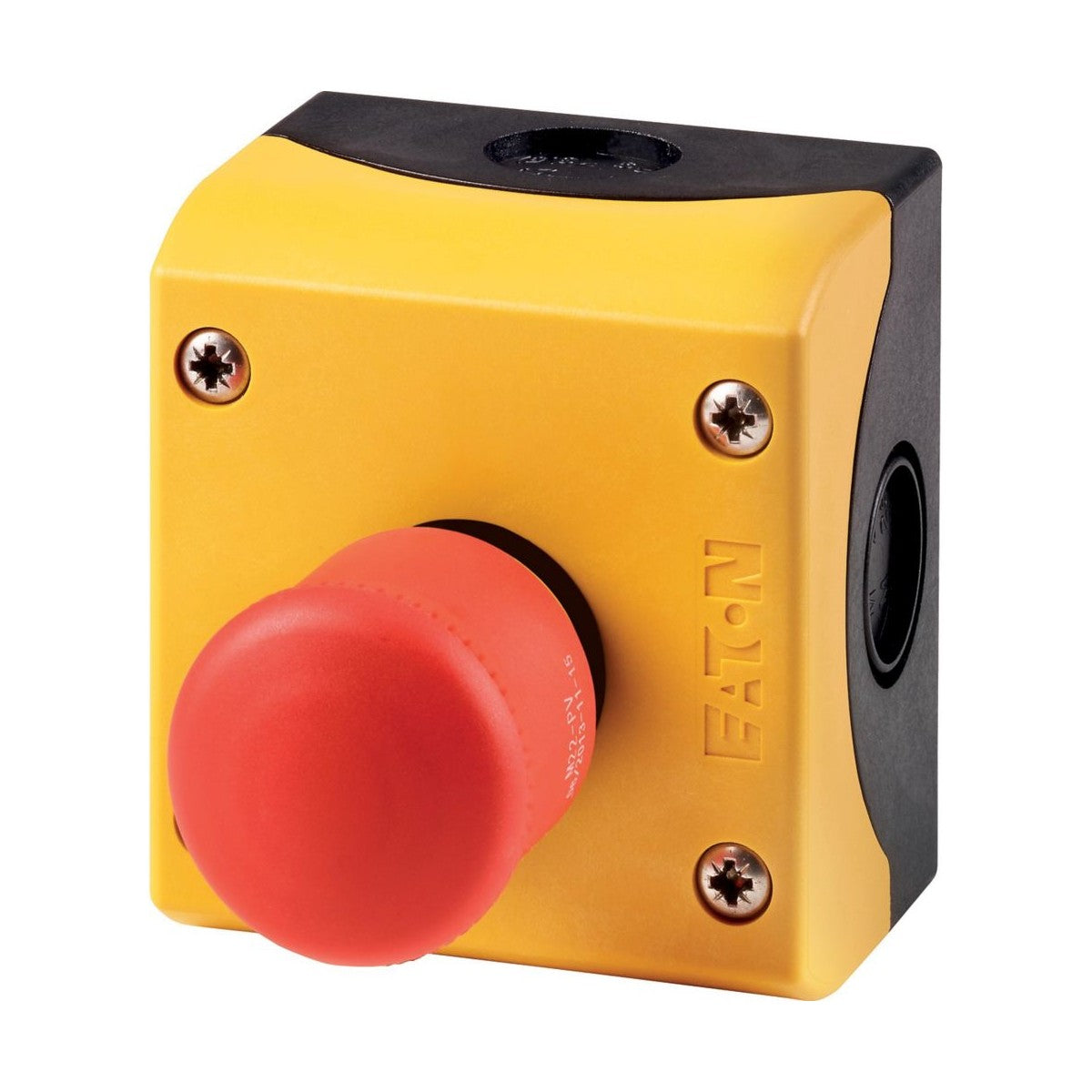

Eaton Moeller A22-RPV/KC/I emergency stop pushbutton with a surface-mounting enclosure.
Product Information:
This complete unit is designed for use as a safety control mechanism in industrial and commercial applications, ensuring immediate shutdown of machinery when activated.
Brand & Series: Eaton Moeller Series.
Part Number (Cat. No.): A22-RPV/KC/I.
Type: Emergency stop pushbutton.
Operation: Features a red mushroom head and is a pull-to-reset (or direct lift reset) type. Pushing it activates the stop immediately, and pulling it back releases it.
Mounting: Designed as a complete unit for surface mounting in the yellow enclosure shown.
Safety & Compliance:
Tamper-proof in accordance with ISO 13850/EN 418 standards.
Finger protection mechanism on the switch unit.
IP65 protection rating, making it dust and water-resistant.
Compliant with IEC/EN 60947 and VDE0660 standards.
Mounting Diameter: 22.3 mm.
Contacts: This specific model typically includes 1 normally open (N/O) and 1 normally closed (N/C) contact configuration.
