Electronic Temperature Controller AC110/220V

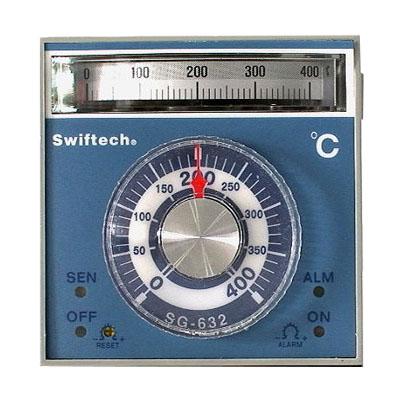

The SG-632 is a 96x96 mm panel-mounted industrial temperature controller, often featured in the "KE" or "SG" series from Taiwan-based manufacturers (such as KCE), typically used for ovens and industrial heating applications.

Key Specifications for SG-632:
Dimensions: 96 x 96 mm DIN panel mount.

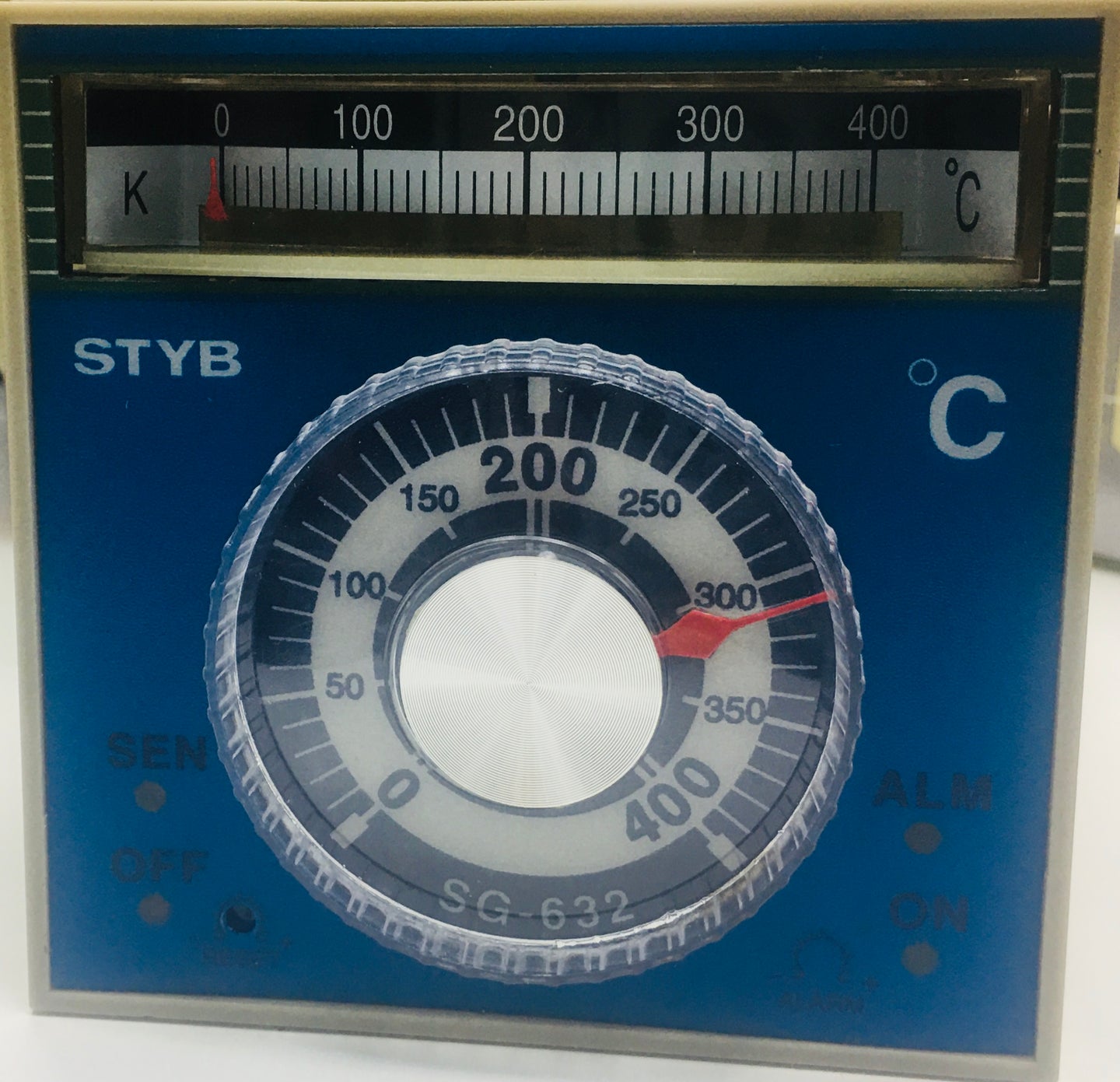

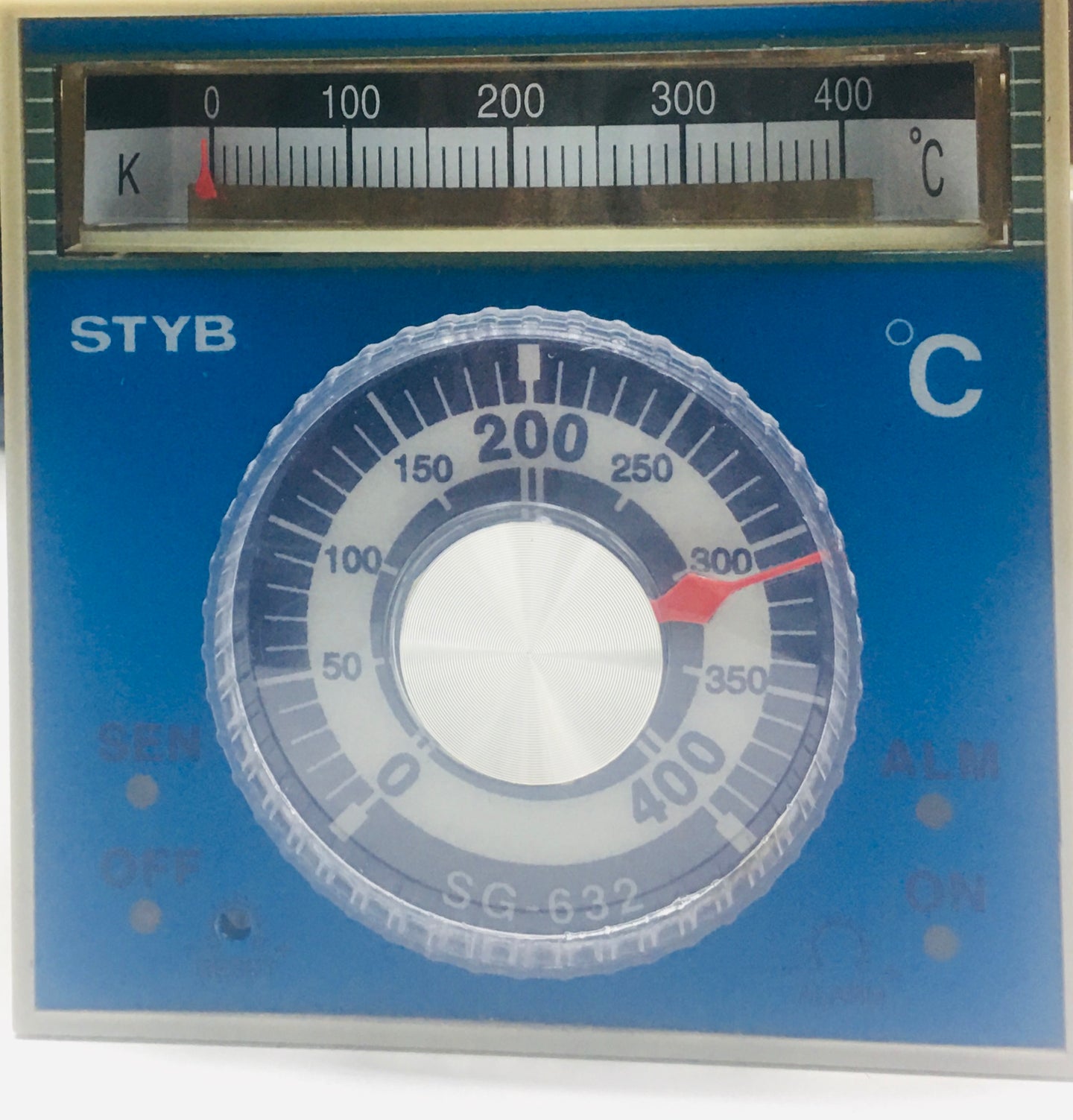

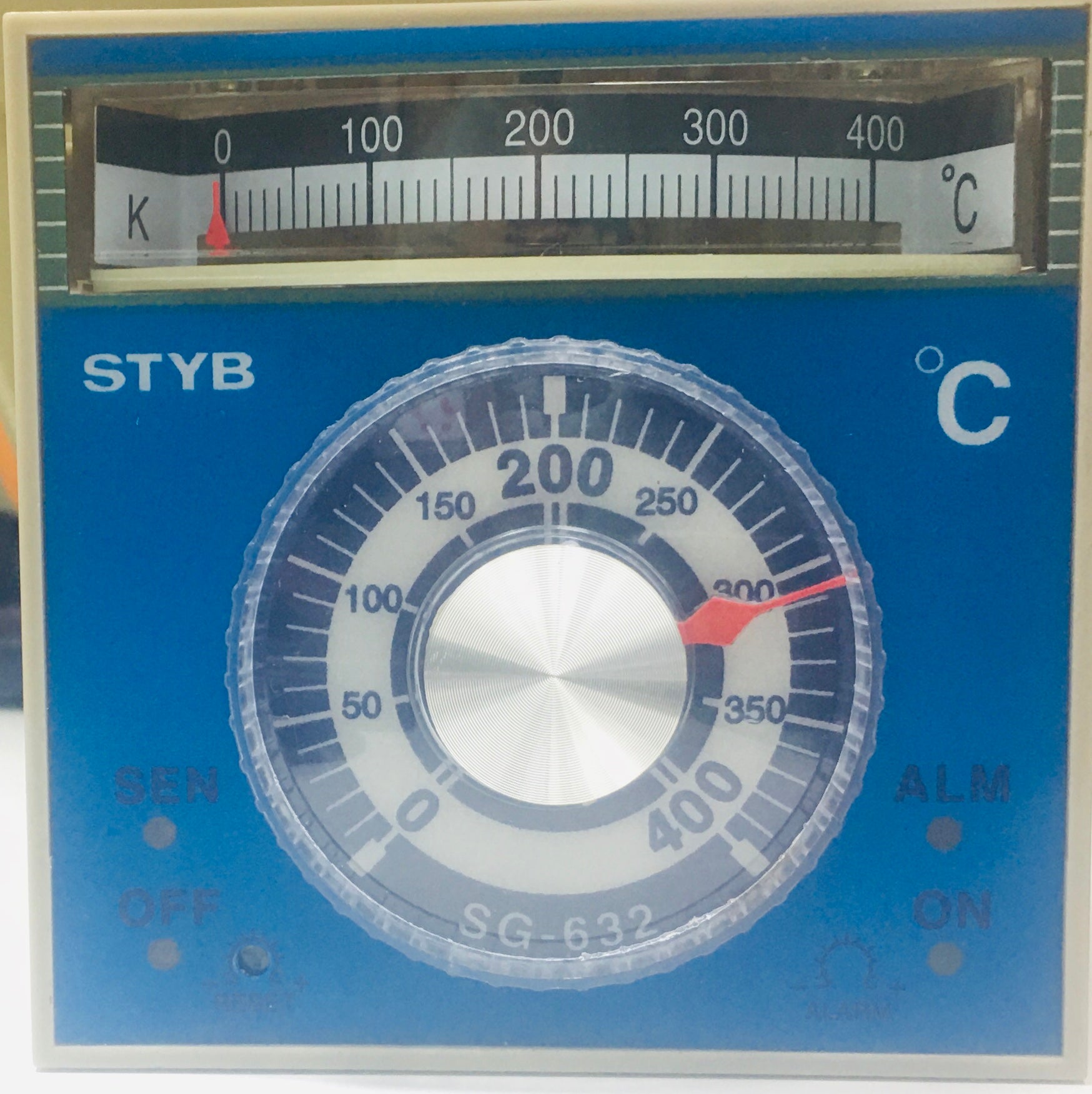

Display: 3 or 3½ digit LED display, often utilizing a pointer knob for setpoint adjustment (analog setting).

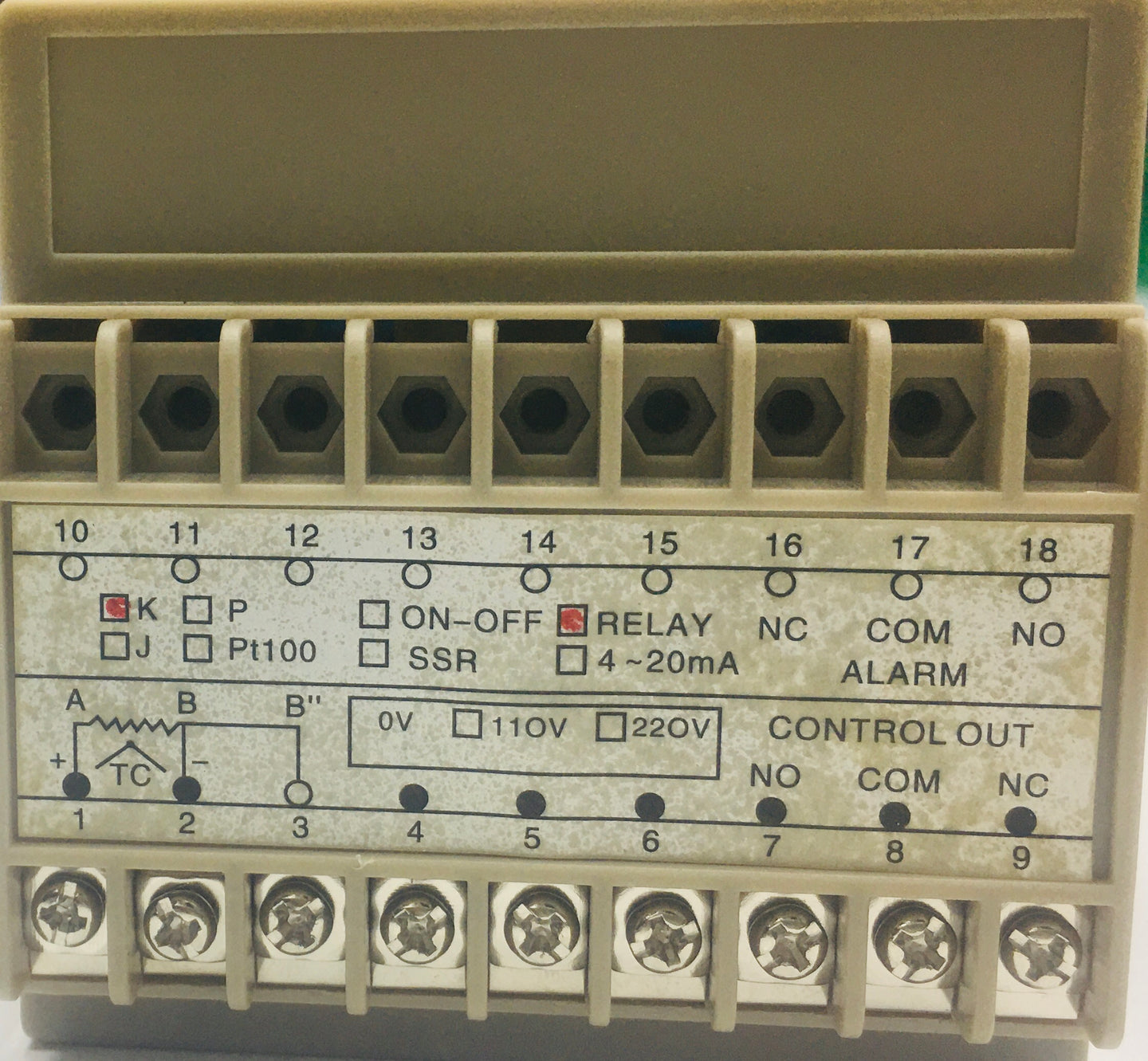

Input Types: Supports Thermocouple (K, J) and RTD (Pt100) sensors.
Control Modes: ON-OFF or Proportional (P) control.
Output Types: Relay Output (10 sec) or Voltage Output (SSR/DC 0-12V, 3 sec).
Power Supply: Typically 110/220V AC or 220/380V AC (range of 85-265V AC for some models).
Accuracy: ±1% Full Scale.
Operating Temperature: -10°C to 50°C.
Applications: Industrial ovens, furnaces, packing machines, and food industries.
