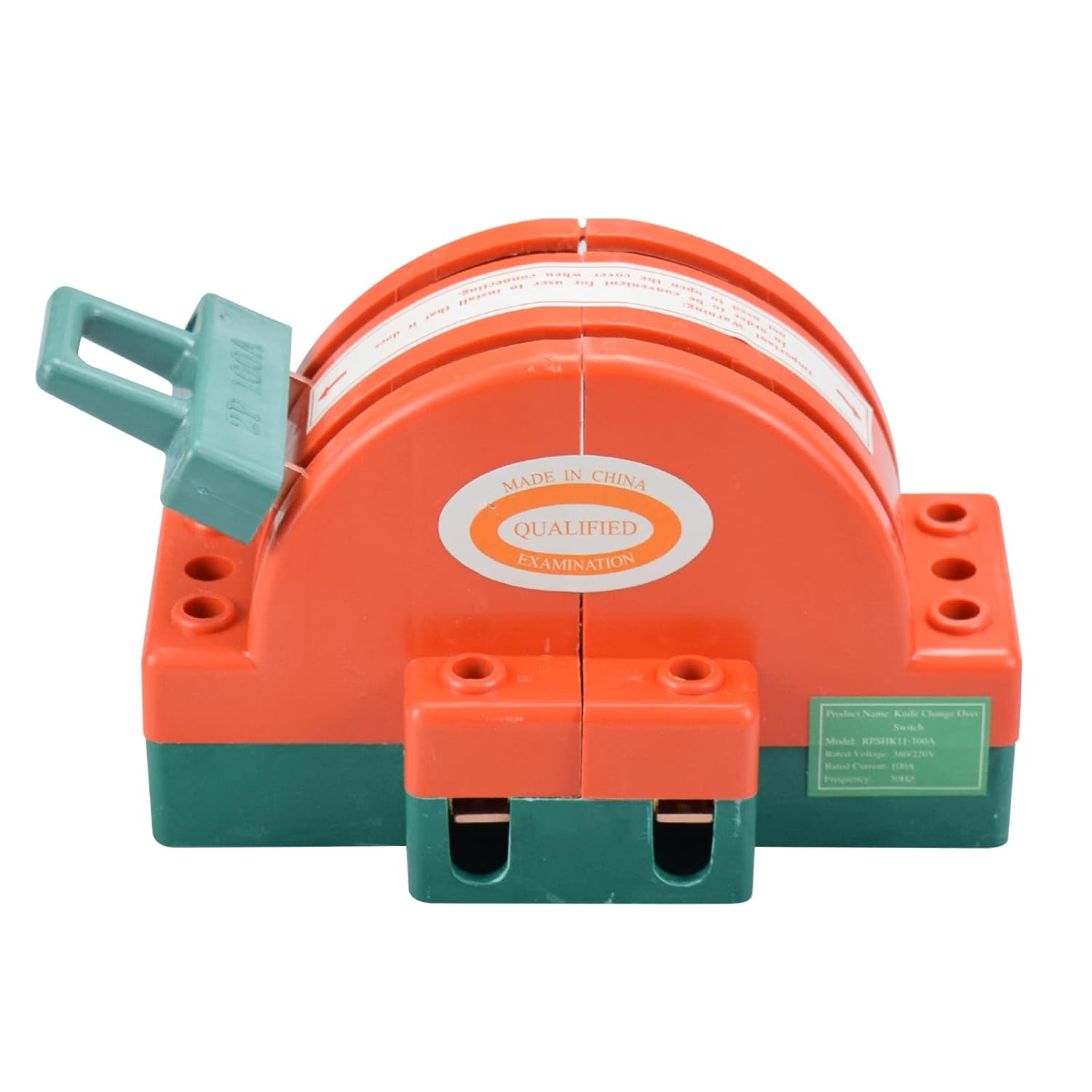

Disconnect Knife Switch Double Throw Two Way Switch

A disconnect knife switch is a manually operated electrical device designed to create a physical break (visible isolation) in a circuit to ensure safety during maintenance. These switches are generally built for industrial, commercial, and residential applications requiring infrequent switching, such as solar panels, motor circuits, and power distribution systems.

Voltage Rating: Typically rated for 240Vac, 480Vac, or 600Vac in industrial settings. Common small-scale or residential knife switches are rated for 0-380V or 220V.

Short-Circuit Current Rating (SCCR): Standard switches often have an SCCR of 10,000 rms symmetrical amperes. With Class R or J fuses, this can be increased to 100,000 or 200,000 rms amperes.

Horsepower Rated: Most heavy-duty disconnects are horsepower rated, often up to 200 hp at 240 Vac or 500 hp at 480/600 Vac.

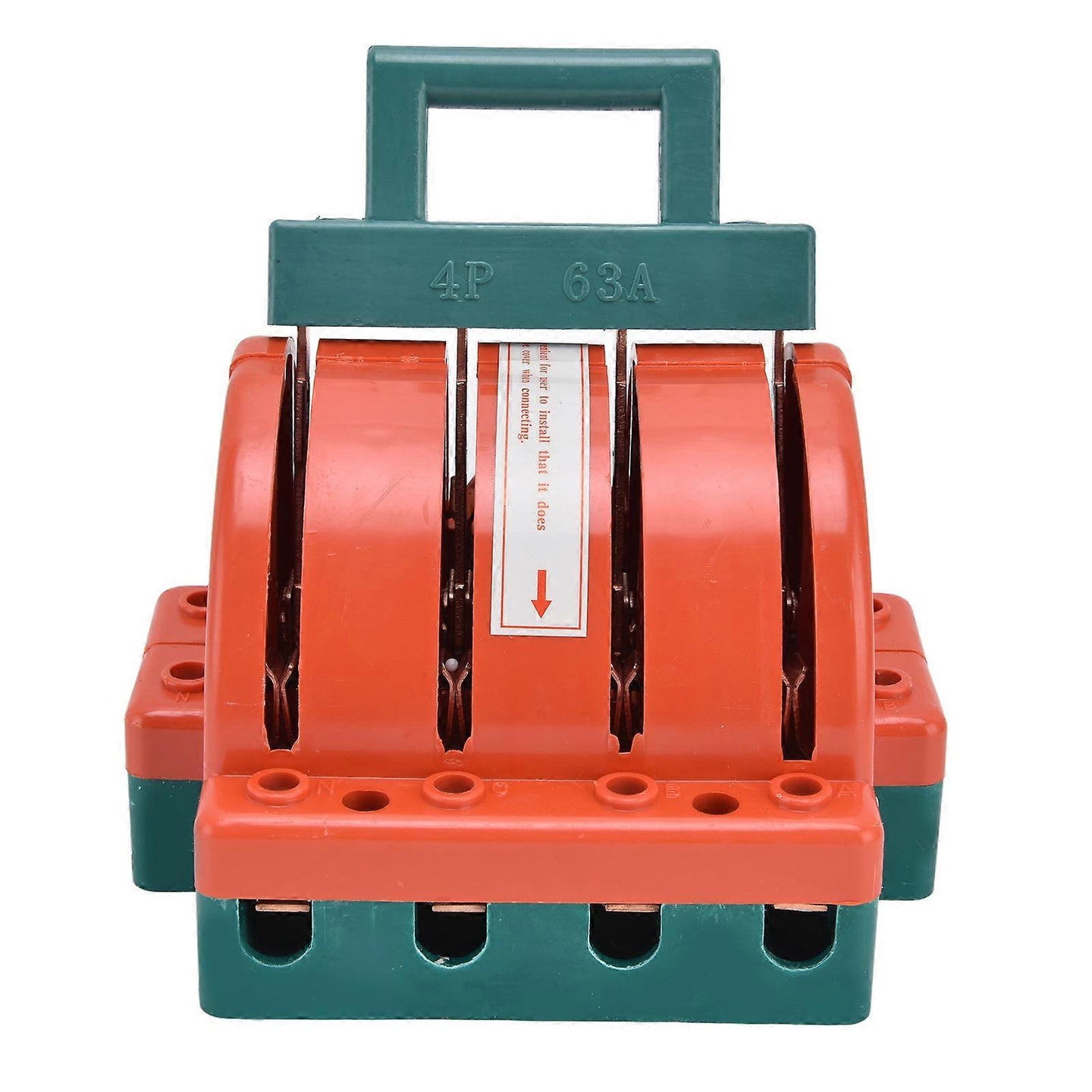

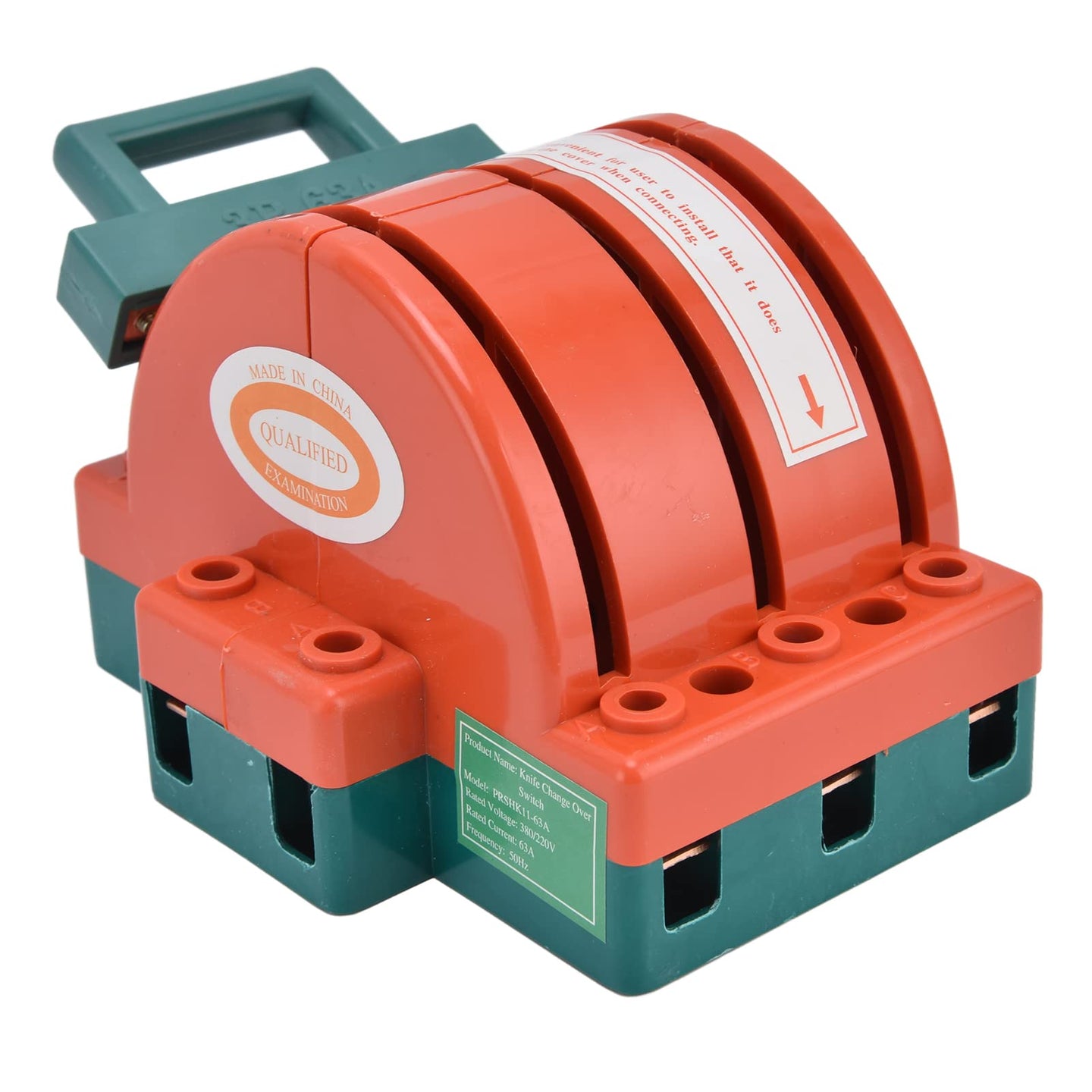

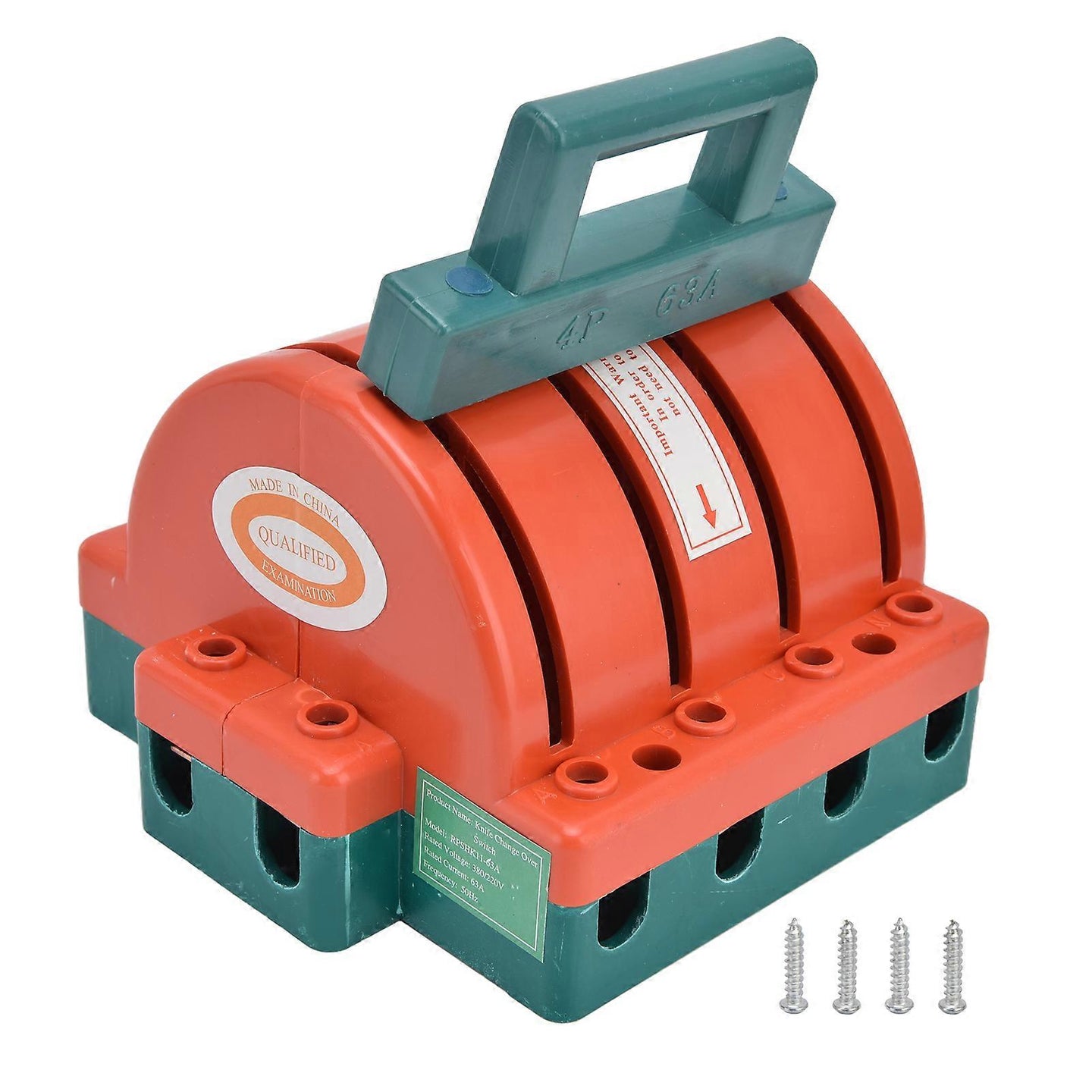

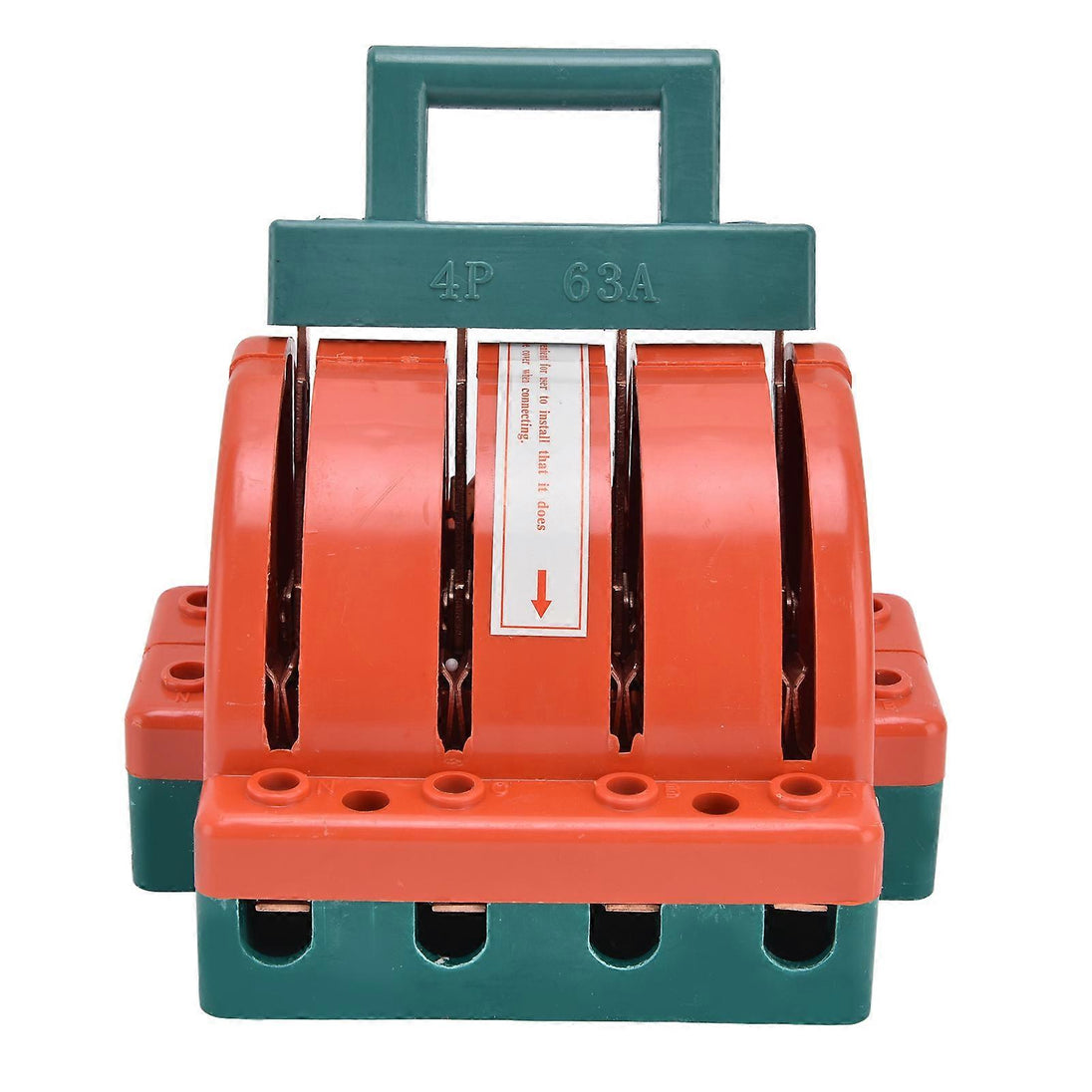

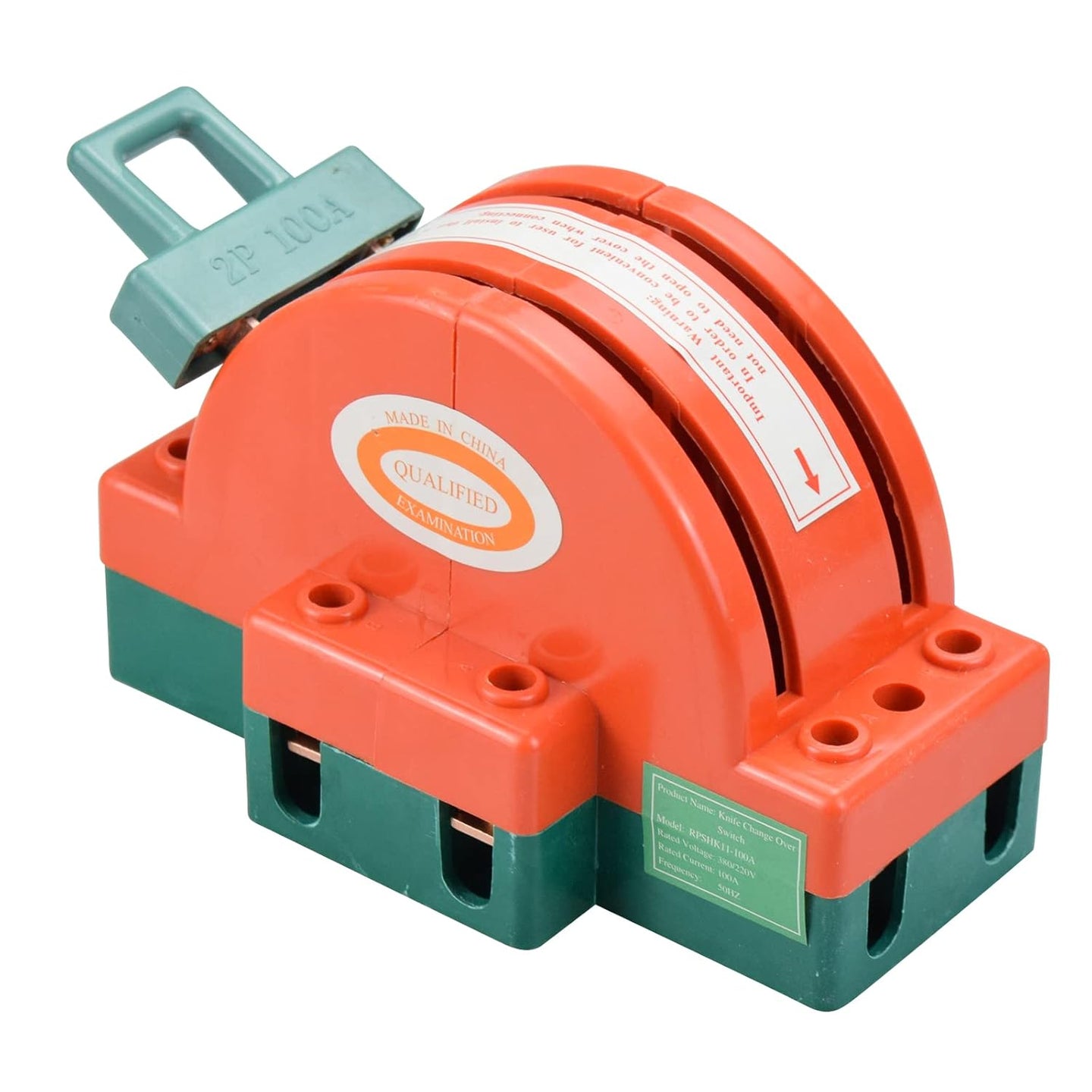

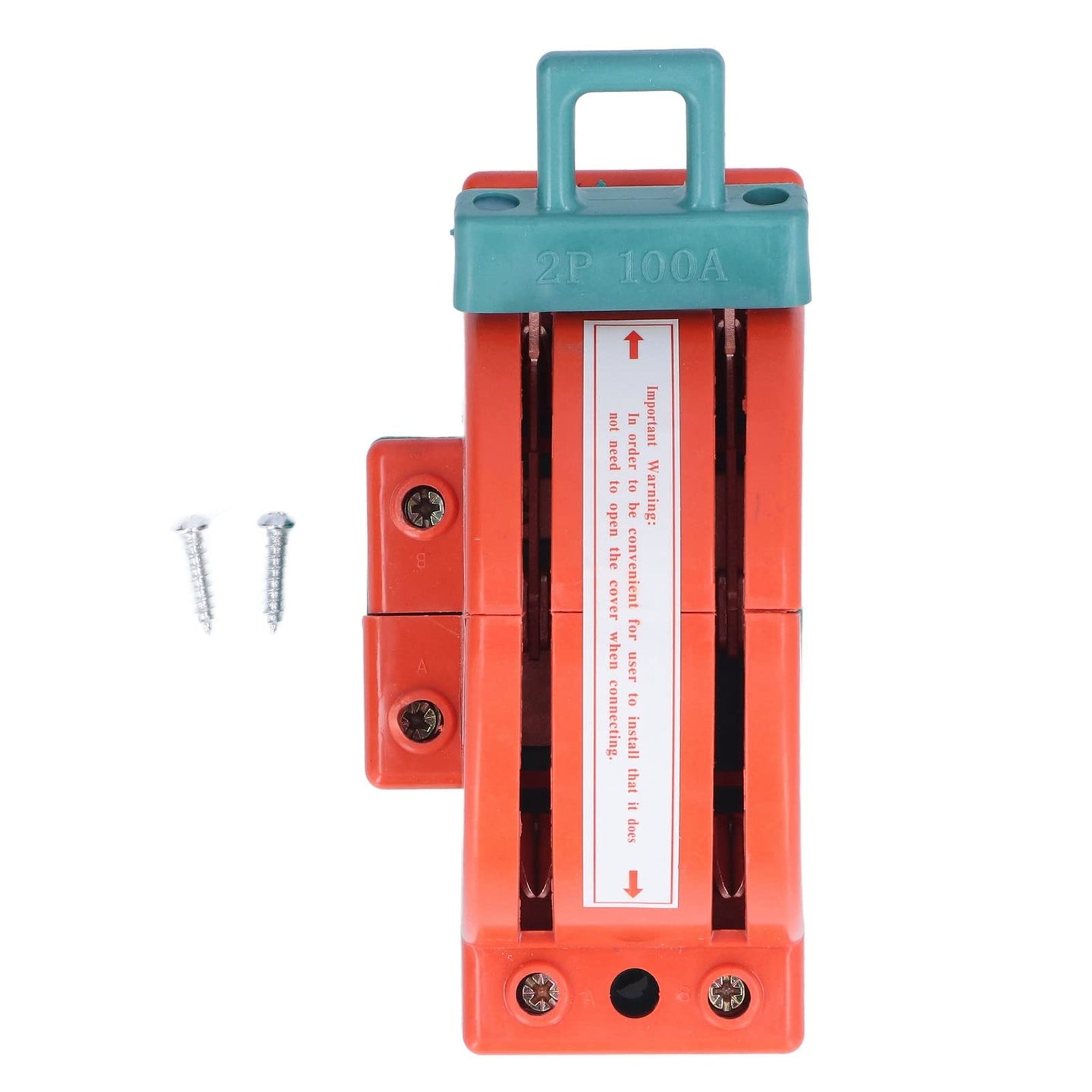

Configuration: Commonly available in 2-pole (DPST/DPDT) or 3-pole (TPST/TPDT) and 4-pole (TPST/TPDT) configurations.

Material: Usually constructed with copper conducting blades, mounted on an insulated base (e.g., ABS, porcelain, or phenolic resin).

Visibility: Features visible blades that clearly indicate whether the switch is in the ON or OFF position.

Safety Features: Often includes a handle that can be locked in the "OFF" position (Lockout/Tagout capability).

Switching Action: Often a quick-make, quick-break mechanism to minimize arcing.

Fail-safe Circuit Breakers: Providing a clear break in power.
Generator Switching: Switching between utility power and backup generators.
Motor Disconnects: Manually cutting power to motors for maintenance.
Solar/Renewable Energy: Isolating PV arrays, though they require specific attention to handle DC arcs.
