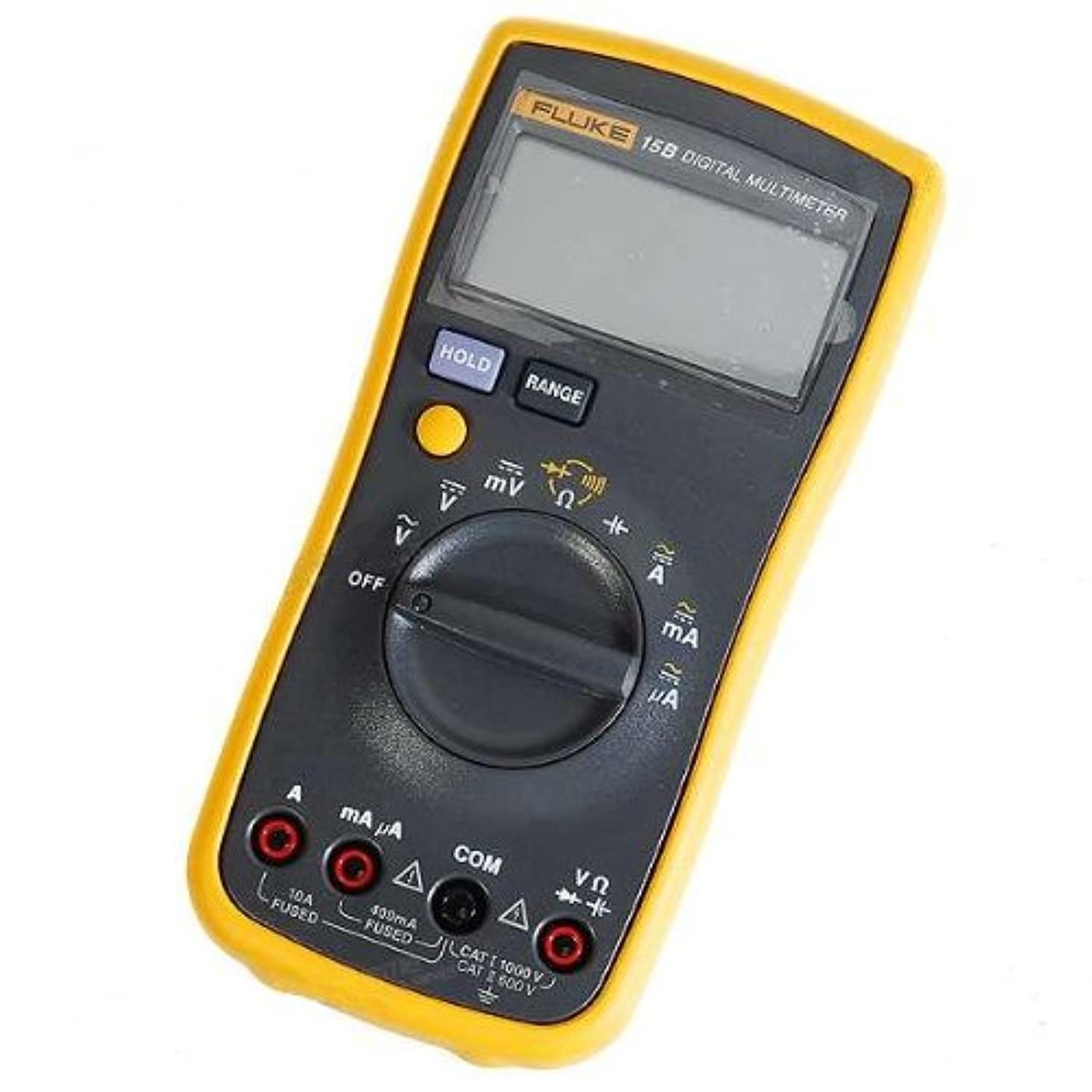

The Fluke 15B+ is a robust digital multimeter for basic electrical testing, offering up to 1000V AC/DC voltage, 10A AC/DC current, resistance (up to 40MΩ), and capacitance (up to 1000µF) measurements, featuring a large backlit 4000-count display, CAT III 600V safety rating, diode test, and 500-hour battery life, ideal for industrial and construction use.
Key Specifications
Voltage: 1000V AC/DC
Current: 10A AC/DC
Resistance: 40MΩ
Capacitance: 1000µF (40nF - 1000µF range)
Display: 4000 counts, large, backlit LCD
Safety Rating: 600V CAT III, 1000V CAT II
Functions: Voltage, Current, Resistance, Continuity, Capacitance, Diode Test, Data Hold
Battery: 2x AAA, ~500 hours life
Dimensions: 183 x 91 x 49.5 mm
Weight: ~455g
Protection: Fuse protection for current inputs (440mA & 11A)
Features
Backlight: Bright white for easy reading in low light.
User-Friendly: Easy one-hand operation, even with gloves.
Reliable: Rugged design for industrial environments
