The Leica DD300 CONNECT Utility Locator is a high-performance, IP65-rated locating solution designed for accurate underground utility detection using advanced signal processing and multi-frequency technology. It features 8GB memory, Bluetooth/USB connectivity for data management with DX Shield software, and a 10-hour battery life to map, trace, and record assets at depths up to 10M.
Operating Modes: Power, Radio, Auto, and multiple Transmitter frequencies (512 Hz, 640 Hz, 8kHz, 33kHz, 83kHz, 131kHz).
Depth Range: Lines (0.1m-7m) / (4in-23ft), Sondes (0.1m-10m)/(4in-32.8ft).
Connectivity: Bluetooth 4.0 (LE) and USB for data transfer to DX Shield software.

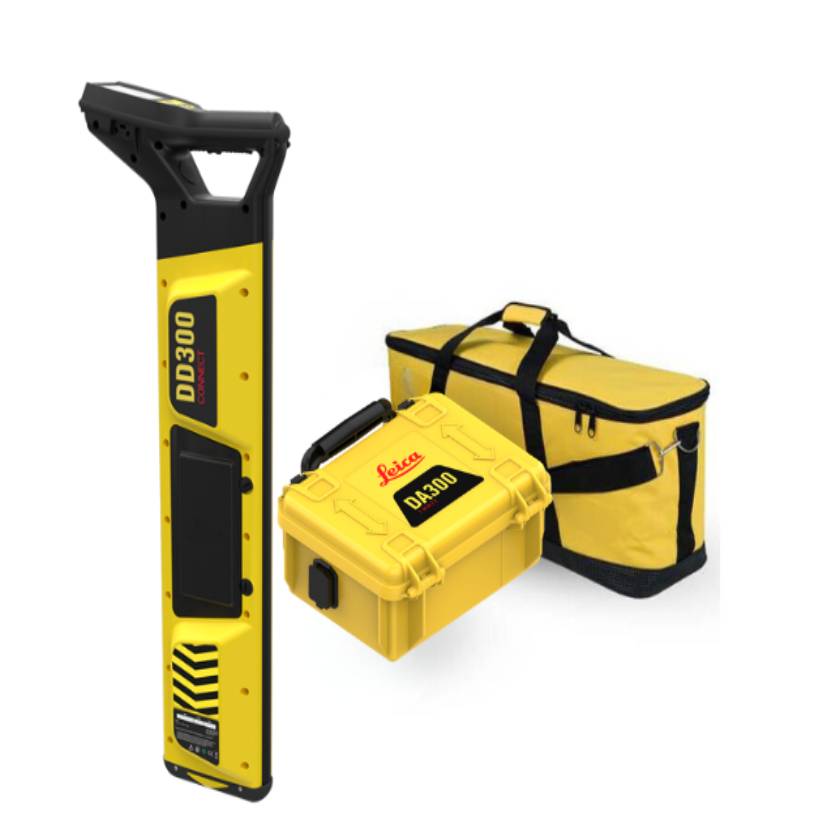

Solution Components:

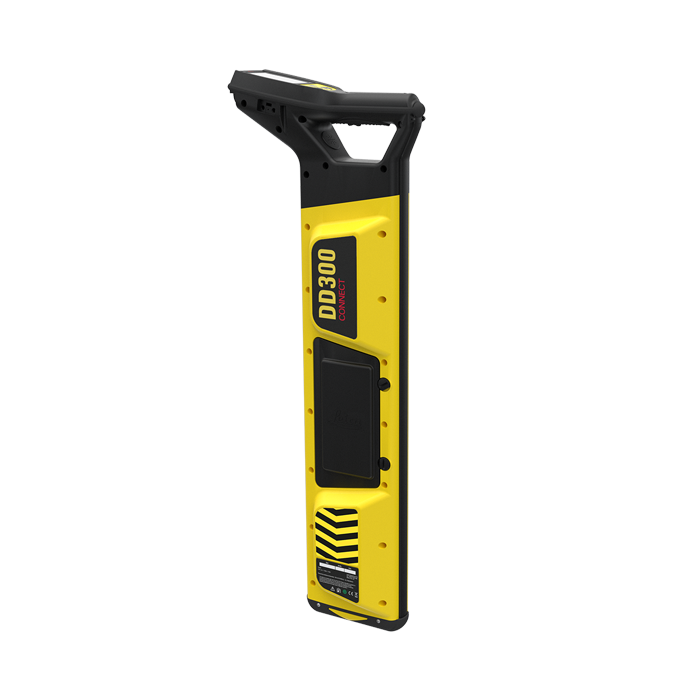

DD300 Locator: Features an LCD color screen with video tutorials for step-by-step guidance.
DA300 Transmitter: A signal transmitter that extends detection capabilities.
DX Shield Software: Enables data logging, GPS positioning, and usage analysis for improved site safety.
The device is designed for both novice and expert users, offering digital trim to improve detection accuracy in complex, congested, or multi-target environments.
