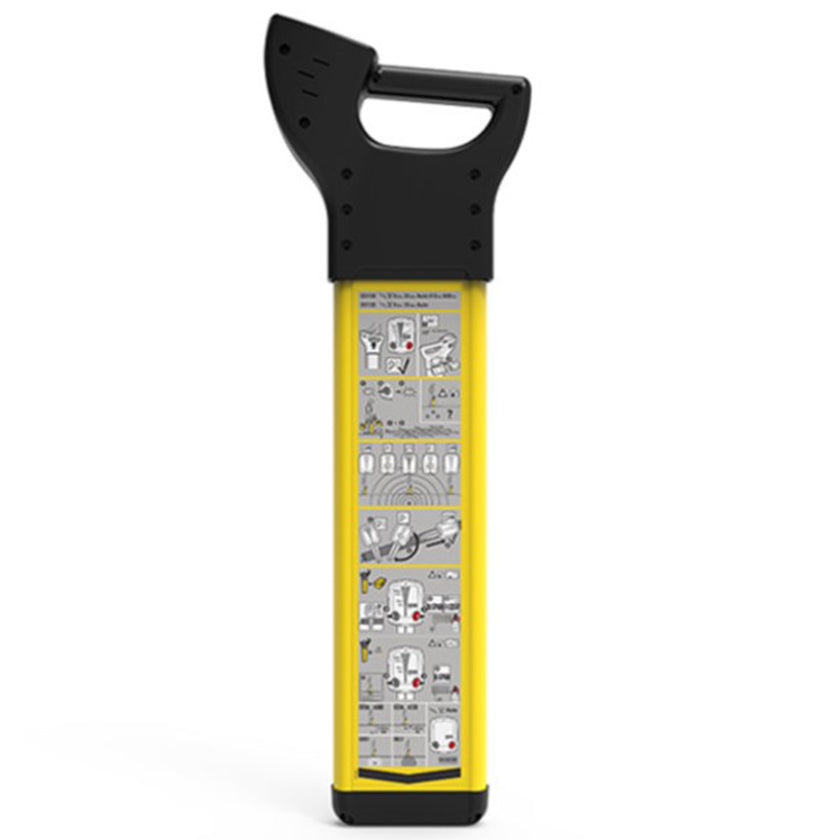

The Leica DD120 Series Utility Cable Locator is an easy-to-use, 2.7 kg (5.95 lbs) tool designed for detecting, tracing, and measuring the depth of underground pipes and cables up to 3 meters (10 ft) deep. It features Automatic Pinpointing, IP54 rating, and 15 hours of battery life, offering 50Hz or 60Hz models for, Power, Radio, and 33kHz modes.
Key Technical Specifications Detection Modes: Auto, Power 50/60Hz, Radio 15-60KHz, and Transmitter 33-8KHz.
Depth Range: 0.3m to 3m (1ft to 10ft) for both line and sonde.
Depth Accuracy: 10%.
Weight: 2.7 kg (5.95 lbs) including batteries.
Dimensions: 760mm x 250mm x 85mm (30" x 10" x 3.4").
Protection Class: IP54 (dust and water-resistant).
Power Source: 6 x AA (LR6) Alkaline batteries (15-hour battery life).
Features:
Automatic Controls: Simplifies the locating process, requiring minimal training.
Audio Alerts: 85 dBA speaker with different pitches for modes.

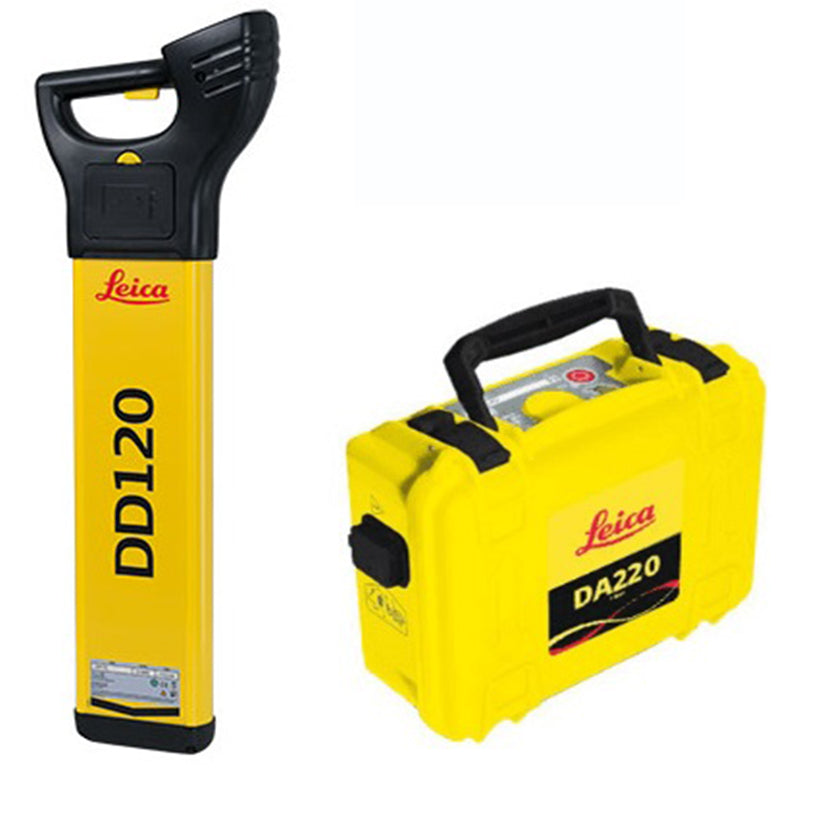

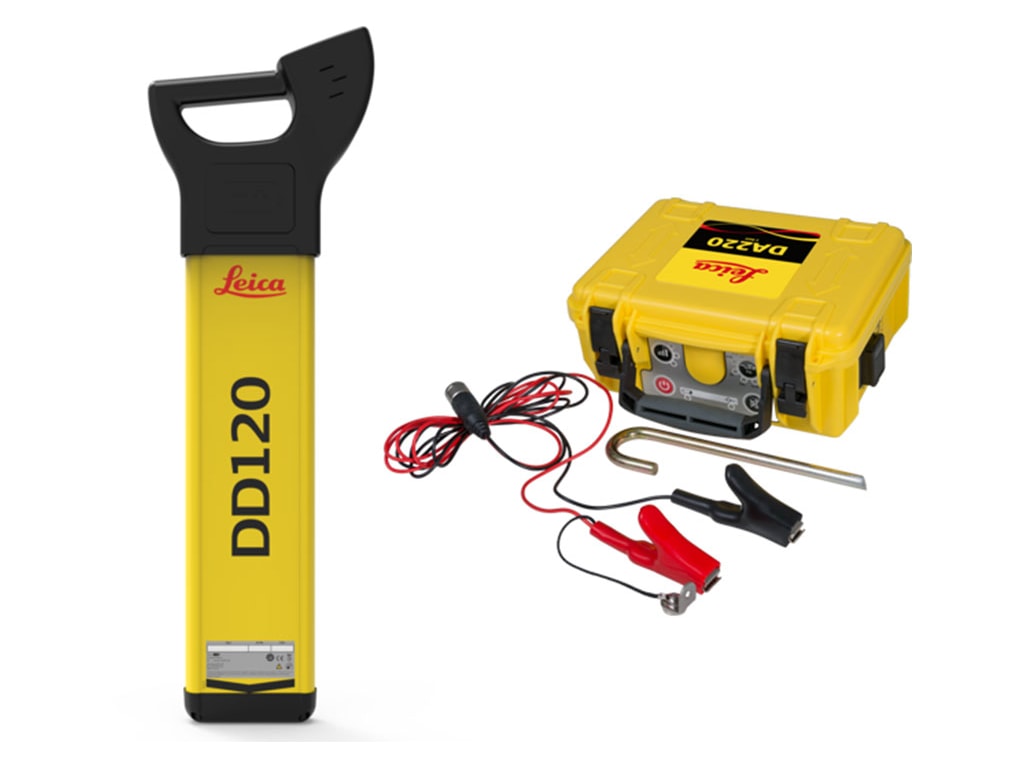

Compatible Accessories: Works with DA220 1-Watt signal transmitters and sondes.
Display: Monochrome LCD.
