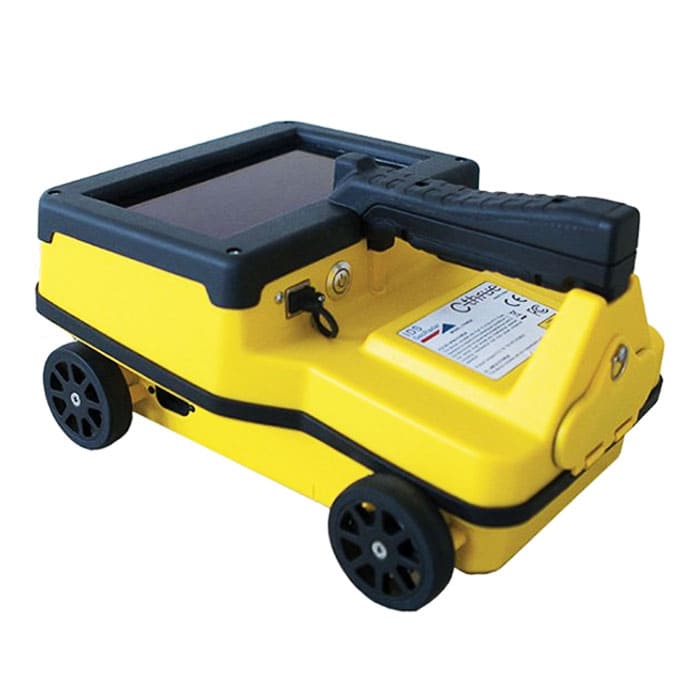

The Leica IDS C-Thrue Concrete Scanner is a, lightweight (2.4 kg) 2.0 GHz GPR system designed for high-resolution 3D, real-time imaging of concrete structures up to 80 cm deep. It features 4 antennas, "Virtual Pad" positioning, 32 GB storage, and an integrated EM sensor for live conduit detection, ideal for identifying rebar, voids, and cables.
Key Technical Specifications:
Antenna Frequency: 2.0 GHz (4 antennas)
Depth Range: Up to 80 cm (31.5 in)

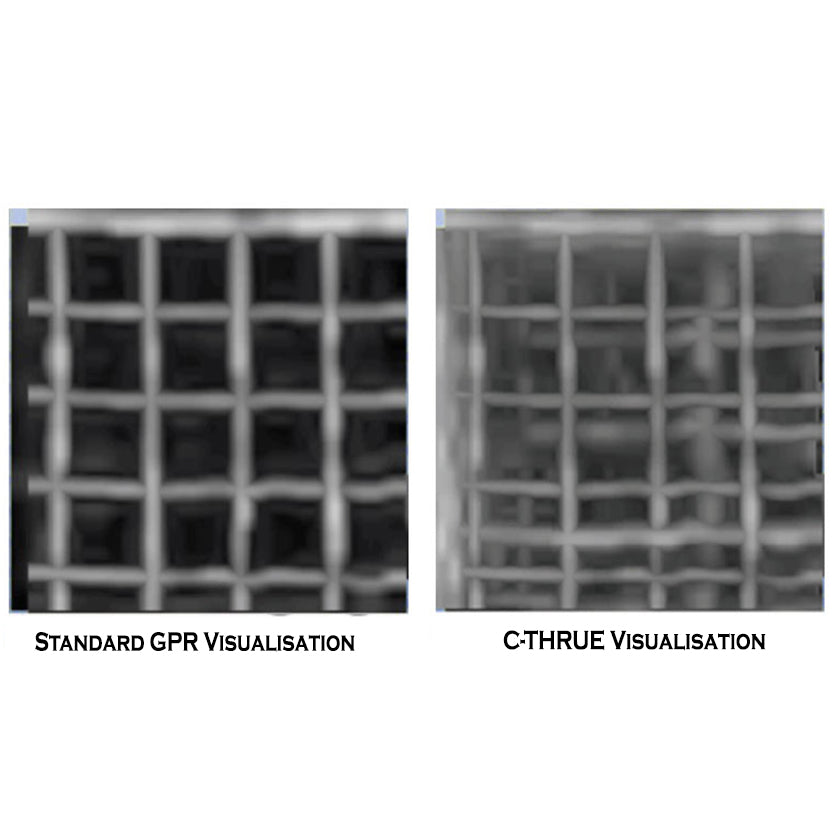

Imaging Modes: B-scan and C-scan (radar tomography)
Positioning System: "Virtual Pad" (3 high-safety Class 1 laser sensors)
Object Detection: Rebar, voids, conduits (including AC power via integrated EM sensor)
Scan Interval: Up to 10 scans/cm
Weight: 2.4 kg (5 lb) with battery
Dimensions: 285mm x 200mm x 160mm
Display: 7-inch TFT multi-touch
Battery: Li-ion 15V, 3.2Ah (approx. 3-hour runtime)
Data Connectivity: Wi-Fi, USB
Key Features:
Real-time Visualization: Instant, 3D data display.
Automatic Data Processing: Automatic first layer rebar detection.
Dual Polarization: Horizontal and Vertical for improved detection.
Portability: Compact and easy to transport for site use.
The C-Thrue scanner is designed for structural inspection, providing, rapid, and precise. data to prevent damage during drilling or cutting operations.
