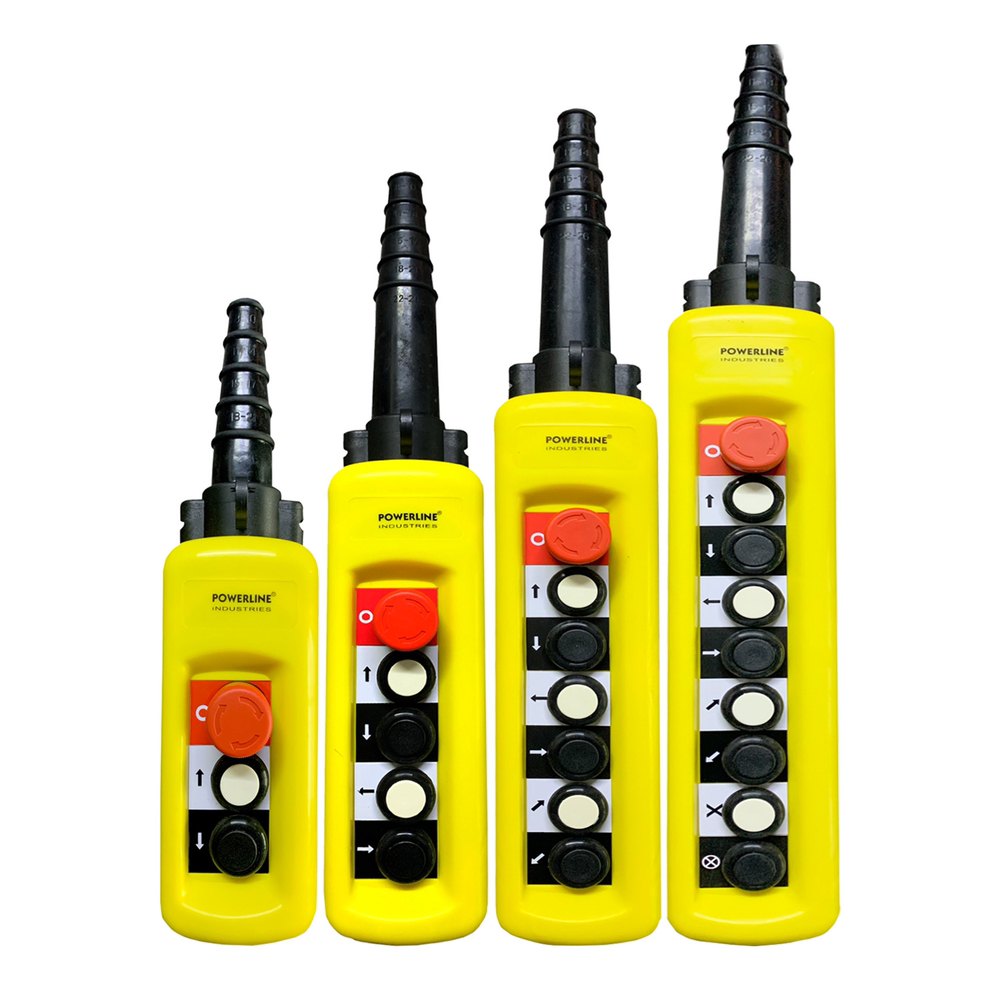

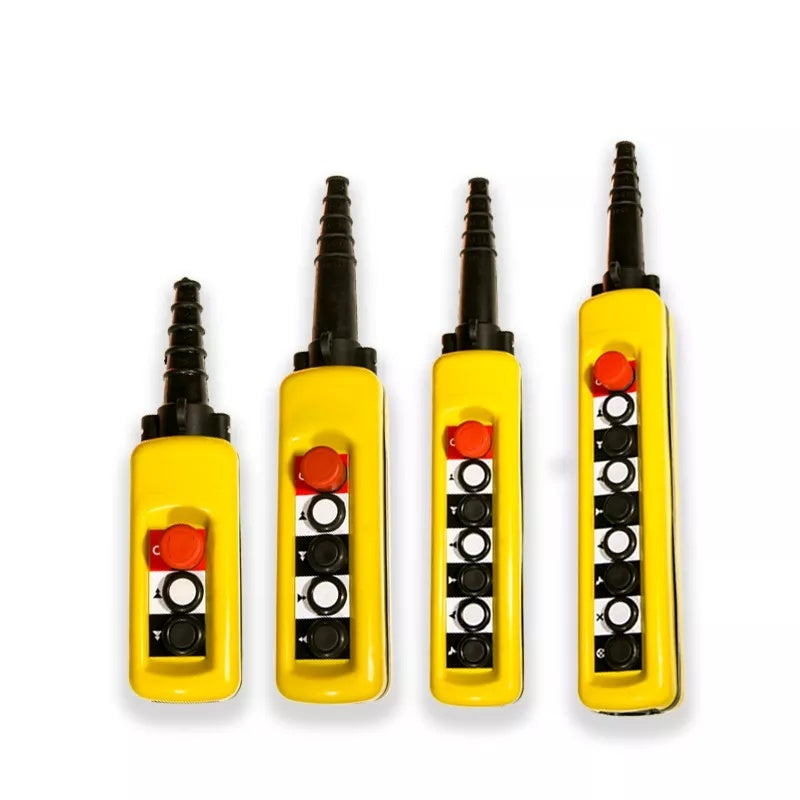

Pendant push button stations are rugged, hand-held, or cable-suspended control devices, typically IP65-rated (dust-tight and water-resistant) for operating hoists, cranes, and industrial machinery. They feature 2 to 14+ thermoplastic buttons, often in yellow, with emergency stop mushrooms, 10A-16A thermal current, and 250V-600V AC voltage capacity, designed to ISO 13850 and IEC 60947-5-1 standards.
Key Technical Specifications Protection Rating: Typically IP65, NEMA 1, 3, 4, 4x, or 13, ensuring protection against dust and water jets.Enclosure: Double-insulated, yellow polypropylene or ABS thermoplastic for high impact resistance.Voltage/Current Rating: Usually rated for 250V-600V AC and 10A-16A conventional thermal current.
Button Configuration: 2-button (single/two-speed) up to 14-button layouts for hoist (Up/Down), travel (Left/Right), and auxiliary functions.Safety Features: Includes a prominent red, self-latching emergency stop mushroom button (EN ISO 13850 compliant) and mechanical interlocking between opposite motions (e.g., Up/Down) to prevent simultaneous operation.Operating Temperature: Generally suitable for harsh environments.
Electrical Life: High durability, often up to 1 million cycles. Common Standards IEC/EN 60947-5-1: Low-voltage switchgear and control gear.IEC/EN 60204-32: Safety of machinery regarding hoist requirements.CSA C22.2 No 14: Industrial control equipment.UL 508: Standard for industrial control equipment. Typical Applications Overhead crane and monorail control.Hoists, winches, and lifting platforms.Conveyor system control.Industrial machine control.
