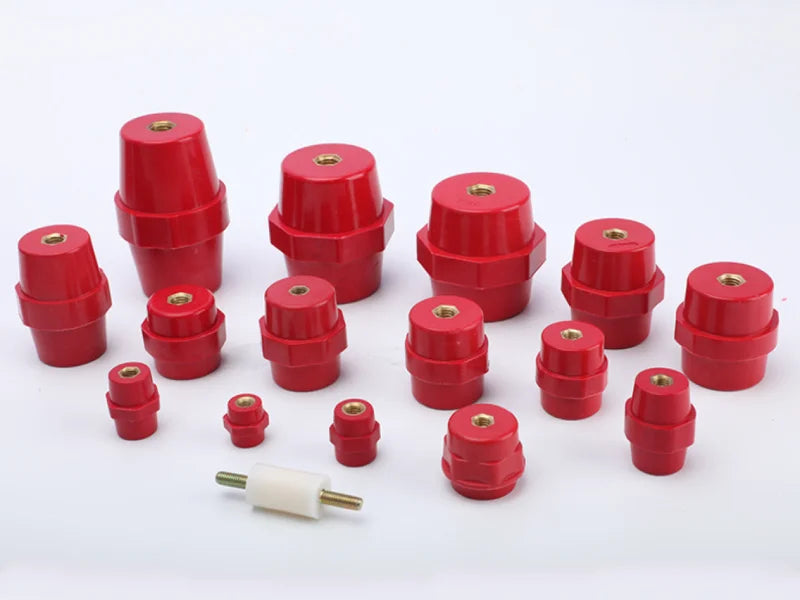

Busbar insulator specifications focus on voltage rating, mechanical strength, material (porcelain, polymer, etc.), dimensions, temperature/environmental resistance, and short-circuit current capacity (Icc), ensuring safe support for electrical busbars in distribution panels and substations, with key metrics like creepage distance, dielectric strength, and compliance with standards like UL94 for self-extinguishing properties.
Key Specification Categories
Electrical Properties:
Rated Voltage (Un): Maximum voltage (e.g., 1000V AC/1500V DC) the insulator can safely withstand.
Withstand Voltage: Test voltages (e.g., 1-minute AC, impulse) to check dielectric strength.
Creepage Distance / Arc Distance: Minimum distance along the surface for insulation, critical for preventing flashover.
Insulation Resistance: High resistance (e.g., >1500MΩ) to prevent leakage.
Mechanical Properties:
Tensile/Compressive/Flexural Strength: Load-bearing capacity against pulling, crushing, or bending.
Short-Circuit Current (Icc): Ability to withstand fault currents (e.g., up to 50kA, 80kA).
Tightening Torque: Maximum torque for fastening screws.
Material & Environmental:
Material Type: Porcelain, Glass, Epoxy Resin, Glass Reinforced Polyester (GRP), BMC (Bulk Molding Compound).
Fire/Self-Extinguishing: UL94 V0 rating for self-extinguishing in case of fire.
Operating Temperature: Range from low to high (e.g., -40°C to +130°C).
UV/Pollution Resistance: Important for outdoor or dirty environments.
Physical & Design:
Dimensions: Height, diameter, shape (cylindrical, hexagonal).
Mounting: Threaded inserts (M6, M8, M10) for busbar attachment.
Current Rating (In): Nominal current for the busbar system.
