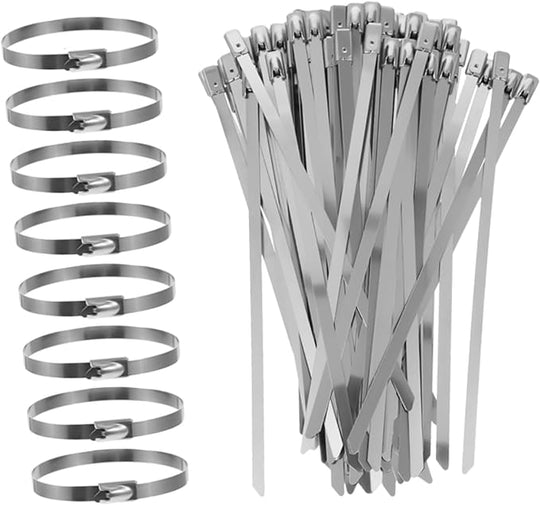

Steel tie fasteners, commonly known as stainless steel cable ties or zip ties, are engineered for high-strength, durable fastening in harsh environments. They are designed for superior performance in high-heat, extreme weather, vibration-prone, and chemically corrosive applications, frequently used in industries like marine, aerospace, construction, and oil/gas.
Core Specifications
Material: Primarily 304 or 316-grade stainless steel.
316 Grade (Marine Grade): Offers superior corrosion resistance, ideal for salt water and harsh chemical environments.
304 Grade: Provides excellent corrosion resistance for general, industrial, and outdoor use.
Operating Temperature: Generally, these ties withstand extreme temperatures ranging from -80°C to +538°C (-112°F to 1000°F).
Tensile Strength (Loop Strength):
Standard Width (4.6 mm): Approximately 100 lbs (45 kg) to 200 lbs (90 kg).
Heavy Duty (7.9 mm - 12 mm): 250 lbs (113 kg) to over 450 lbs (200 kg).

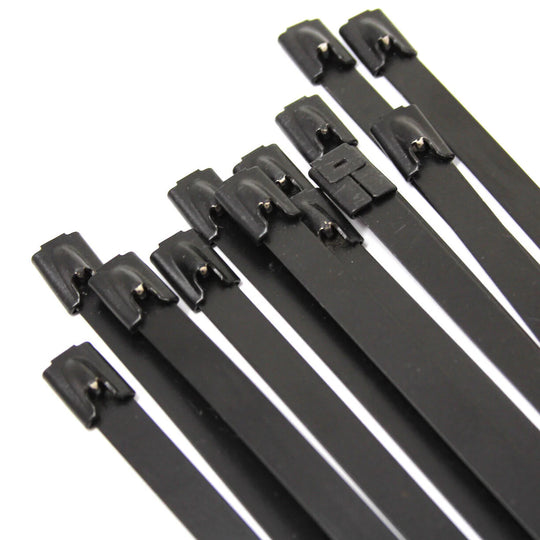

Coating Options: Uncoated (bare stainless) or coated (Polyester or PPA 571) for enhanced protection of cable insulation and resistance to environmental factors.
Mechanism: Most feature a rolling ball self-locking mechanism for smooth, rapid, and secure installation that cannot be separated after fastening.
Dimensions
Widths: Ranging from 4.6 mm (standard) to 7.9 mm and 12 mm (heavy-duty).
Lengths: Ranging from 100 mm (4 inches) up to 1000 mm (39 inches) or more.
Thickness: Generally between 0.25 mm and 0.35 mm.
Performance Features
UV Resistance: High resistance to ultraviolet light, suitable for long-term outdoor use.
Fire Resistance: Non-burning and non-flammable.
Rounded Edges: Designed with smooth, rounded edges for safer handling and to prevent damage to cable insulation.
Standards Compliance: Often compliant with RoHS, CE, and marine standards like DNV and ABS.
Installation Tools

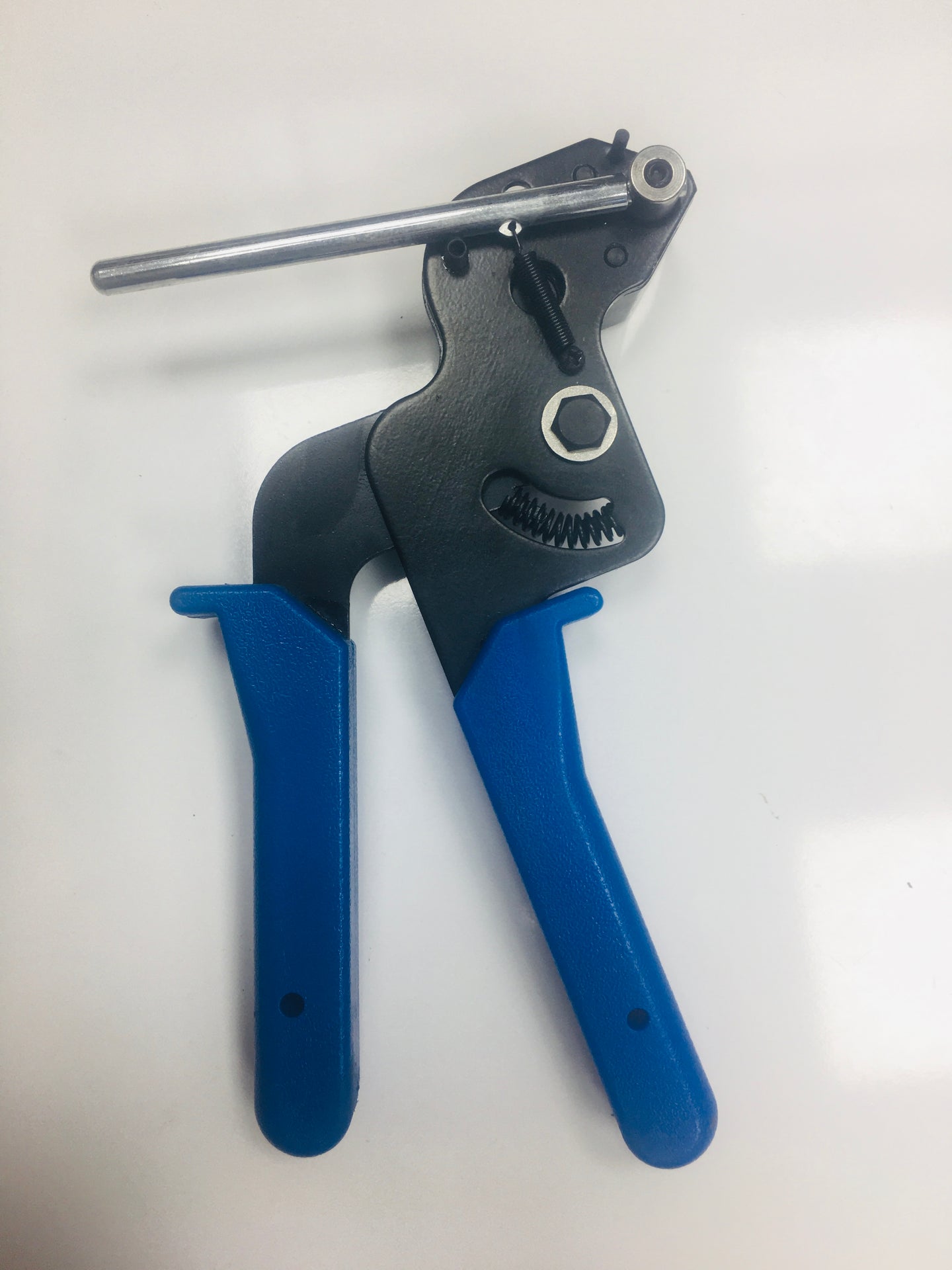

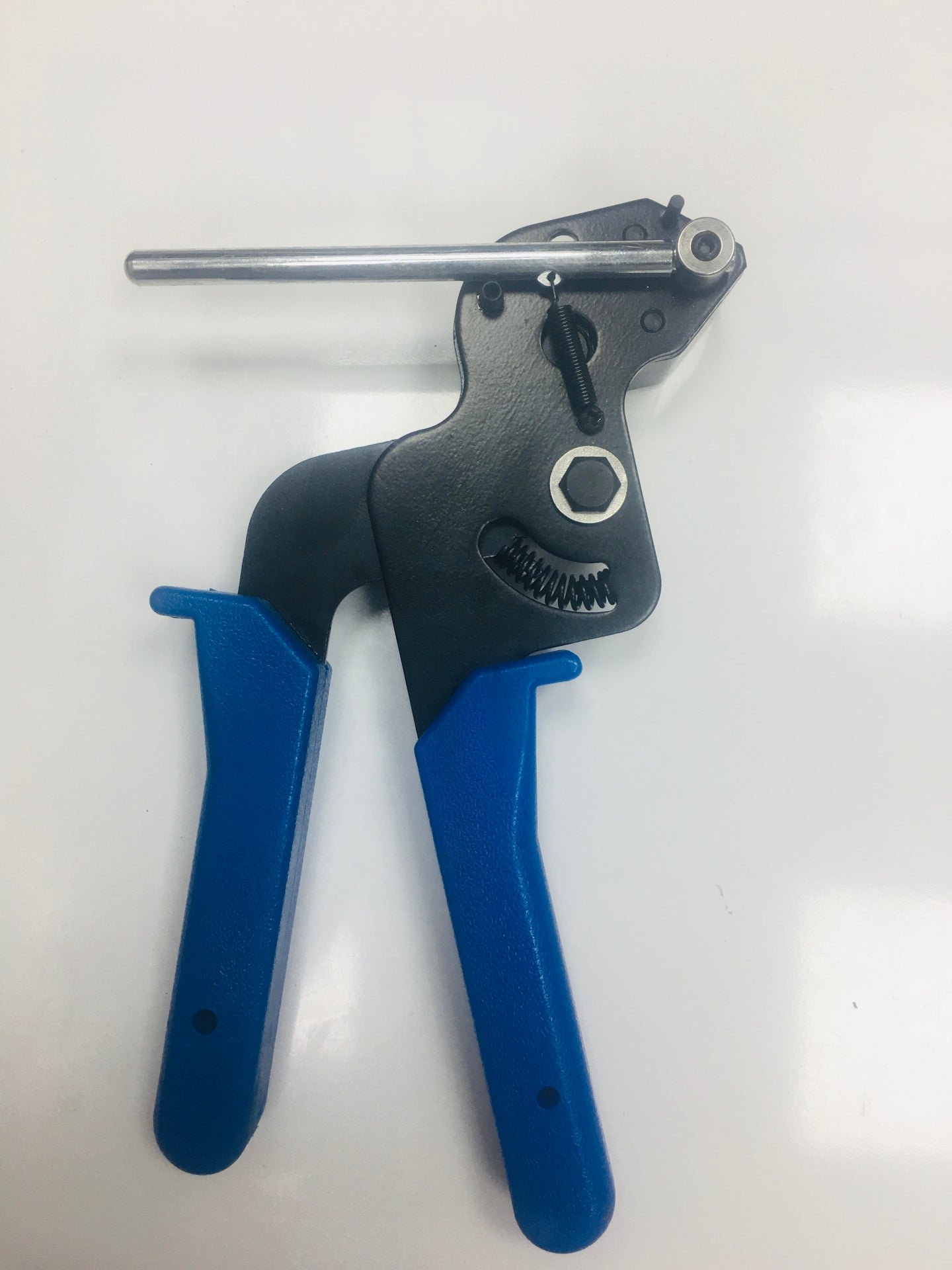

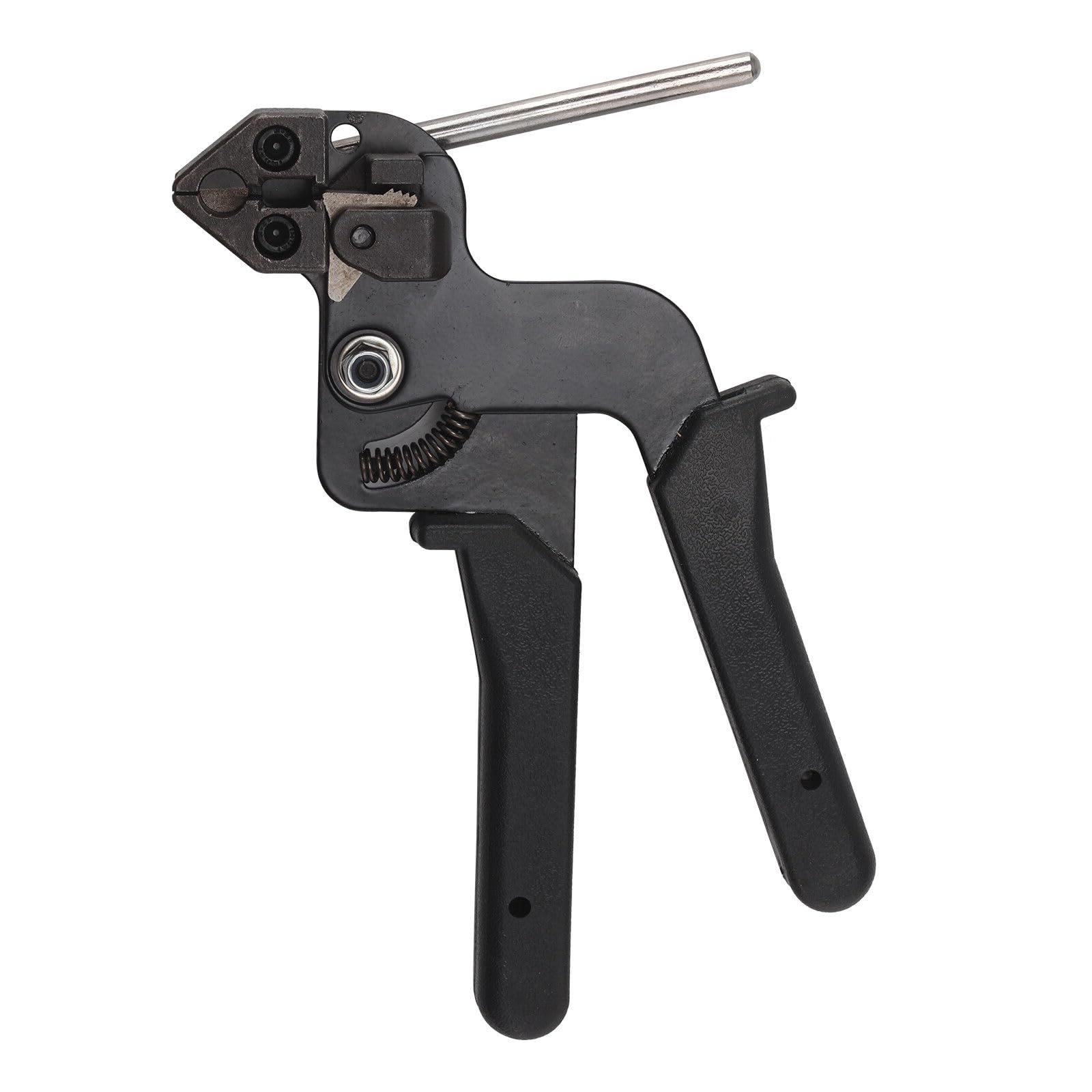

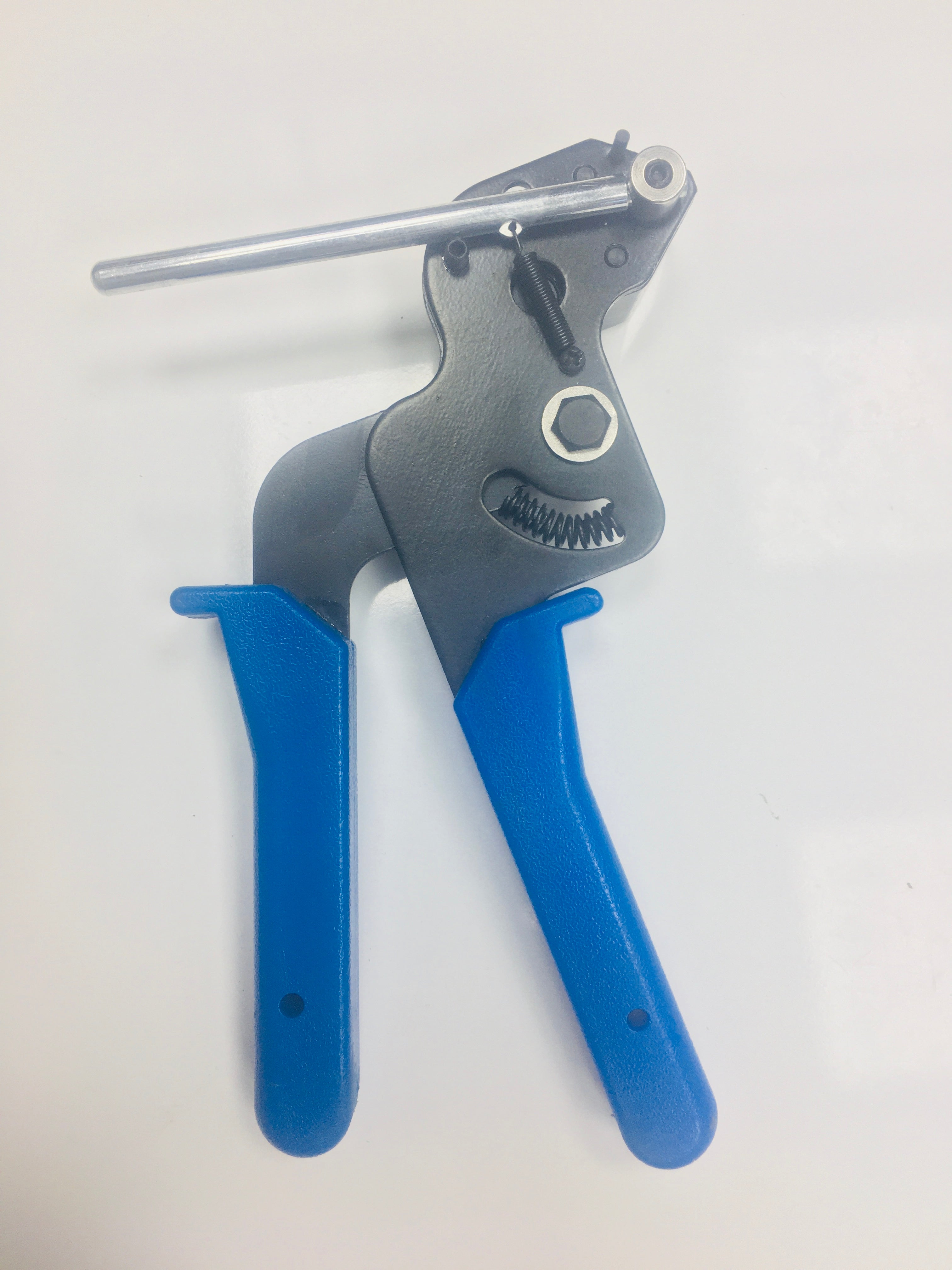

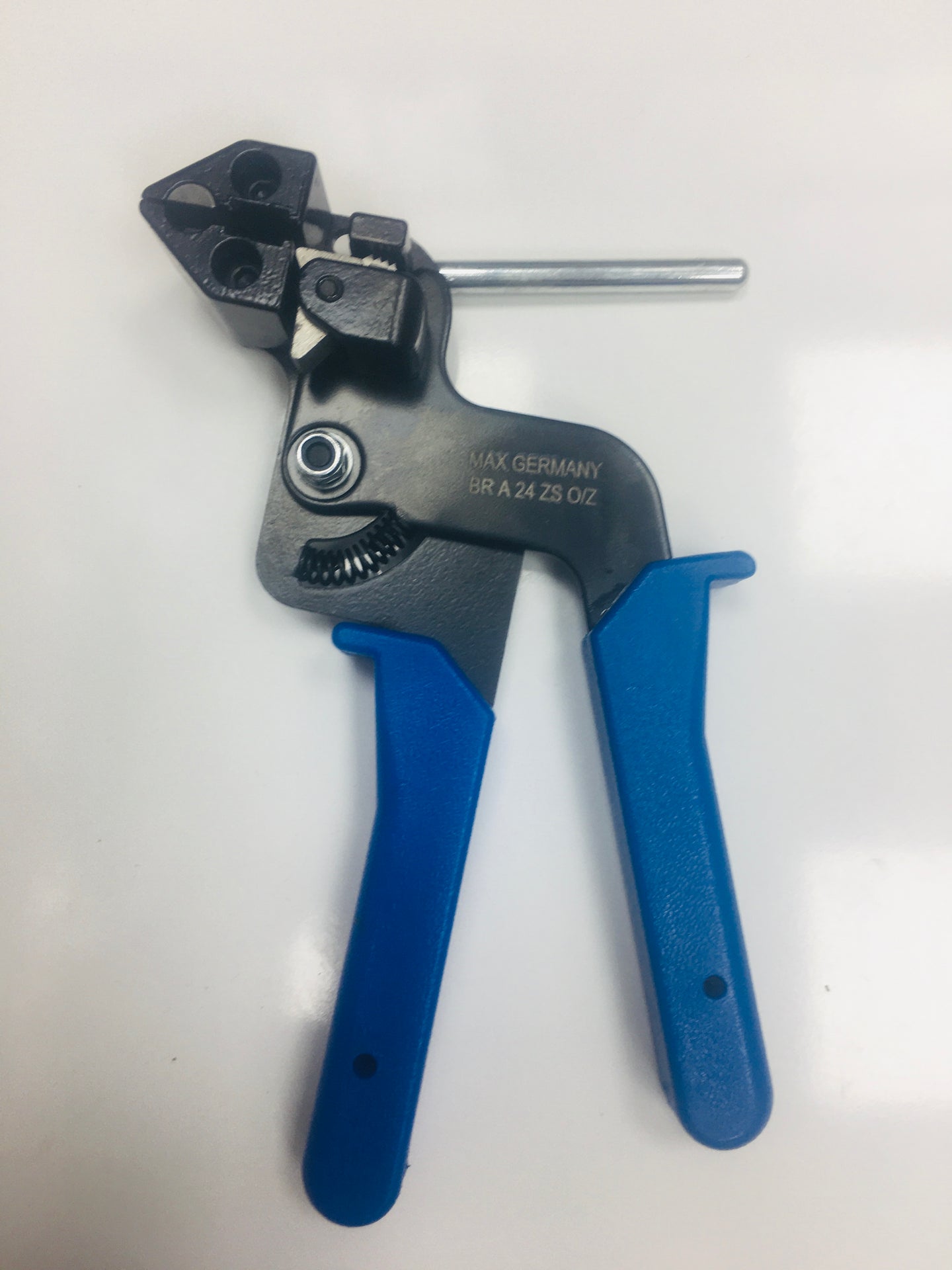

Stainless steel ties are best applied using dedicated tensioning tools (e.g., SKD11 or 65 Manganese Steel cutters) to ensure consistent, tight, and flush cuts without sharp edges. These tools are suitable for widths up to 12 mm and thicknesses up to 0.3 mm
