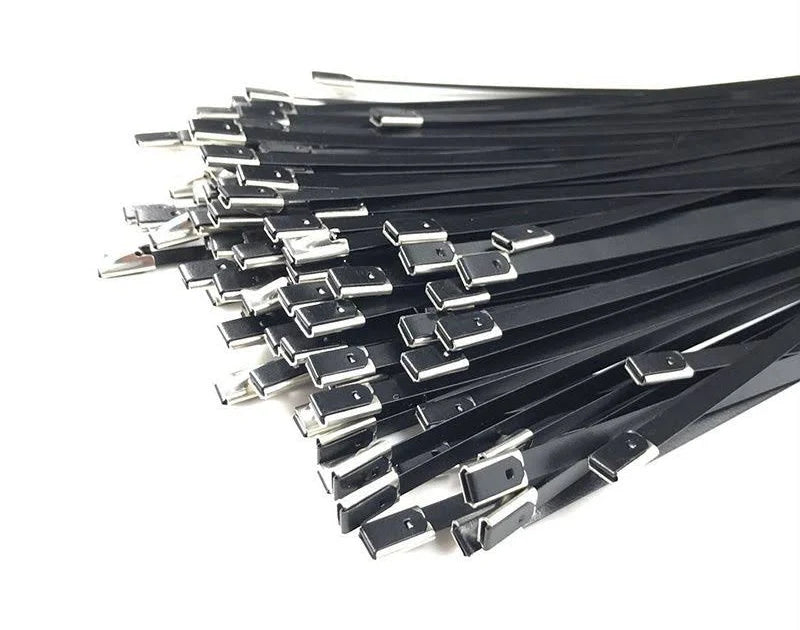

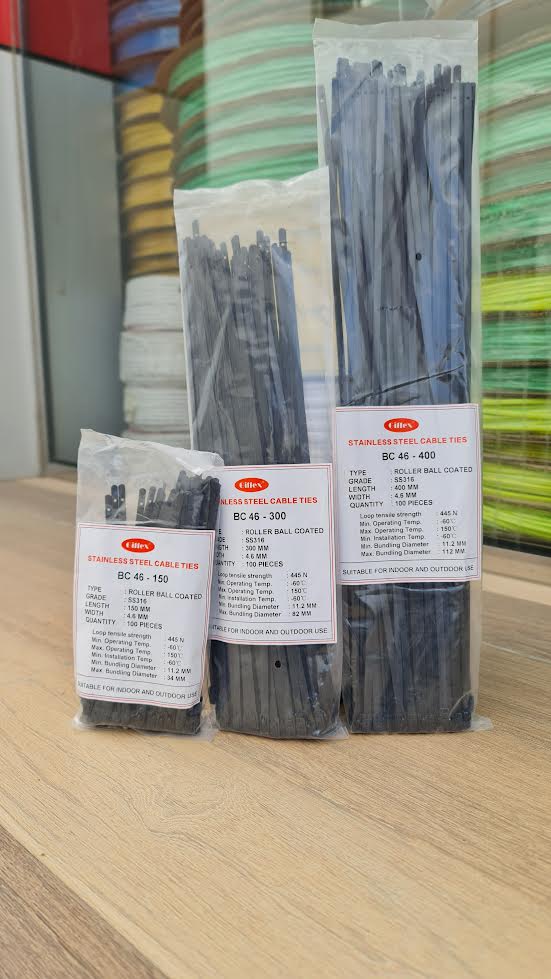

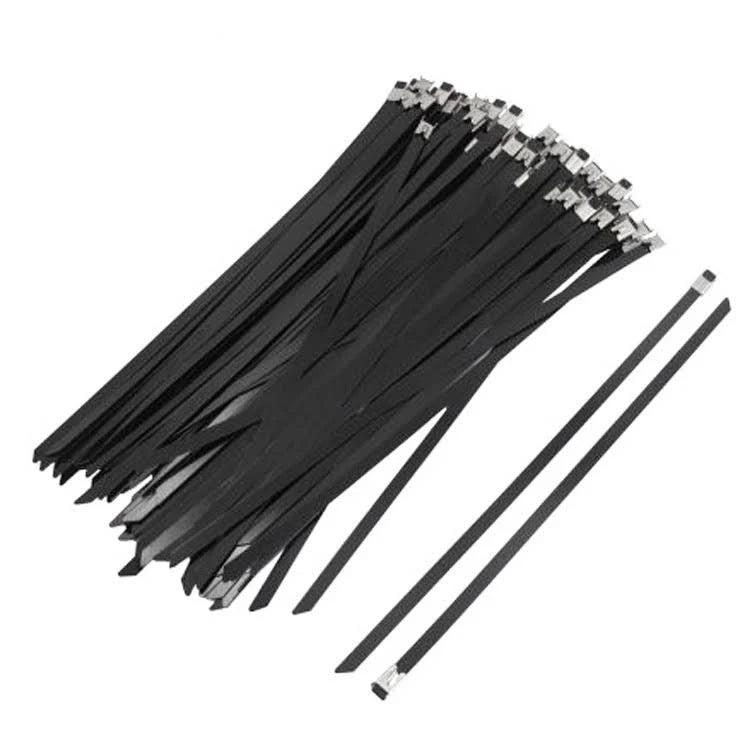

SS (Stainless Steel) Coated Cable Ties specs include material (SS304/316), coating (PVC, Polyester, PPA), dimensions (Length/Width/Max Bundle Dia.), temperature range (-80°C to +150°C/500°C), tensile strength (e.g., 48kg/107N+), and features like UV/Chemical Resistance, often used in harsh industrial, marine, or outdoor settings for secure bundling.
Key Specifications:
Material (Core): Typically Stainless Steel 304 or 316 (316 offers superior marine/saltwater resistance).
Coating Material:
PVC: Common, good for general use, smooth finish.
Polyester (PPA/Epoxy): Better UV resistance, flexibility at low temps, excellent for outdoors.
Dimensions: Varies widely (e.g., 100mm x 4.6mm, 360mm x 4.6mm, up to 457mm x 9.53mm).
Temperature Range: Broad, often -40°C to +150°C or even -80°C to +500°C (uncoated), depending on coating.
Tensile Strength (Loop): Varies by size, often 48 kg (107 N) for standard sizes, higher for heavy-duty.

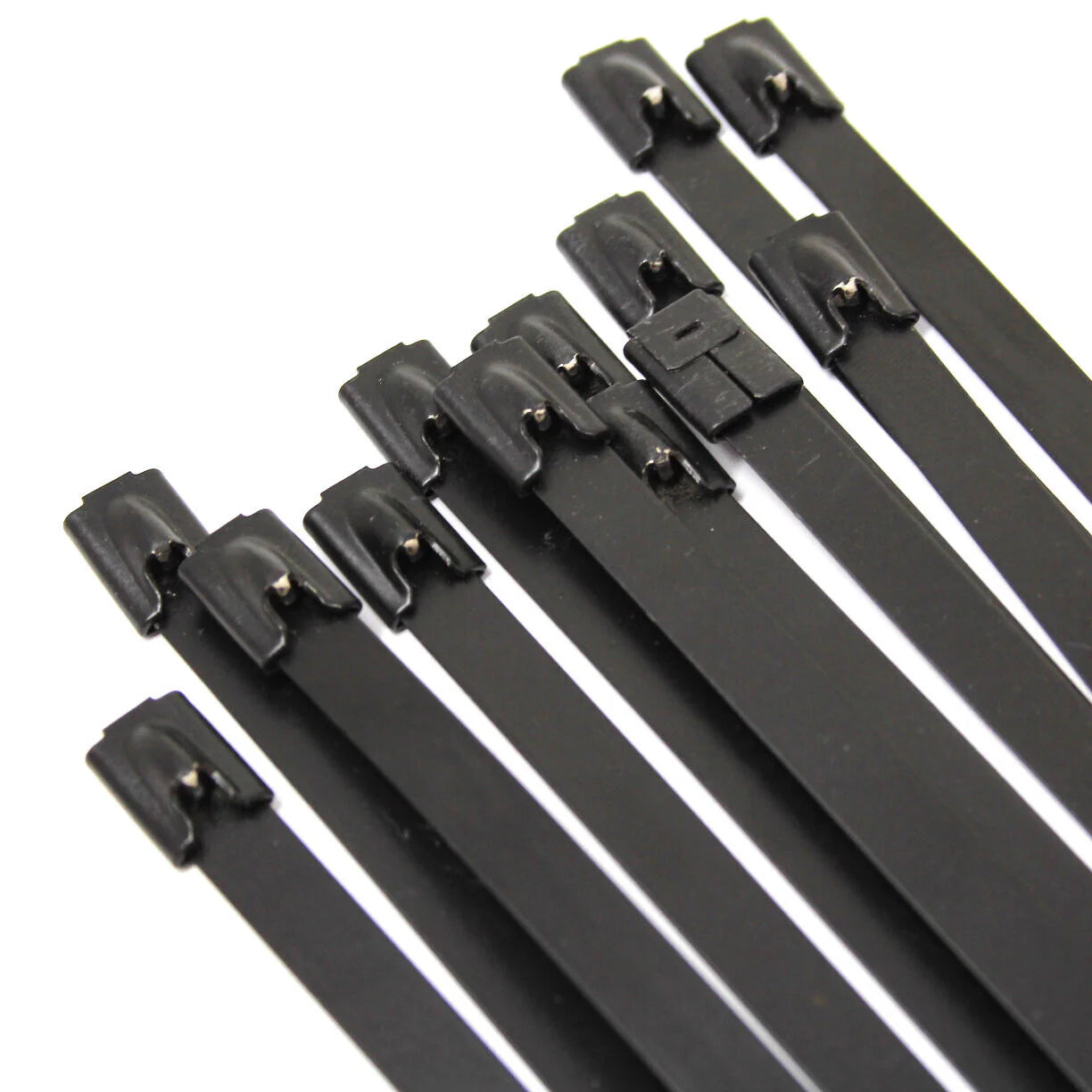

Locking Mechanism: Self-locking ball-type, offering secure, tamper-resistant fastening.
Key Features:
Corrosion & Chemical Resistance: Essential for hostile environments (offshore, industrial).
UV Resistance: Polyester coatings excel here for outdoor use.
Halogen-Free: Important for flame retardant and non-toxic requirements.
High Insulation: Coating provides electrical insulation.
Applications: Electrical installations, automotive, marine, heavy industry, underground, hazardous areas.
