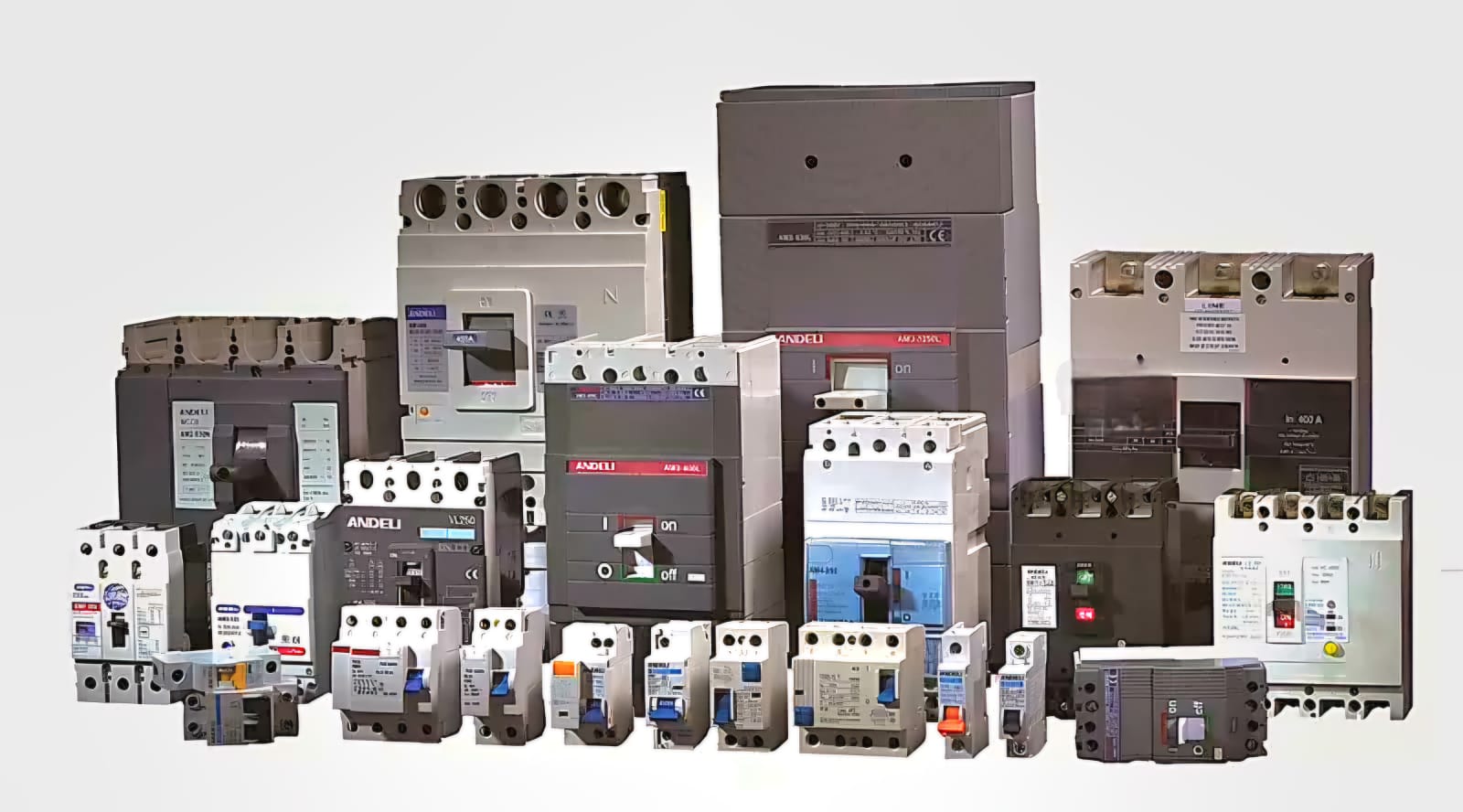

Molded Case Circuit Breakers (MCCBs) are essential electrical protection devices used in various industrial, commercial, and residential applications. They provide overcurrent, short-circuit, and sometimes earth fault protection for electrical circuits.
1. Industrial Applications:
MCCBs are widely used in industrial settings due to their high breaking capacity and durability.
a) Motor Protection:
- Used to protect motors from overloads and short circuits.
- Adjustable thermal and magnetic trip settings allow customization based on motor specifications.
- Common in conveyor systems, pumps, compressors, and CNC machines.
b) Transformer Protection:
- Safeguard transformers against overcurrent and short circuits.
- Used in distribution panels and substations.
c) Welding Machines & Heavy Machinery:
- Protect welding equipment from electrical faults due to high inrush currents.
- Used in manufacturing plants, steel industries, and fabrication units.
d) Power Distribution Panels:
- Installed in Main Distribution Boards (MDBs) and Sub-Distribution Boards (SDBs).
- Protect feeders and branch circuits in factories and plants.
e) Solar Power Systems:
- Used in solar inverters and DC combiner boxes for overcurrent protection.
- Protect photovoltaic (PV) systems from reverse current and short circuits.
---
2. Commercial Applications:
MCCBs are used in commercial buildings to ensure electrical safety and reliability.
a) Shopping Malls & Office Buildings:
- Installed in electrical panels to protect lighting, HVAC systems, and elevators.
- Prevent electrical fires due to overloads.
b) Data Centers & Server Rooms:
- Protect critical IT infrastructure from power surges and short circuits.
- Ensure uninterrupted power supply (UPS) protection.
c) Hotels & Hospitals:
- Used in emergency power systems and backup generators.
- Ensure safety in life-support systems and medical equipment.
---
3. Residential Applications:
While MCBs (Miniature Circuit Breakers) are more common in homes, MCCBs are used in larger residential setups.
a) High-Rise Buildings & Apartments:
- Protect main supply lines and distribution boards.
- Used in elevators and centralized air conditioning systems.
b) Large Villas & Bungalows:
- Safeguard heavy-load appliances like water heaters and swimming pool pumps.
4. Marine & Offshore Applications:
- Used in shipboard electrical systems to protect against saltwater corrosion and vibrations.
- Installed in offshore oil rigs and submarine power systems.
5. Renewable Energy Systems:
- Wind Turbines: Protect generators and converters from electrical faults.
- Battery Storage Systems: Prevent overcurrent in lithium-ion and lead-acid battery banks.
6. Mining & Heavy-Duty Applications:
- Used in mining equipment due to their rugged construction.
- Protect crushers, excavators, and drilling machines from electrical faults.
Advantages of MCCBs in These Applications:
High Breaking Capacity: Can interrupt high fault currents (up to 200kA).
Adjustable Trip Settings: Customizable for different load requirements.
Durability: Resistant to environmental factors like dust and moisture.
Modular Design: Can be used with shunt trips, undervoltage releases, and auxiliary contacts.
Conclusion:
MCCBs are versatile protection devices used across industries, commercial buildings, and large residential complexes. Their ability to handle high currents, customizable settings, and robust construction make them indispensable in modern electrical systems.
